9SD-RED 20 / SD-RED 60
Operating Instructions
Rackmount
To mount the SD-RED appliance to a rack (1U), you need the model specific
rackmounting kit, which is available as an option from your Sophos partner.
Please note: There are two different rackmounting kits available. Both kits fit
with both models. However, only the SD-RED 60 specific kit provides additional
bracket(s) to hold the desktop-type power adapter(s). These are not included
with the SD-RED 20 specific kit since this model uses wall mount type power
adapters which are directly plugged into the wall outlet or power strip.
Make sure you only use the screws supplied with the rackmount ears. Using the
wrong screws could damage the hardware appliance and would invalidate your
warranty.
In addition to the rackmounting kit contents, you will need a long-handed
Phillips-head screwdriver.

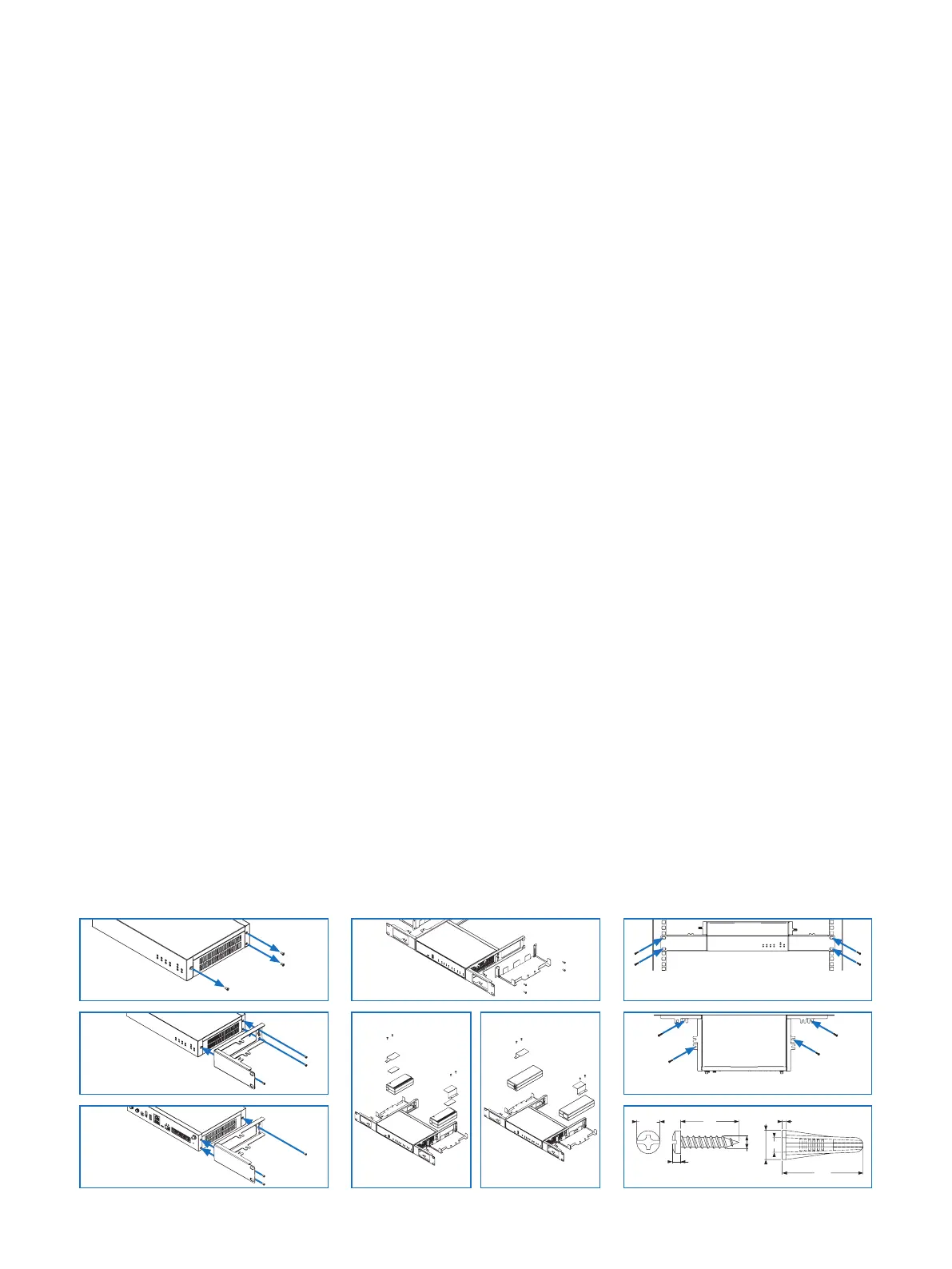

SD-RED 60 mounting instructions
1. Remove existing screws from the
chassis
Remove the three screws from each
side of the chassis.
2. Install the rackmounting kit device
holder to the chassis
Please note: You can mount the unit
into a rack either with the front or with
the back side facing to you (see figures
below). Secure one device holder to
each side of the appliance using three
of the screws included with the box.
3. Install the adapter bracket
Attach the power adapter bracket
either to the left or right side of the
rackmounting kit by using four of
the supplied screws. If you are using
redundant power supplies fix the
second adapter bracket on the other
side.
4. Install the power adapter
Place the adapter(s) on the bracket(s)
The PADs supplied with the rackmount
kit are only needed with SG 105/115
appliance models which use smaller
power adapters (4a).
For SD-RED 60 models a PAD is not
required (4b).
5. Install the unit
You can either install the unit into a
rack (5a) or you can hang the unit on a
wall (5b).
Use appropriate screws (not supplied
with this kit) for this purpose.
For wall mount installation we
recommend using wall plugs and
screws with dimensions shown below
(5c).
LEDs
Ports
1. 3.
4a. 4b.
2a. Front facing installation
2b. Back facing installation
5b. Wallmount installation
5a. Rackmount installation
5c.
ø3.5
16
2.3
ø6.3
22.2
1.0ø8
ø4
