Operating Instructions
1. Install the mounting adapters to
the chassis
Place one adapter on each side at the
bottom of the chassis and secure it
using three of the supplied screws.
2. Mount the chassis to the DIN rail
Hold the chassis to the DIN Rail and
hang it with the fixed parts of the
adapters on one side of the DIN Rail.
Push the chassis towards the DIN Rail
until the flexible part of the adapters
snaps into the DIN Rail.
Make sure the chassis is securely fixed.
3. Removing the chassis from the DIN
rail
To remove the chassis from the rail
just pull it back on the flexible side of
the adapters.

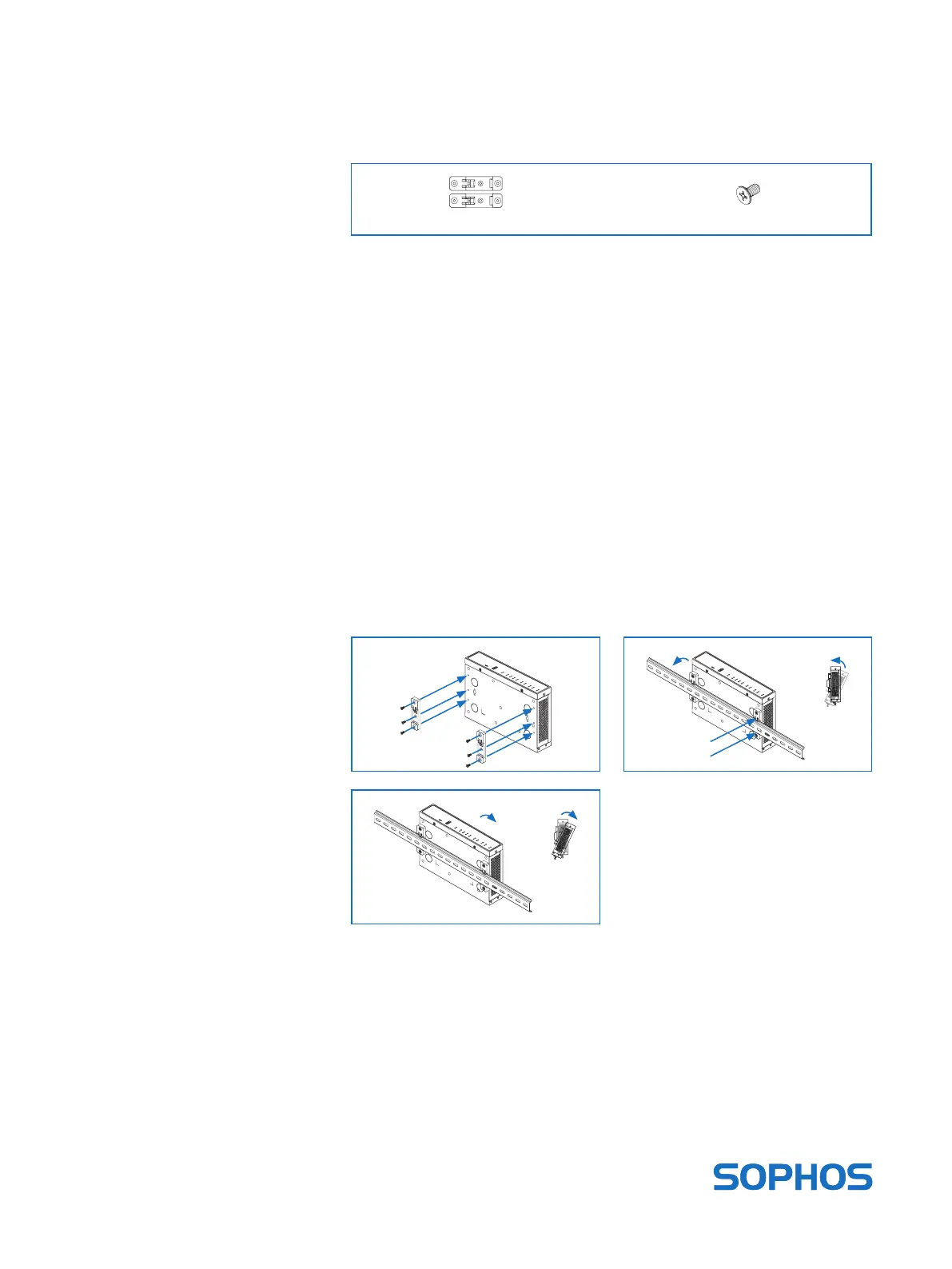

DIN Rail Mount
The DIN rail mounting kit is available as an option from your Sophos partner.
It includes:
In addition to the rackmount kit contents, you will need a long-handed Phillips-
head screwdriver.
6 flat head M3 screws 2 DIN rail mounting adapter
1. 2.
Flexible
Fixed
Push
3.
Pull
