INSTRUCTION AND SERVICE PARTS MANUAL - FREEZER CS 800, s/n F0176-00 - ALFRED & CO
F4

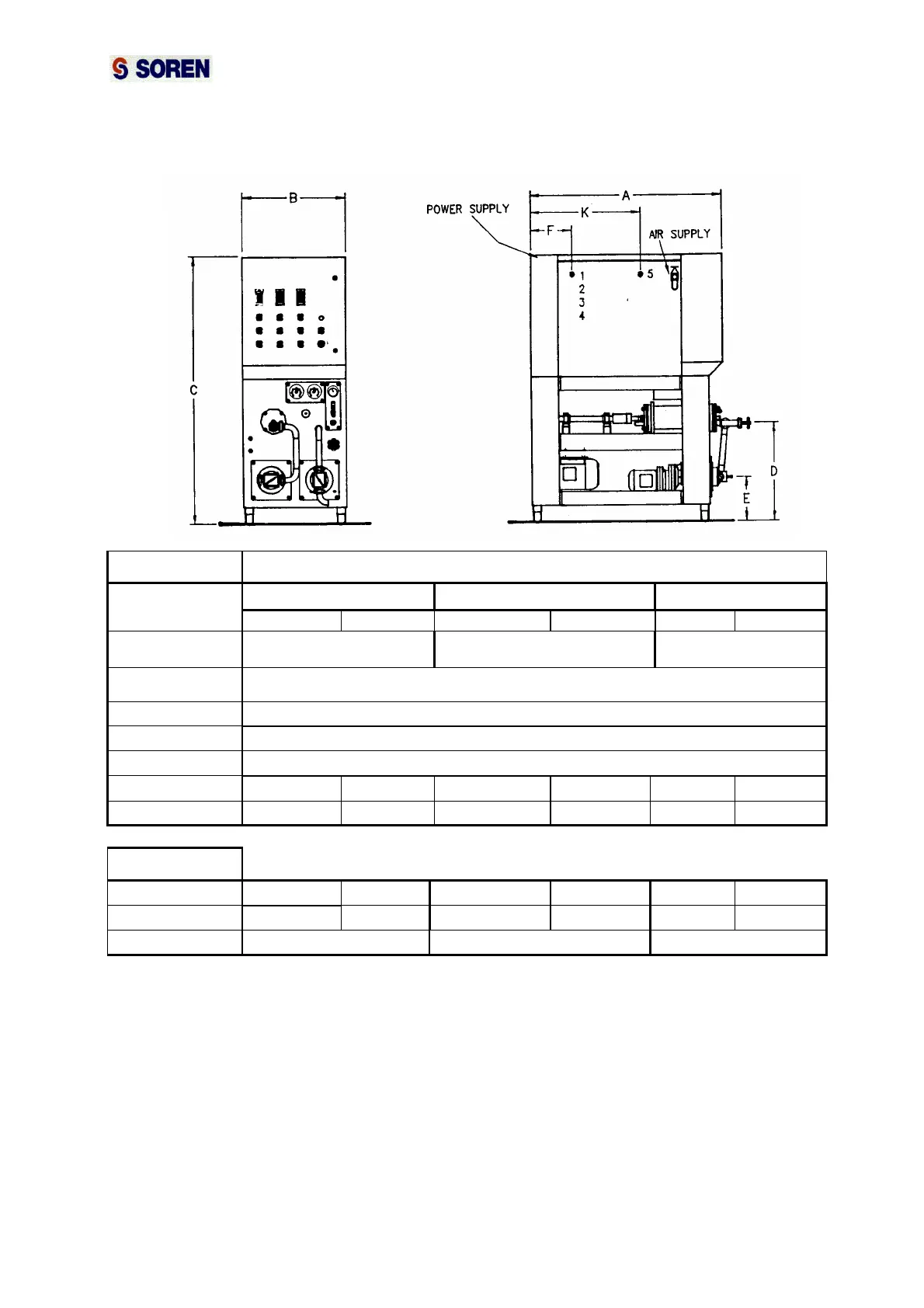

DESCRIPTION OF THE MACCHINE AND SPECIFICATIONS
DIMENSION AND WEIGHT
DIMENSIONS
TYPE
CS 400 CS 800 CS 1100
R404 A AMMONIA R404 A AMMONIA R404 A AMMONIA
A
1300
1700
1950
B 900
C 2000
D 800
E 310
F NA 300 NA 300 NA 300
K (water) 500 NA 600 NA 600 NA
SHIPPING DATA
NET WGT KG 1150 900 1330 1050 1480 1180
GROSS WGT KG 1370 1120 1570 1281 1750 1450
VOLUME m
3
5,00 6,30 7,00
1 - SAFETY RELIEF VALVE - 150 LB. : 1 “. NPT OR WELD CONNECTION
2 - BACK PRESSURE REGULATOR : 2.0 “. WELD CONNECTION
3 - HOT GAS INLET SOLENOID : 1/2 “. NPT OR WELD CONNECTION
4 - LIQUID REFRIGERANT INLET SOLENOID : 1/2 “. NPT OR WELD CONNECTION
5 - COOLING WATER INLET - OUTLET : CS 400: 1” , CS 800 : 1”
1/4
-
1”
1/2
, CS 1100 :1”
NOTE :
. R404 A Freezers have a built-in refrigeration plant.
. AMMONIA Freezers must be connected to an external refrigeration plant
. NA : not applicable
SP000012- 05/11/96
