INSTRUCTION AND SERVICE PARTS MANUAL - FREEZER CS 800, s/n F0176-00 - ALFRED & CO

DESCRIPTION OF THE MACCHINE AND SPECIFICATIONS

DIMENSION AND WEIGHT

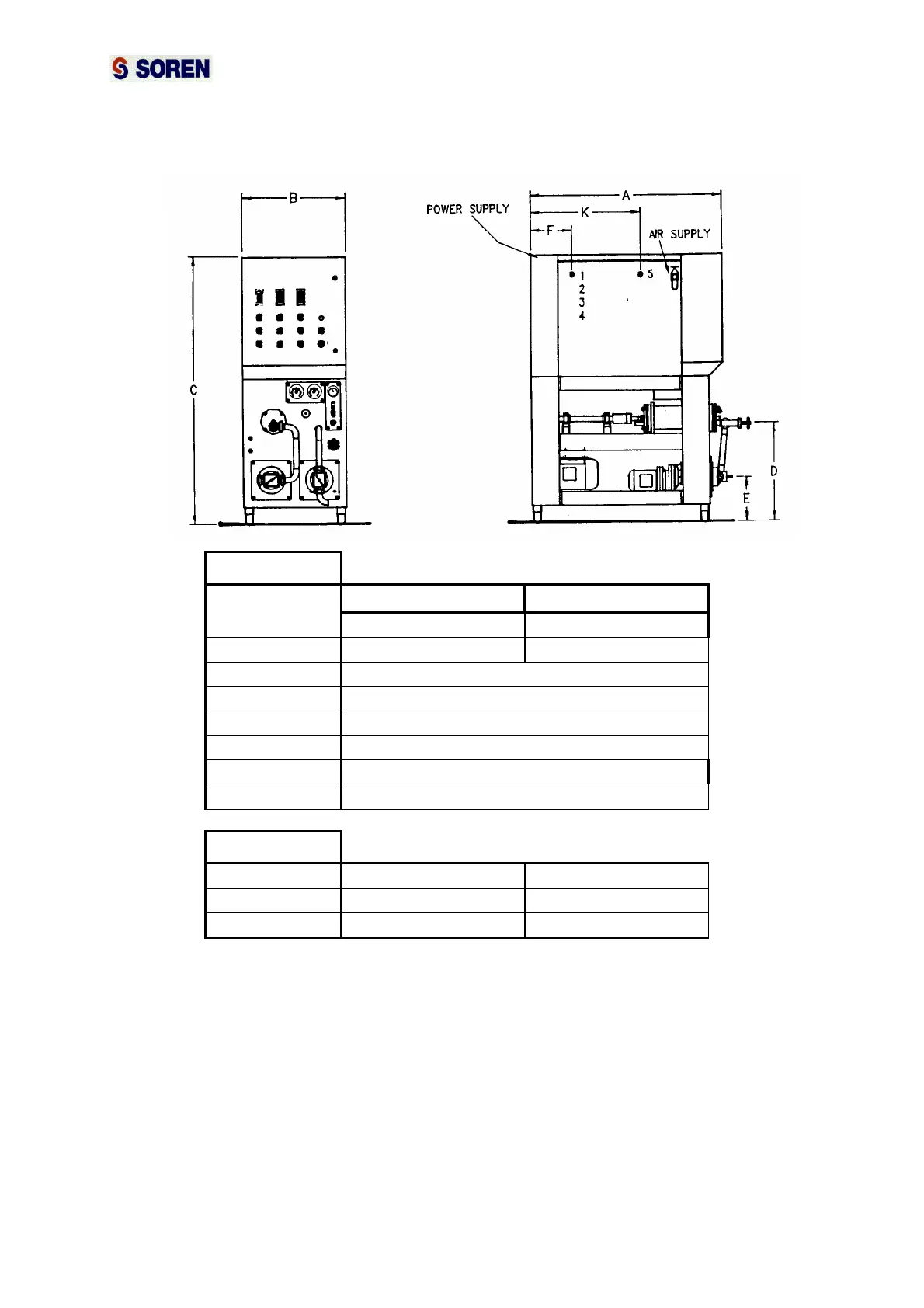

DIMENSIONS

TYPE CS 100 CS 200

R404 A R404 A

A 1200 1400

B 750

C 1970

D 720

E 320

F NA NA

K (water) 500 500

SHIPPING DATA

NET WGT KG

685 790

GROSS WGT KG 855 970

VOLUME m

4,20 4,70

1 - SAFETY RELIEF VALVE - 150 LB. : 1 “. NPT OR WELD CONNECTION

2 - BACK PRESSURE REGULATOR : 2.0 ”. WELD CONNECTION

3 - HOT GAS INLET SOLENOID :

1/2 “. NPT OR WELD CONNECTION

4 - LIQUID REFRIGERANT INLET SOLENOID : 1/2 “. NPT OR WELD CONNECTION

5 - COOLING WATER INLET - OUTLET : CS 100, 200 : 1”

3/4

NOTE :

. R404 A Freezers have a built-in refrigeration plant.

. AMMONIA Freezers must be connected to an external refrigeration plant

. NA : not applicable

SP000011- 05/11/96
