INSTRUCTION AND SERVICE PARTS MANUAL - FREEZER CS 800, s/n F0176-00 - ALFRED & CO
N2
SHAFT SEALS REPLACEMENT
Shaft seals should be replaced monthly or when leaking occurs.

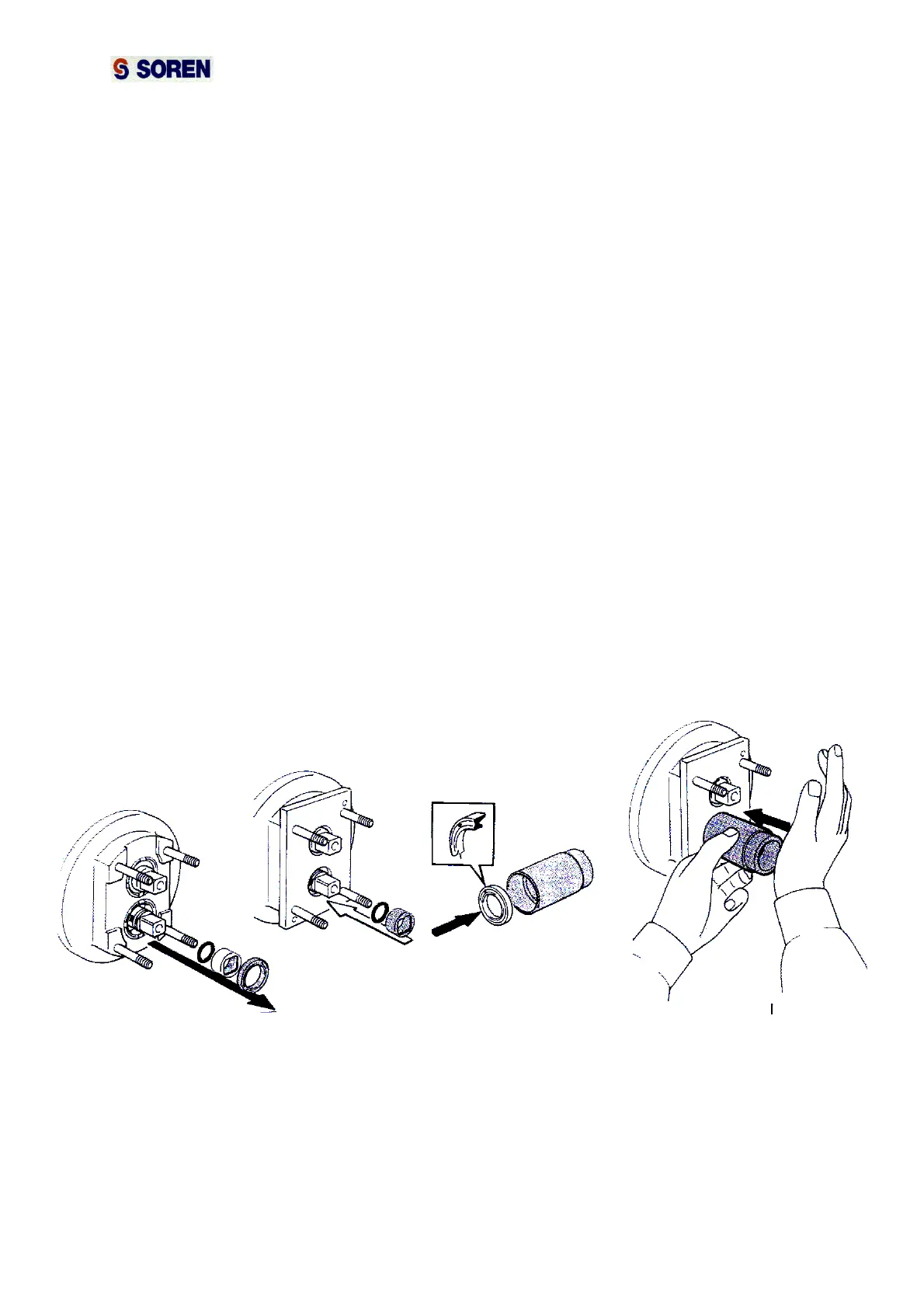

• Remove worn shaft seal.
• Check seal bearing and "O" rings for wear; replace if necessary.
• Use seal inserter to replace shaft seals.
• Lubricate new shaft seal with sanitary lubricant.
• Slide back inside cylinder of seal inserter until recessed 12 mm. (1/2
inch).
• Insert new shaft seal into recessed area of inserter with the color
coded dot facing outwards.
• Slide forward the inner cylinder, bringing seal even with the front rim
of the inserter
• Slide inserter over pump rotor shaft and pump body.
• Push inside cylinder slowly forward against pump body, inserting seal
into its cavity.
• Remove seal inserter.
• Check the newly assembled seal making sure the lips of seal are not
twisted and the lip of seal is even with periphery of the cavity.
