INSTRUCTION AND SERVICE PARTS MANUAL - FREEZER CS 800, s/n F0176-00 - ALFRED & CO
N7
Dasher: the dasher assembly is heavy. This creates a hazard of severe injury for
anyone handling it incorrectly. Provide enough workers or mechanical lifting
assistance to enable removing, installing and servicing the dasher safely.

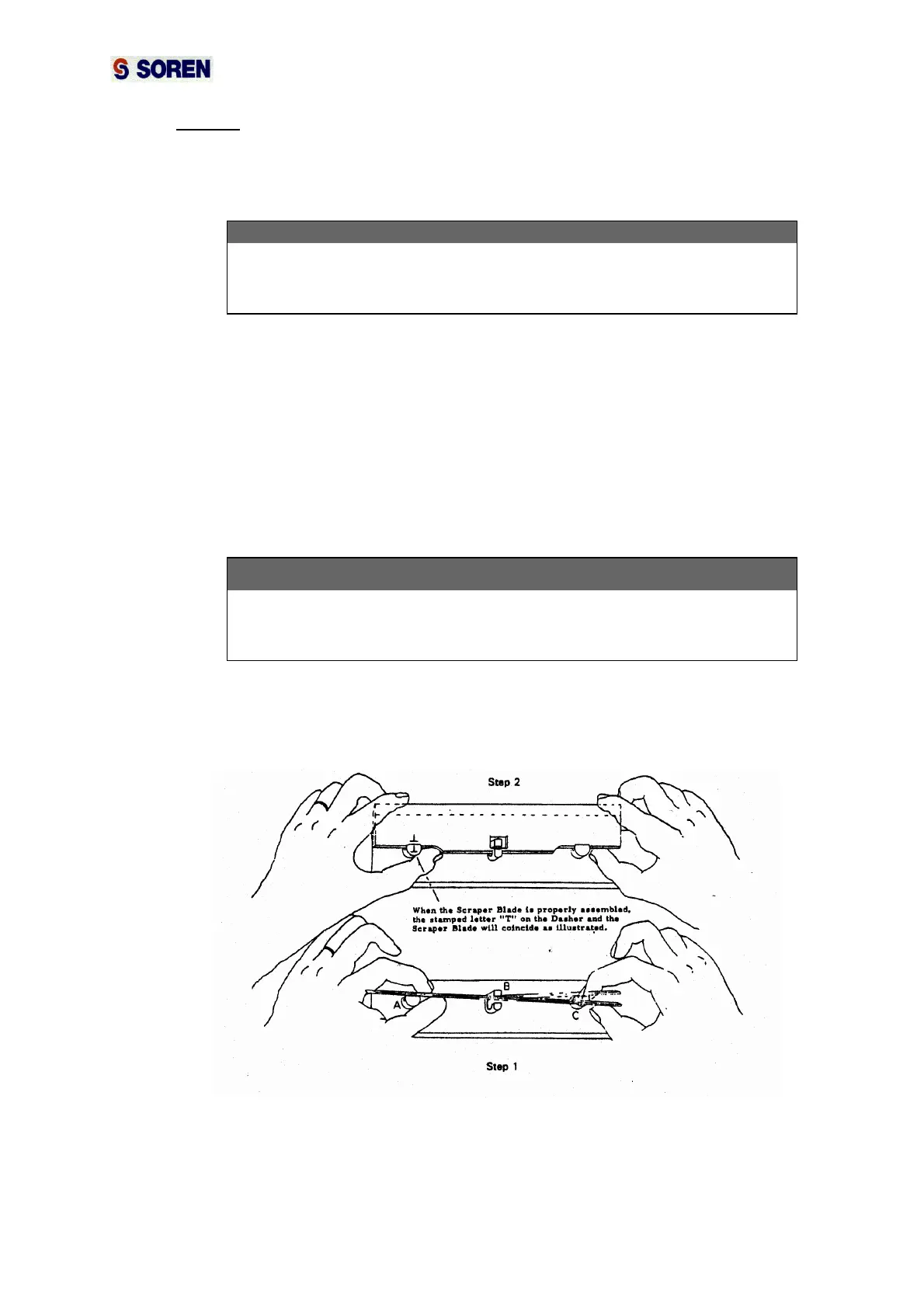

ASSEMBLY OF SCRAPER BLADES ONTO DASHER
DANGER ! !
Scraper blades can be very sharp and cause severe injury if not properly
handled: when installing scraper blades use protective gloves
• Position the blade so that the beveled edge is facing away from you, and
the letter "T" on both the blades and dasher coincide. Referring to step
1,vertically position the blade between pins A and B, making sure that the
square hole in the blade is directly in the centre of pin B. Push the right
side of the blade forward with the thumb of your right hand, bending the
blade enough so that you are able to push the blade down behind pin C.
• Push the blade forward again and, if it has been correctly positioned in pin
B, it will snap into the correct articulate position (step 2).
REMOVAL OF SCRAPER BLADES
DANGER ! !
Scraper blades can be very sharp and cause severe injury if not properly
handled: when removing scraper blades, use protective gloves.
• Tip the blade up so that it is positioned as illustrated in step1.
• Press forward with the right thumb while lifting the right end of the blade up
and away from the dasher.
