ELECTRIC PANEL
BSS-134
CHAP.- 8

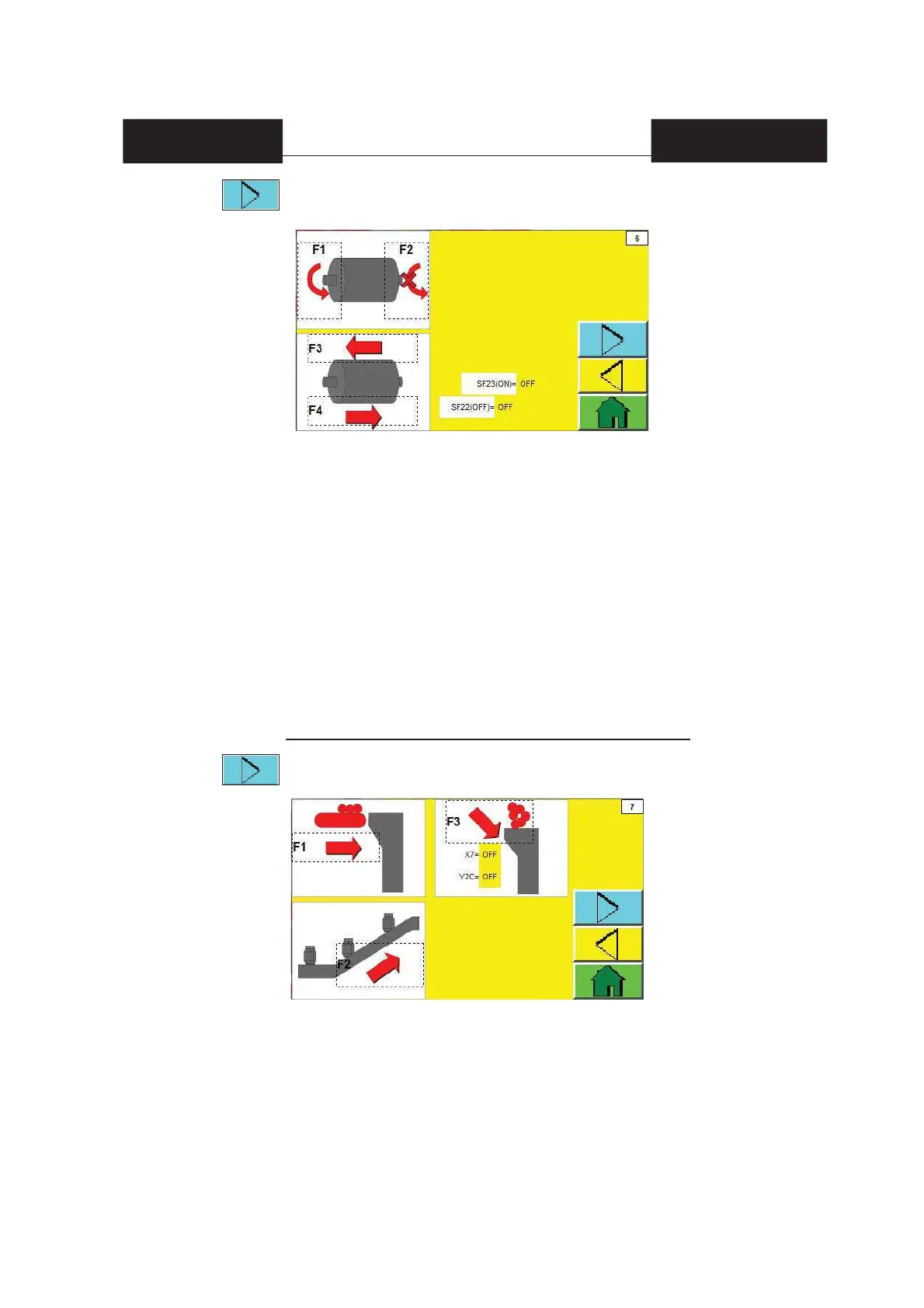

By pressing from page 5, page 6 will appear
F1 = release reel = the mesh or mesh/fi lm reel at the back of the machine is released.
F2 = block reel = the mesh or mesh/fi lm reel at the back of the machine is blocked.
F3 = bobina a Sx = you can move the net/fi lm coil roll to the left.
F4 = bobina a Dx = you can move the net/fi lm coil roll to the right.
SF23(ON) = OFF/ON = viewable fi eld, it indicates the status of the SF23 photocell to centre the reel.
SF22(OFF) = OFF/ON = viewable fi eld, it indicates the status of the SF22 photocell to centre the reel.
When the reel is centrered correctly, SF23 is [ON] and SF22 is [OFF].
F1 = hopper band = the band of the motorised hopper starts (when BSS-134 is fi tted with a motorised
hopper).
F2 = elevator conveyor belt = the elevator conveyor belt is run.
F3 = unload request = an unload request of the upstream machine is carried out.
X7 = OFF/ON = viewable fi eld, when it is [ON] it indicates that the upstream machine has unloaded
the product.
Y2C = OFF/ON = viewable fi eld, when it is [ON] it indicates that the BSS-134 is requesting the product
to the upstream machine.
By pressing from page 6, page 7 will appear
