15

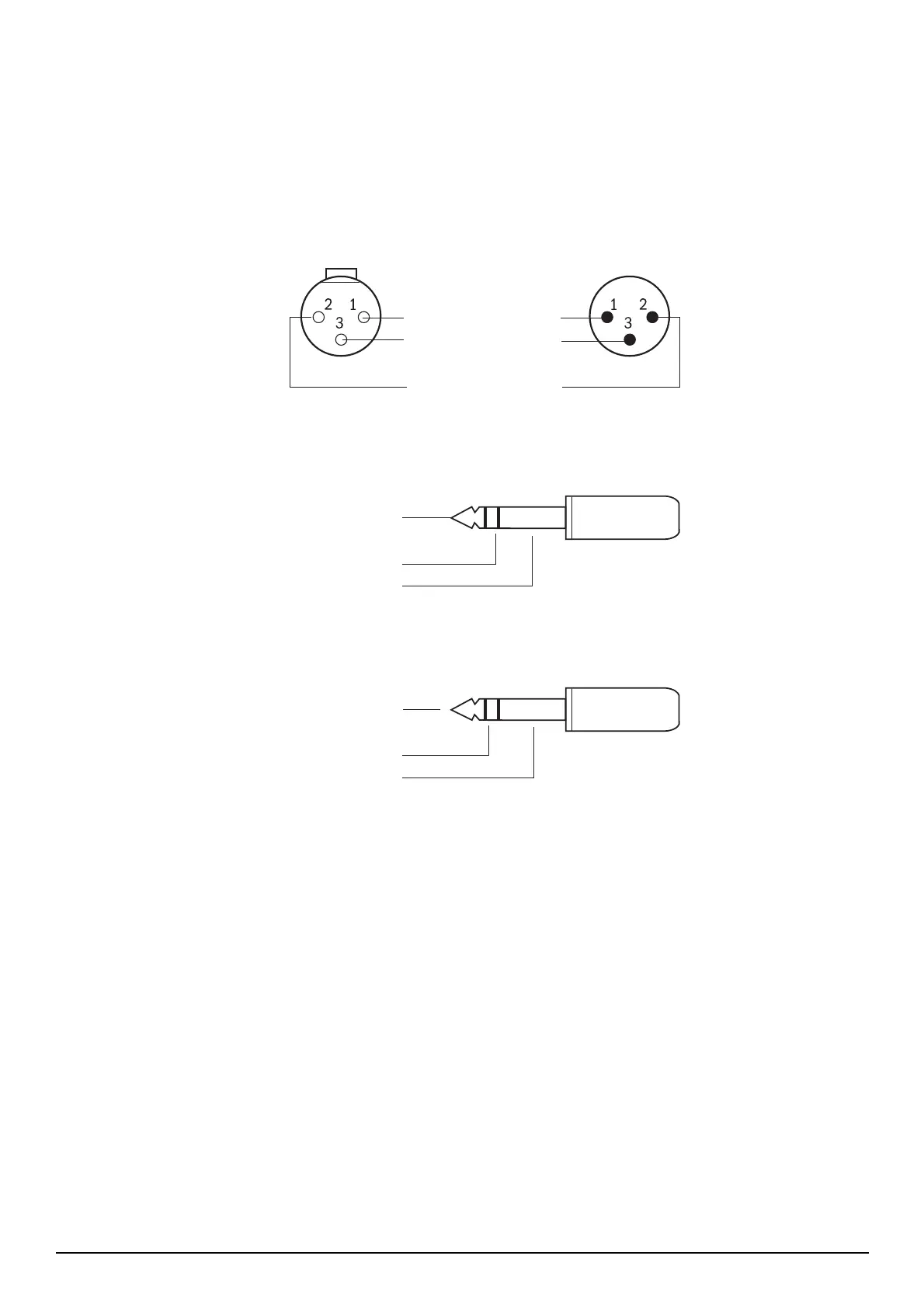

Audio Connector Pinouts
Audio Connector
ALL INPUTS ALL OUTPUTS
3-pole XLR
GROUND (SCREEN)
COLD (OUT-OF-PHASE SIGNAL)
HOT (IN-PHASE SIGNAL)
Socket (female) Plug (male)
1/4” Stereo Jack Plug used as balanced Input/Output:
All Jacks Except Headphones
Tip - HOT (IN-PHASE SIGNAL)
Ring - COLD (OUT
-OF PHASE SIGNAL)
Sleeve - GROUND (SCREEN)
1/4” Stereo Jack Plug used For Headphones
Tip - LEFT SIGNAL
Ring - RIGHT SIGNAL
Sleeve - GROUND (SCREEN)
