MONITOR OUT
MIC MIC MIC MIC MIC MIC MIC MIC
56789101112
STEREO 1
STEREO 2
LL
SUB
RR
LL
RR
[MONO] [MONO]
GAIN GAIN
AUX1
OUT
AUX2
OUT
AUX3
OUT
MONO
OUT
AUX3
OUT
MONO
OUT
GAIN
48V
L
L
R
R
REC
OUT
2TRK
IN
LEVEL
MIX-L
MIX-R
PHANTOM POWER
HEADPHONES
LINE LINELINE LINE LINE LINE LINE LINE LINE
INSERTINSERT INSERT INSERT INSERT INSERT INSERT INSERT INSERT
INSTRUMENT AND
VOCAL SOURCES
GRAPHIC EQ
AMPLIFIER
FOLDBACK
INDUCTION
LOOP
INDUCTION
LOOP AMP
CD PLAYER
GRAPHIC EQ
AMPLIFIER
MAIN PA LEFT AND RIGHT
HEADPHONES
>= 32 Ohms
CASSETTE OR
DAT MACHINE

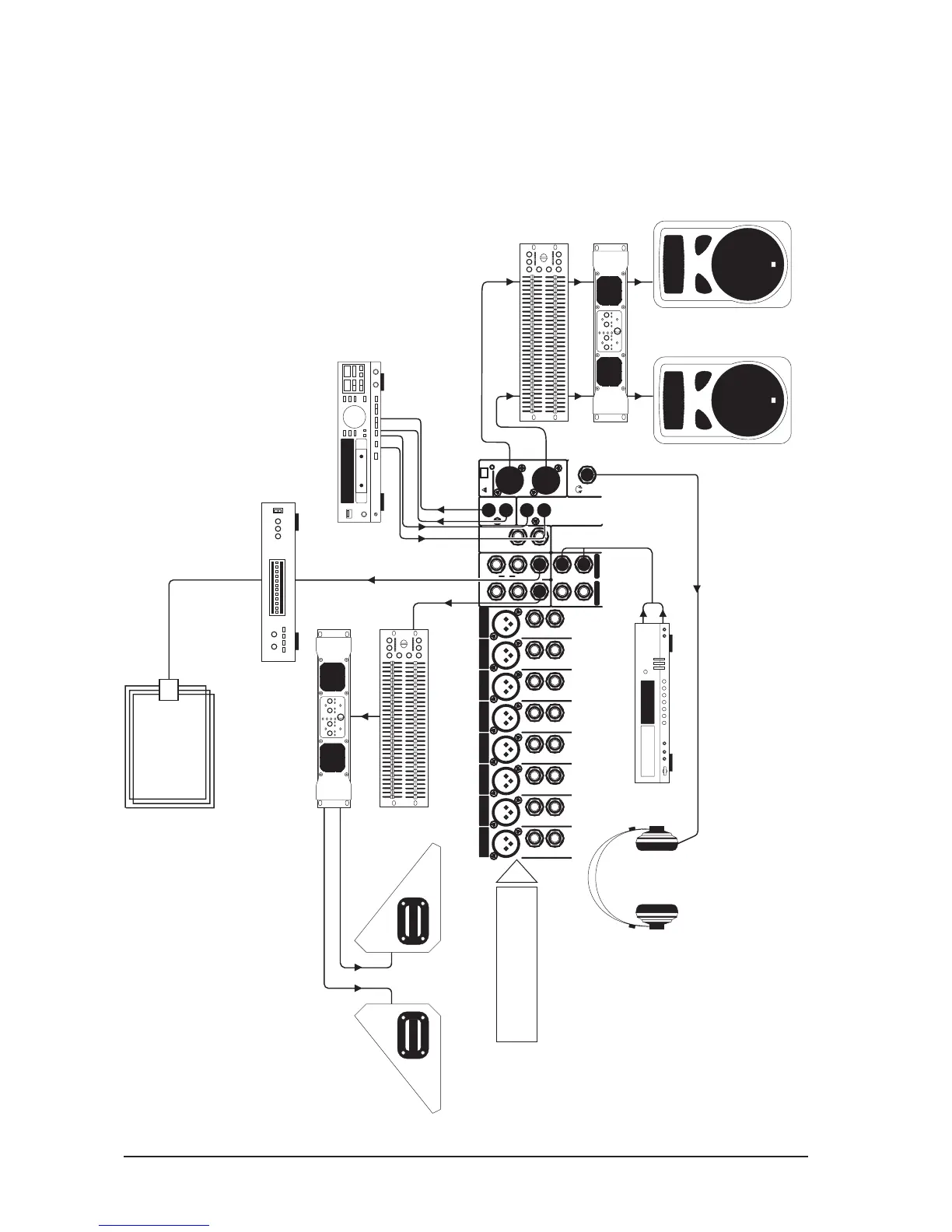

APPLICATION 3 - PLACES OF WORSHIP
This configuration uses the Aux 2 output to drive an induction loop for the hard of hearing. Aux 1 output is
used to generate foldback monitoring for the speaker/singer. The main outputs are used to drive the main
speaker system. The record and playback connections are used to pass audio to and from a DAT machine or
CDR.
