Vi V4.5 Quickstart Guide.doc Page 11
Associating the Microphones with Audio Connectors

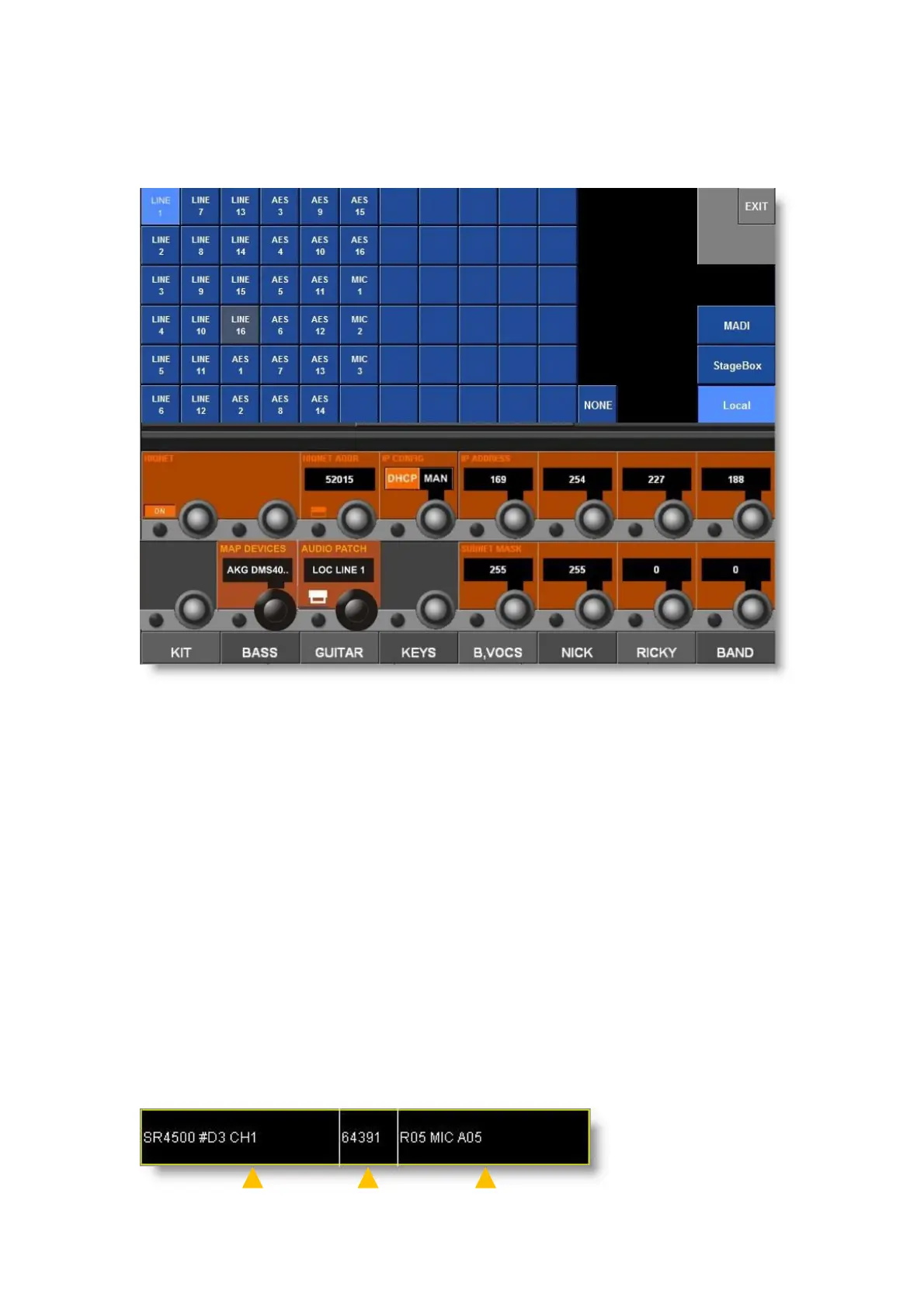

Use the MAP DEVICES Vistonics control to scroll the list and select a microphone,
then press the AUDIO PATCH button to open the patching matrix.
The patching matrix allows all of the physical input connectors available within the Vi
system to be seen and the relevant connector to be chosen to correspond to where
the currently selected microphone is connected.
The chosen connector is shown in bright blue highlight, whereas connectors that are
already associated with other AKG devices are shown as greyed-out.
A greyed-out connector can still be chosen as an assignment for the currently
selected microphone, but a dialogue box will appear in this case to ask if you wish to
reassign this connector.
Hint: To avoid opening and closing the Audio Patch page, the MAP DEVICES
encoder can still be used to scroll through the Device List even whilst the Audio
Patch page is still open. The name (truncated) of the currently selected Device can
be seen in above the MAP DEVICES Vistonics scroll encoder.
When all the assignments have been made, close the Audio Patch page by pressing
EXIT button on the screen, or pressing the Vistonics button in the AUDIO PATCH
control field.
Returning to the Device List, you should now have a list of devices with all three
columns indicating information in this format:
AKG Device name Hub4000Q Audio Patch assignment
node address
