MCD4850 / English instruction manual
ENG 2

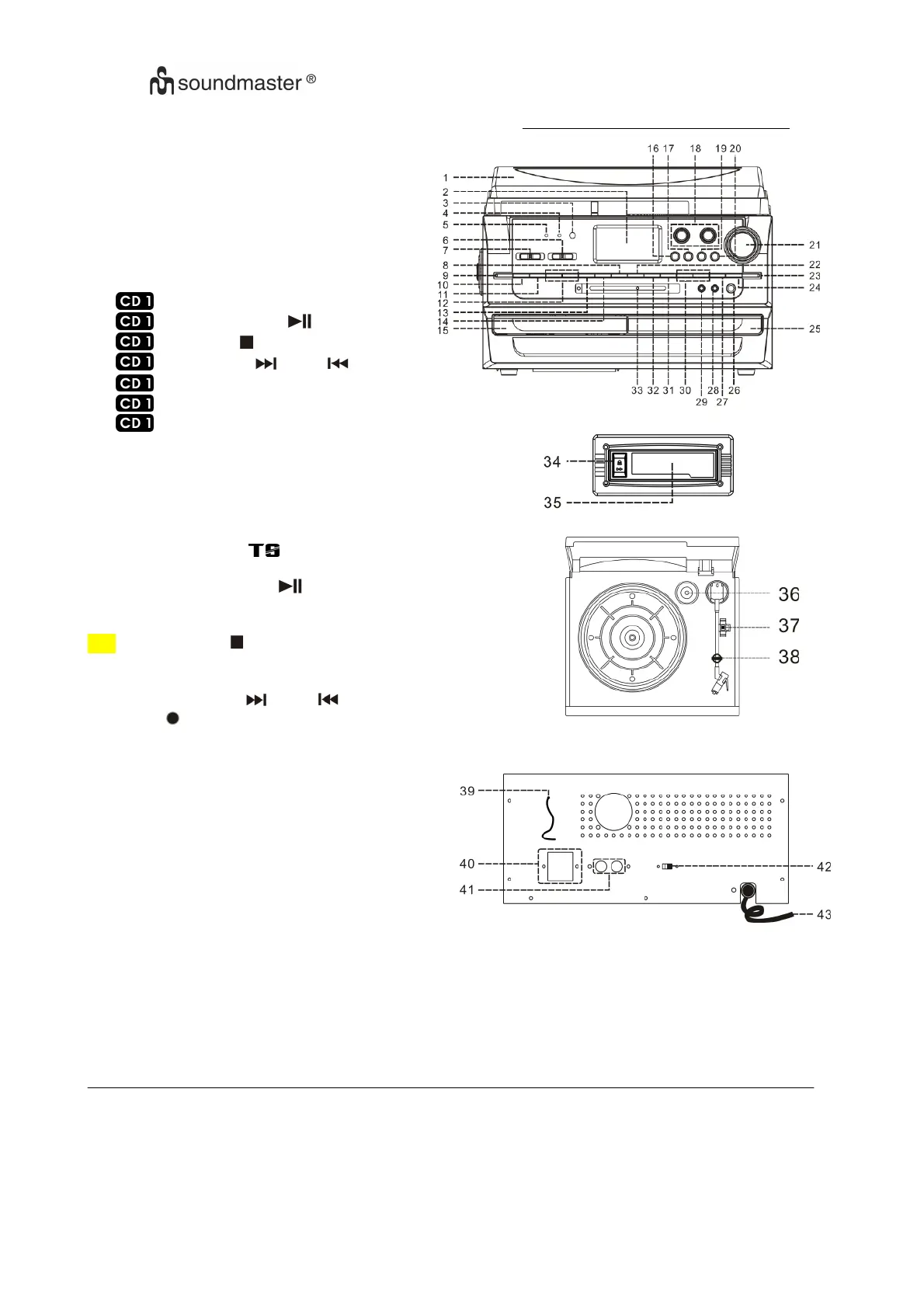

LOCATION OF CONTROLS
1) Dust Cover
2) LCD Display
3) Remote Sensor
4) FM Stereo LED Indicator
5) Power LED Indicator
6) BAND Selector
7) Off/On/Radio Selector
8) Finalize Button
9) – CD Door Open Button
10) – CD Play/Pause Button
11) – CD Stop
Button
12) – CD Skip Up
/
Down Button
13) – Folder Up Button
14) – Repeat/Ran Button
15) – CD Door
16) Tape Button
17) Phono Button
18) Volume Up/Down Button
19) CD 1/Aux Button
20) CD 2 Button
21) Tuning Knob
22) Track Separation
“ “
Button
23) CD2 – CD Door Open Button
24) CD2 – CD Play/Pause Button
25) CD2 – CD Door
26) X-BASS On/Off Button
27) CD2 – CD Stop
Button
28) 3.5MM Headphone Jack
29) 3.5MM Aux-InJack
30) CD2 – CD Skip Up
/
Down Button
31) Record Button
32) Erase Button
33) LED Dial Pointer
34) Tape Forward / Eject Button
35) Cassette Door Cover
36) Spindle Adaptor
37) Turntable Speed Selector
38) Pick-Up Holder
39) FM Wire Antenna
40) Speaker Terminal (L/R)
41) Line Out Socket
42) Auto Stop Switch
43) AC Cord
CAUTION:
Usage of controls or adjustments or performance of procedures other than those specified herein may
resulte in hazardous radiation exposure.
This unit should not be adjusted or repaired by anyone except qualified service personnel
.
PRECAUTIONS FOR USE
INSTALLATION
• Unpack all parts and remove protective material.
• Do not connect the unit to the mains before checking the mains voltage and before all other
connections have been made.
• Do not cover any vents and make sure that there is a space of several centimeters around the unit for
ventilation.
