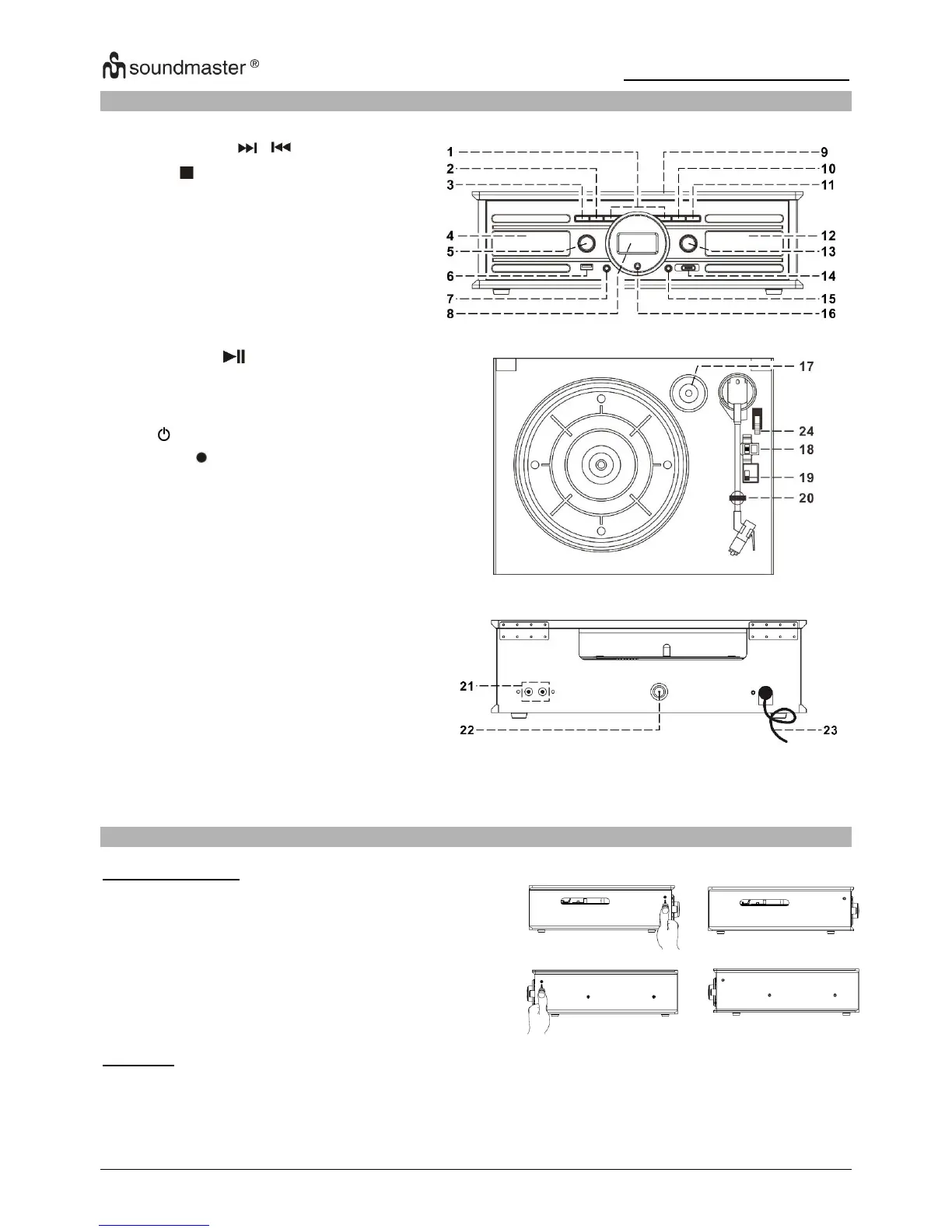

LOCATIONS OF CONTROLS
1) Skip / Tuning / button
2) Stop / ENTER button
3) MEM / CLK-ADJ button
4) Left speaker
5) FUNKTION knob
6) USB socket
7) 3.5 mm headphone jack
8) LCD display
9) Dust cover
10) Play/Pause / SCAN button
11) PLAY MODE / INFO button
12) Right speaker
13) “I/ - On / Standby / VOLUME” knob
14) Record button
15) 3.5mm AUX-IN jack
16) Remote sensor
17) Spindle adaptor
18) Turntable speed selector
19) Auto stop switch
20) Pick-up holder
21) Line out socket
22) DAB/FM antenna socket
23) AC line cord
24) Tone arm lift
Caution:
Usage of controls or adjustments or performance of procedures other than those specified herein may result in
hazardous radiation exposure.
This unit should not be adjusted or repaired by anyone except qualified service personnel.
CONNECT TO POWER
Precautions for use
 Unpack all parts and remove protective material.
 Do not connect the unit to the mains before checking
the mains voltage and before all other connections have
been made.
 Do not cover any vents and make sure that there is a
space of several centimeters around the unit for ventilation.
 The unit is supplied with 4 screw covers. It is
recommended to install the screw covers on both sides of
the unit.
Setting up
1. Connect the power cord (23) to AC outlet
2. When you first plug the unit into the mains, the LCD display (8) will show “ 0 : 00 ”.
3. Turn on the unit by pressing ON/Standby/Volume knob (13), if the LCD display (8) is on with backlighting, it
means the power supply is normal. Now your system is ready to play the music.
