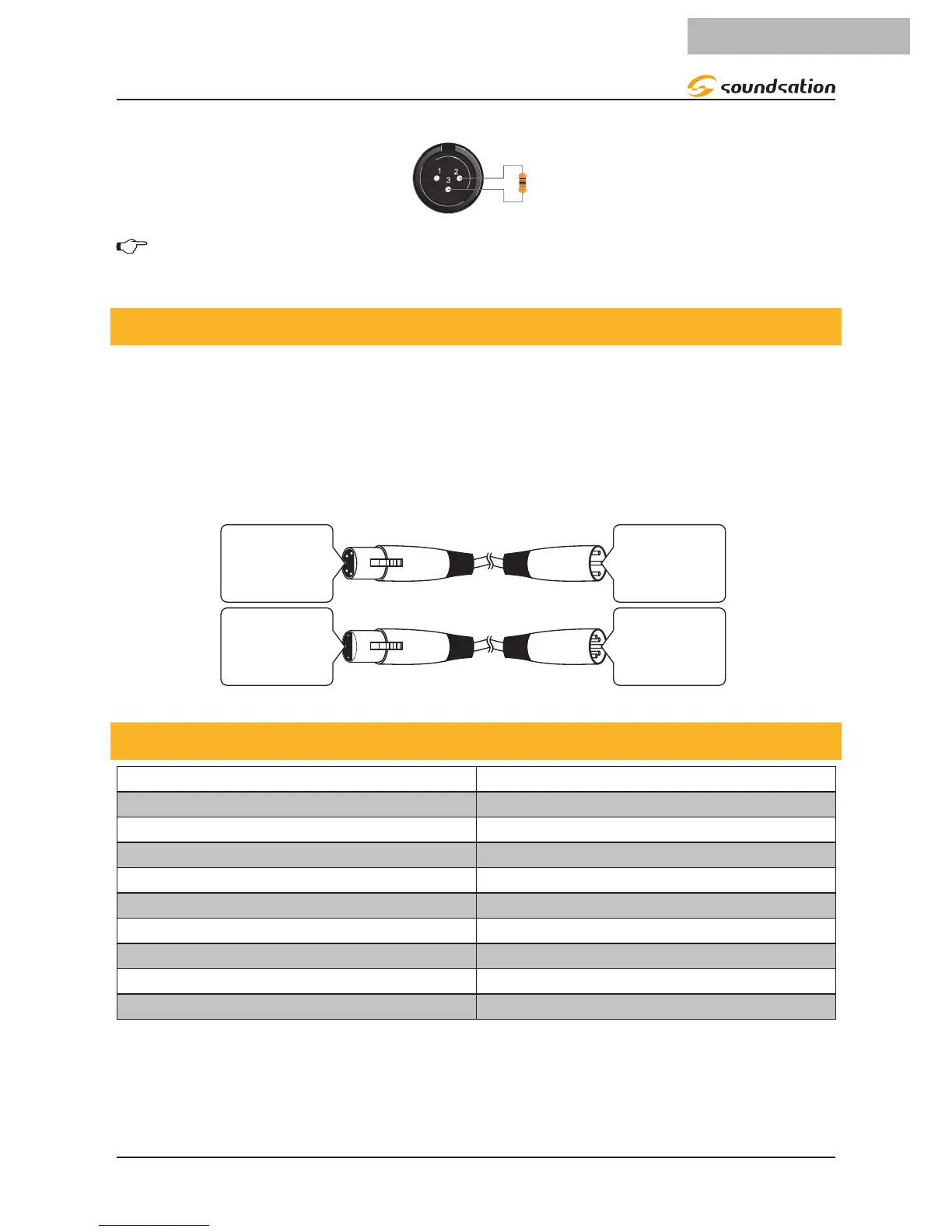

soundsation Scenemaker 1216 - 12.4. 3-Pin vs 5-Pin DMX cables; Specifications

120ohm, 1/4W
resistor
DMX Terminator
Complimentary signal cable can transmits signals to 20 unit xtures at most.
Signal amplier is a must to connect more xtures.
12.4. 3-Pin vs 5-Pin DMX cables
DMX connection protocols used by controllers and xtures manufacturers are not stan-
dardized around the world. However, two are the most common standards: 5-Pin XLR
and 3-Pin XLR system. If you wish to connect SCENEMAKER 1216 to a 5-Pin XLR input
xture, you need to use an adapter-cable or make it by yourself.
Following the wiring correspondence between 3-Pin and 5-Pin plug and socket stan-
dards
5-Pins XLR (plug)
Pin 1: GND (Screen)
Pin 2: Signal (-)
Pin 3: Signal (+)
Pin 4: N/C
Pin 5: N/C
3-Pins XLR (socket)
Pin 1: GND (Screen)
Pin 2: Signal (-)
Pin 3: Signal (+)
5-Pins XLR (socket)
Pin 1: GND (Screen)
Pin 2: Signal (-)
Pin 3: Signal (+)
Pin 4: N/C
Pin 5: N/C
3-Pins XLR (plug)
Pin 1: GND (Screen)
Pin 2: Signal (-)
Pin 3: Signal (+)
13. SPECIFICATIONS
Power Supply DC 9V-12V, 500mA min.
USB Lamp (not included) 5V - 200 mA max
Protocols DMX-512 USITT
Data Input Locking 3-pin XLR male socket
Data Output Locking 3-pin XLR female socket
Data Pin Conguration Pin 1 shield, Pin 2 (-), Pin 3 (+)
Controller Size (WxHxD): 482 x 82 x 133 mm
Net Weight 2.0 kg
Packing Dimension (WxHxD): 560 x 135 x 185 mm
Packing Gross Weight: 2.6 kg
