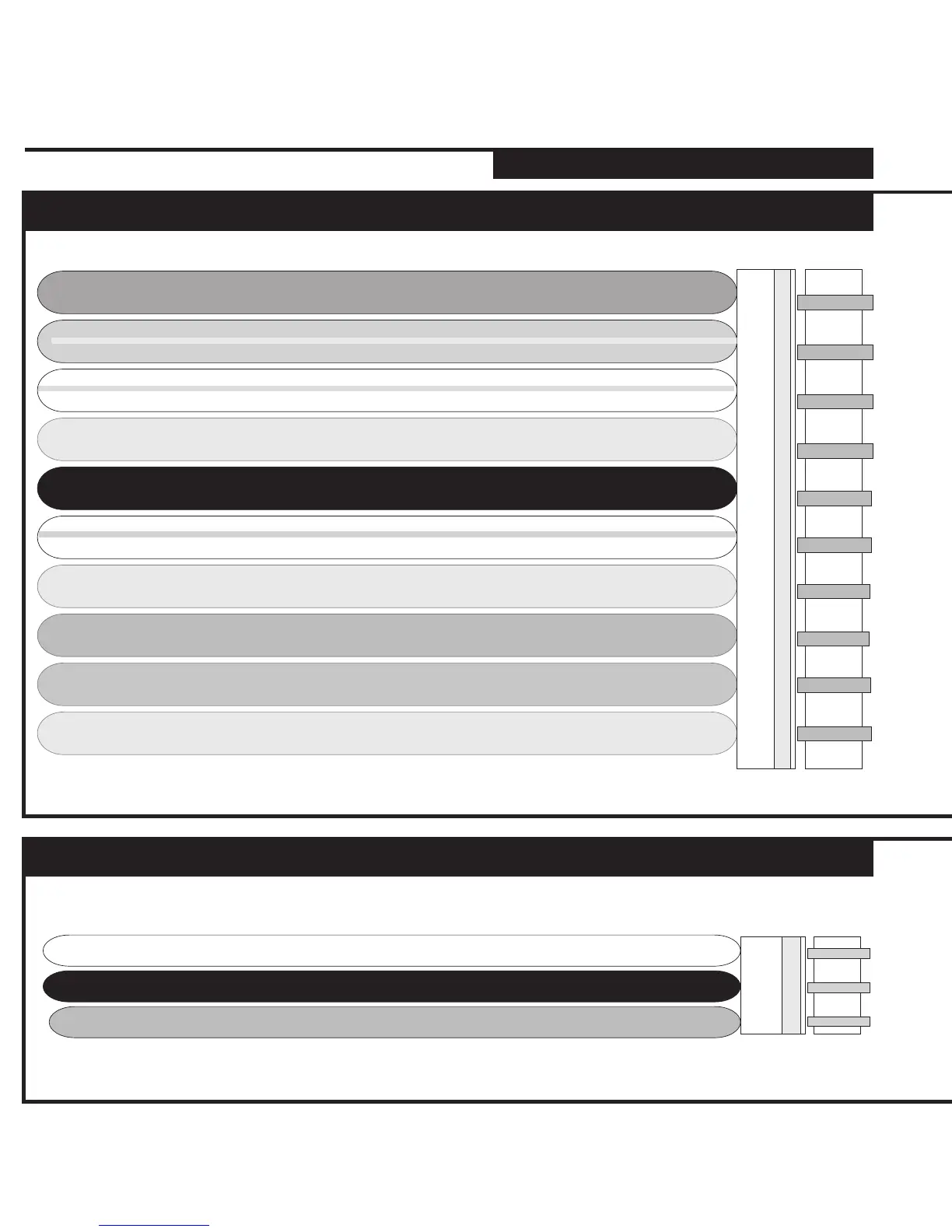

Soundstream AL.1 - System Wiring Details; 10 Pin Connector Wiring; 3 Pin Power Connector Wiring

OUTPUT TO ACTIVATE SIREN (+2amp)
AUX 1 OUTPUT (-)
STARTER DISABLE (-) WHEN ARMED
DOME LIGHT (-) WHEN DISARMED (30sec)
WHT/GRN
SECOND UNLOCK OUTPUT (-)
BLUEINPUT FOR HOOD OR TRUNK SWITCH (-)
GREENINPUT FOR NEGATIVE DOOR PIN SWITCH
PURPLEINPUT FOR POSITIVE DOOR PIN SWITCH
YELLOWSWITCHED IGNITION INPUT (+)
WHT/BLUE
ORANGE
BLK/WHT
BROWN
WHITEPOSITIVE PARK LIGHT OUTPUT (+15amp)
SYSTEM CHASSIS GROUND INPUT
RED
CONSTANT 12 VOLT INPUT (20AMP)
BLACK
10 PIN CONNECTOR
3 PIN POWER CONNECTOR
SYSTEM PROGRAMMING - Menu 1
INSTALL MANUAL
SYSTEM WIRING
OUTPUT FOR TRUNK RELEASE (-)
RED/WHITE
AL.1
