Soundstream AL.1 - System Wiring Overview; Wiring Connections Overview

AL.1
INSTALL MANUAL

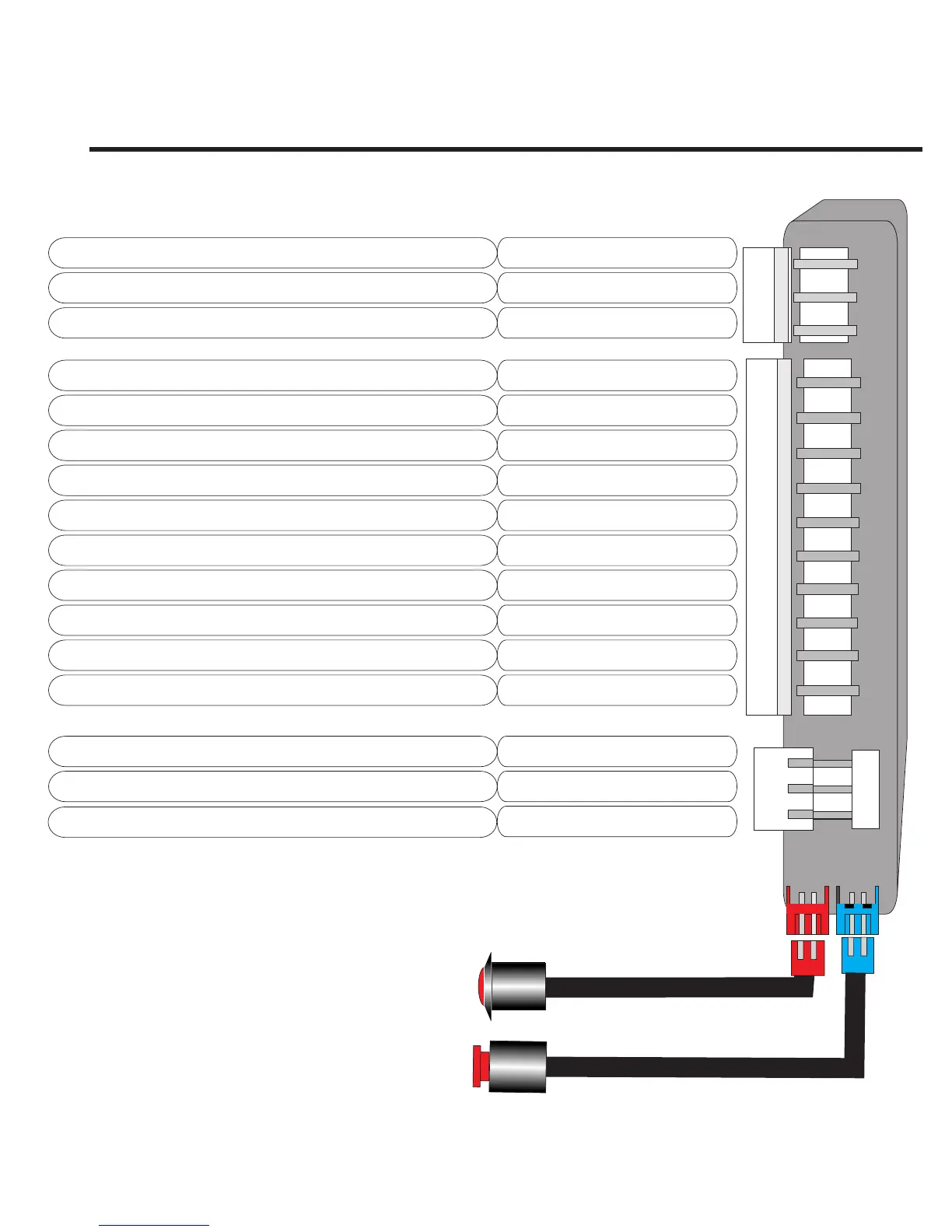

WHITE: 16 AwgPOSITIVE PARK LIGHT OUTPUT (+15amp)
SYSTEM CHASSIS GROUND INPUT
RED: 20 AwgCONSTANT 12 VOLT INPUT
OUTPUT TO ACTIVATE SIREN (+2amp)
RED/WHITE: 22 AwgOUTPUT FOR TRUNK RELEASE (-)
AUX 1 OUTPUT (-)
STARTER DISABLE (-) WHEN ARMED
DOME LIGHT SUPERVISION
WHITE/GREEN: 22 Awg
SECOND UNLOCK OUTPUT (-)
BLUE: 22 AwgINPUT FOR HOOD OR TRUNK SWITCH (-)
GREEN: 22 AwgINPUT FOR NEGATIVE DOOR PIN SWITCH
PURPLE: 22 AwgINPUT FOR POSITIVE DOOR PIN SWITCH
YELLOW: 22 AwgSWITCHED IGNITION INPUT (+)
GREEN: 22 AwgNEGATIVE OUTPUT FOR LOCK
12VOLT OUTPUT FOR VOLTAGE INVERTER
BLUE: 22 Awg
WHITE/BLUE: 22 Awg
ORANGE: 22 Awg
BLACK/WHITE: 22 Awg
BLACK: 20 Awg
BROWN: 20 Awg
LED
PROGRAM SWITCH
NEGATIVE OUTPUT FOR UNLOCK
