Page #13 background imageLoading...
Page #13 background image
HI G H- INP U T
L+ L - R+ R -
HI G H- INP U T
L+ L - R+ R -
FRONT
INPUT
FUSE
Source Unit
RCA signals
REMOTE signal

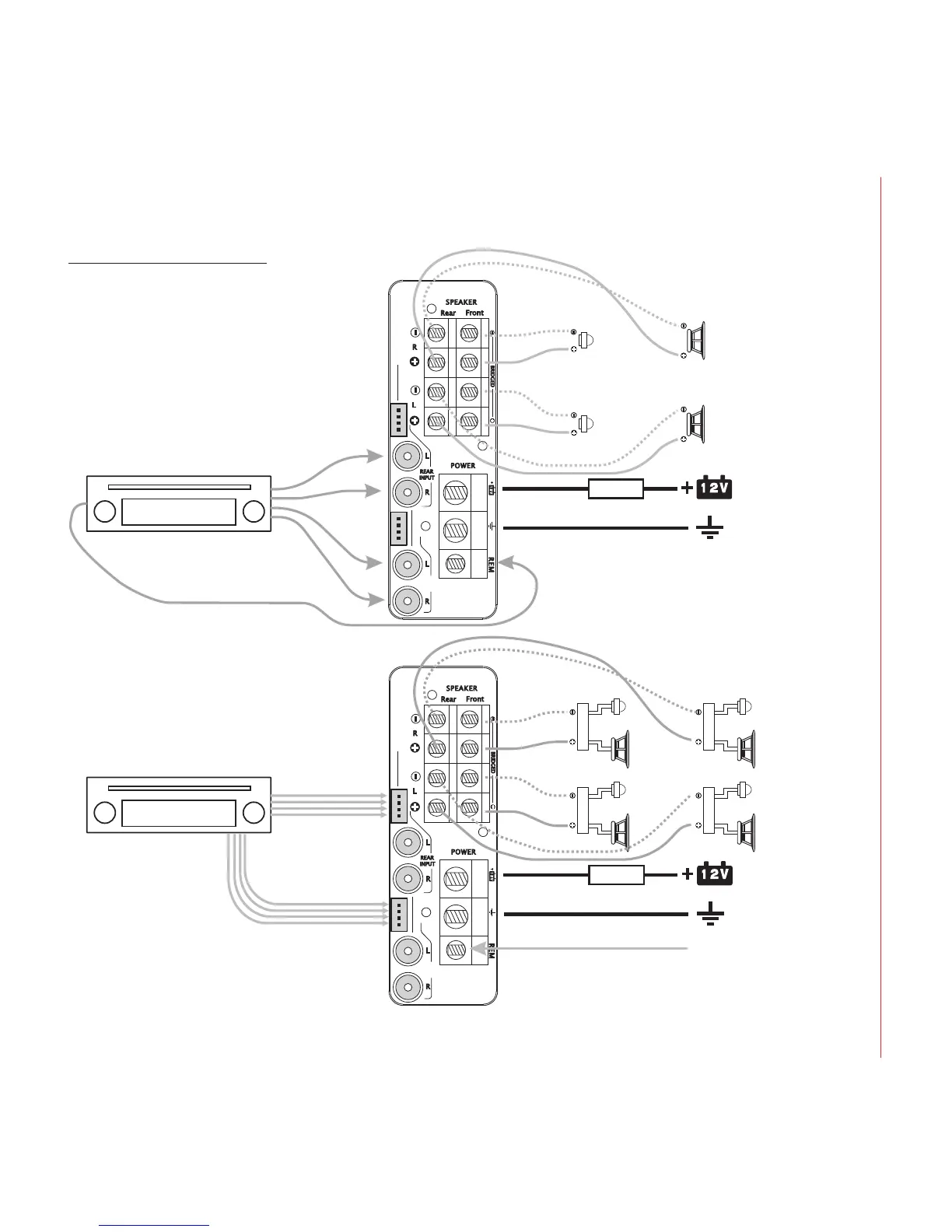

Fig 10. DTR4.500 wiring
(High level input mode)
Fig 9. DTR4.500 wiring
WIRING DIAGRAM
(active x-over mode)
Tweeter
Tweeter Woofer
Woofer
HI G H- INP U T
L+ L - R+ R -
HI G H- INP U T
L+ L - R+ R -
FRONT
INPUT
FUSE
CROSSOV ER CROSS OV ER
CROSSOV ER CROSS OV ER
Source Unit / Original amplifier
Speaker signal
Speaker signal
ON/OFF control signal
2-Ohm to 4-Ohm
2-Ohm to 4-Ohm
2-Ohm to 4-Ohm
2-Ohm to 4-Ohm

Table of Contents

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Soundstream D-Tower DTR1.1700 and is the answer not in the manual?

Soundstream D-Tower DTR1.1700 Specifications

General IconGeneral
Channels1
Power Output1700W
RMS Power @ 2 Ohms850W x 1
RMS Power @ 1 Ohm1700W x 1
Frequency Response20Hz - 220Hz
Signal to Noise Ratio>90dB
Damping Factor>150
Input Sensitivity200mV - 6V
Crossover TypeVariable Low Pass
Subsonic Filter10Hz - 50Hz
Bass Boost0 to +12 dB
Bass Boost Frequency45Hz
Dimensions10.25"W x 2.25"H x 17.75"L
Phase Shift0 - 180 degrees
Operating Voltage9V - 16V
RMS Power at 2 Ohms850W x 1
RMS Power at 1 Ohm1700W x 1
