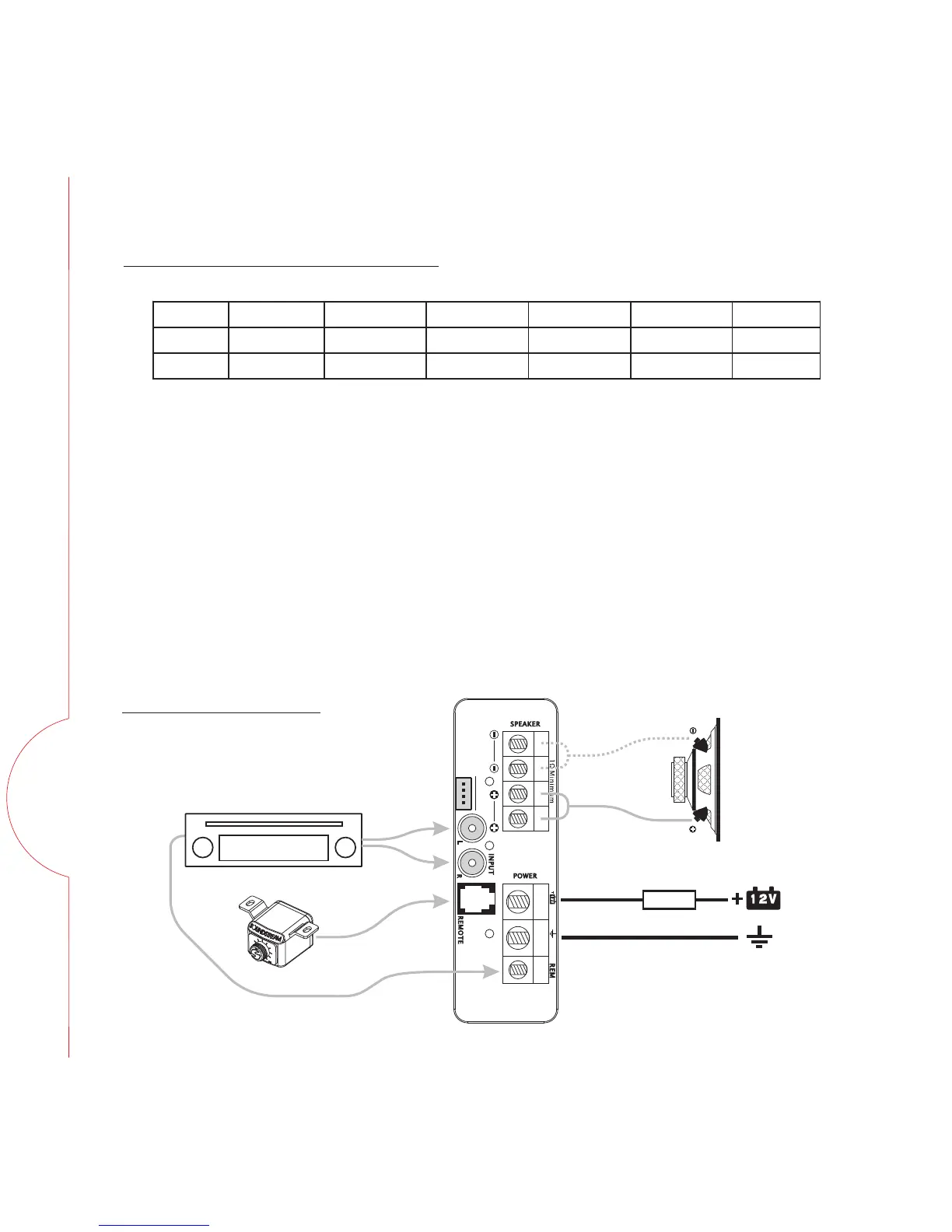

CONNECTING THE AMPLIFIER
1. Select cable and fuse according to the following table.
2. Connect the amplifiers ground cable to a close, bare metal part of the frame or
chassis. Use a nut and bolt, NOT a screw! The ground cable must be at least the same size
as the +12volt cable.
3. Connect the remote terminal to remote output of the head unit using 16 gauge (or
heavier) wire.
4. Connect the fuse holder within 18”(45cm) of the car battery, and run the selected
cable from this fuse to the amplifier.
5. Connect all the inputs with high-quality cables. Connect Remote Control if
necessary.
6. Insert fuse(s) into the battery fuse holder(s).
7. If using the rear channel of the DTR4.500 for a subwoofer, bridge the channels by
using the Left “+” and the Right “-“ terminals.
MODEL DTR1.900D DTR1.1400D DTR1.1700D DTR1.2200D DTR1.3400D DTR4.500
CABLE 6-4 4 4-2 2-0 0 6-4
FUSE 80A 100A 150A 200A 250A 60A
