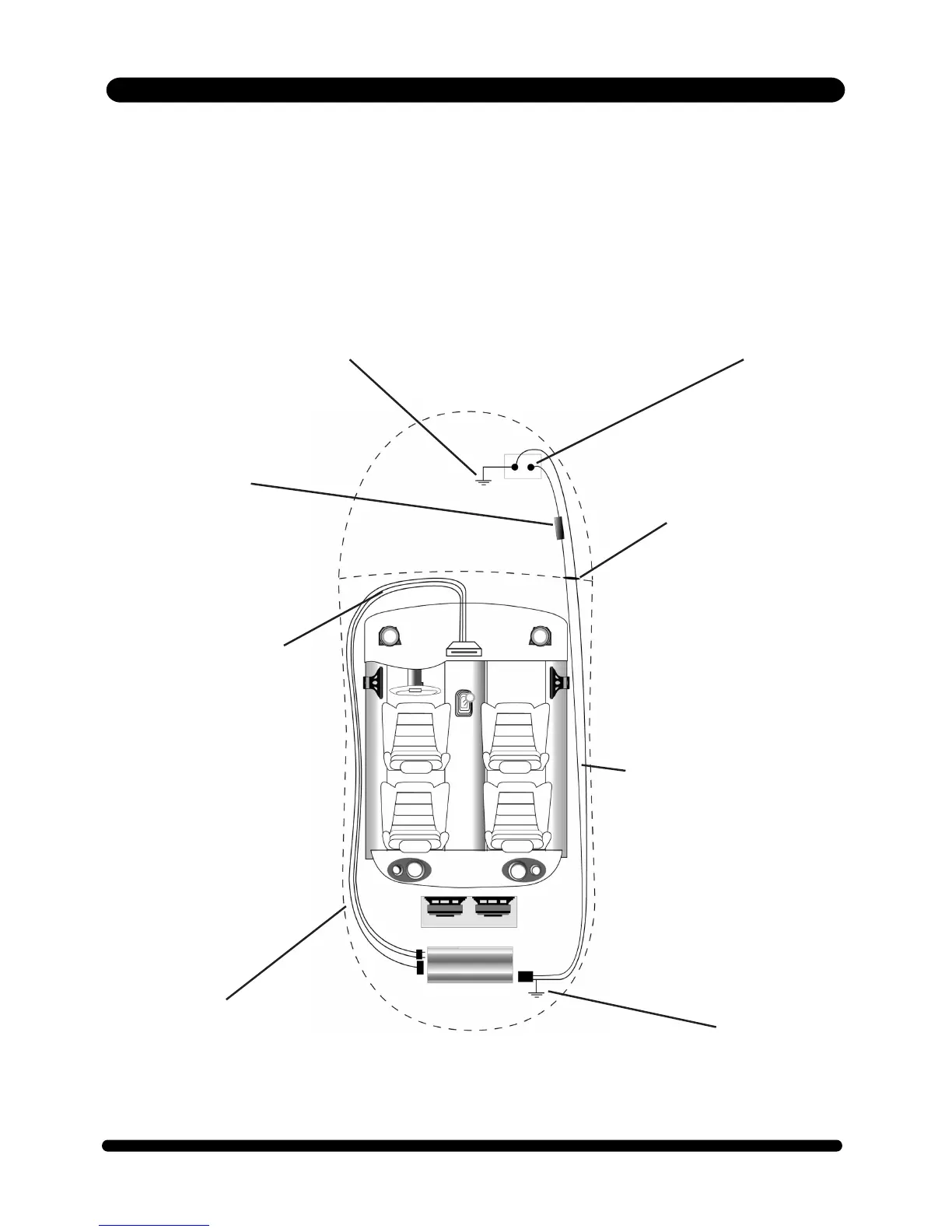

Positive
Battery
Terminal
Fuse must be
installed within
18" of battery
Drill a hole in the
firewall and use
a rubber grommet
to keep wire
from shortings
Run the cables under
the carpet near the
side of the vehicle.
Be careful not to drill
or screw into the
wires when you
replace the trim.
Ground wire to solid
metal of rear chassis
Avoid sharp edges that
could chafe through the
insulation
Run signal cables
(RCAs) and
remote turn-on
lead
down the
opposite side of
the vehicle of the
power
wire to avoid
radiated noise
Factory Ground wire may
need to be replaced if it is
small, frayed, or broken
Before beginning, disconnect the negative (-) terminal of the battery prior to
working on the positive (+) terminal to prevent a short to ground. This is impor-
tant to avoid serious damage to your car audio system and your car electrics.
Reconnect the negative terminal only after all connections have been made.
WIRING
