Southwire 16040T - Meter Components and Display Symbols

6
Symbols Used on LCD Display
V
A
AC
DC
-
Hz
%
Ω
F
n
µ
m
k
M
OL
AUTO
MAX/MIN
H
Volts
Amperes
Alternating current
Direct current
Minus sign
Hertz (frequency)
Percent (duty cycle)
Ohms
Continuity
Diode test
Farads (capacitance)
nano (10
-9
)
micro (10
-6
)
milli (10
-3
)
kilo (10
3
)
mega (10
6
)
Overload
Auto Power Off
Low battery
Autoranging
Display hold
Maximum/Minimum
Bluetooth
®
Technology
10 A
16040T
MAX
MIN
MODE
5

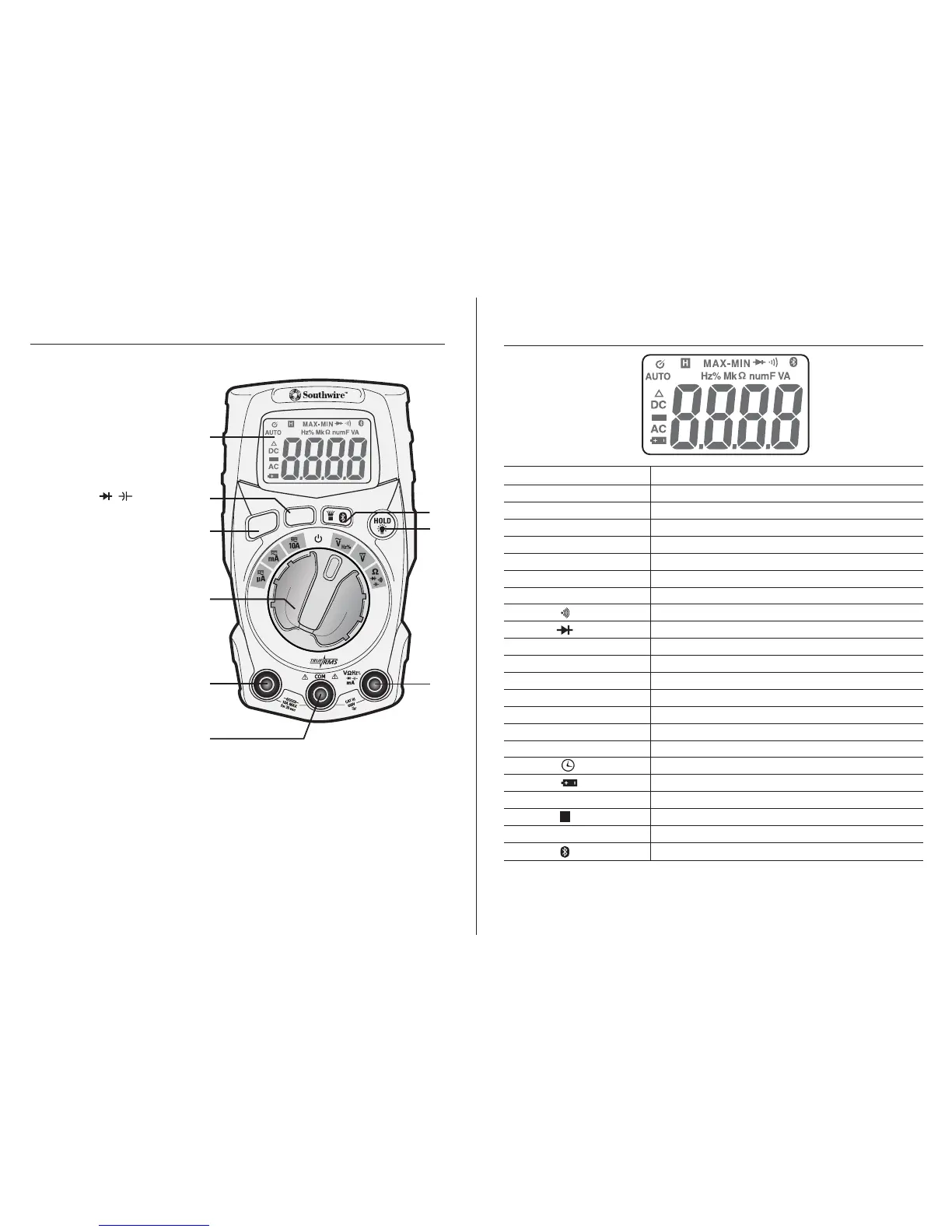

Meter Description
1. LCD display
2. MAX/MIN button
3. MODE button
4. Rotary function switch
5. 10A input jack
6. V/Ω/Hz/%/ / /
mA input jack
7. COM input jack
8. HOLD/Backlight button
9. Flashlight/Bluetooth
®
button
1.
2.
4.
5.
6.
8.
9.
7.
3.
