SOYO SY-6BA+ User Manual

Hardware Setup SY-6BA+
13
Step 4. IDE Device Installation (HDD, CD-ROM)
This Motherboard offers two primary and secondary IDE device
connectors (IDE1, IDE2.) It can support up to four high-speed HDD
or CD-ROM.
Connect one side of the 40-pin flat cable to the IDE device (HDD or
CD-ROM) and plug the other end to the primary (IDE1) or secondary
(IDE2) directionally keyed IDE connector on the Motherboard.
This Motherboard can support up to four HDDs.
Step 5. Floppy Drive Installation
The system supports 5 possible floppy drive types: 720 KB, 1.2 MB,
1.44 MB, 2.88 MB, and LS-120. In addition, this Motherboard
supports a 3-mode (720KB/1.2MB/1.44MB) floppy commonly used
in Japan.
Connect one side of the 34-pin flat cable to the floppy drive and plug
the other end to the floppy drive connector on the Motherboard.
This Motherboard can support up to 2 floppy drives.

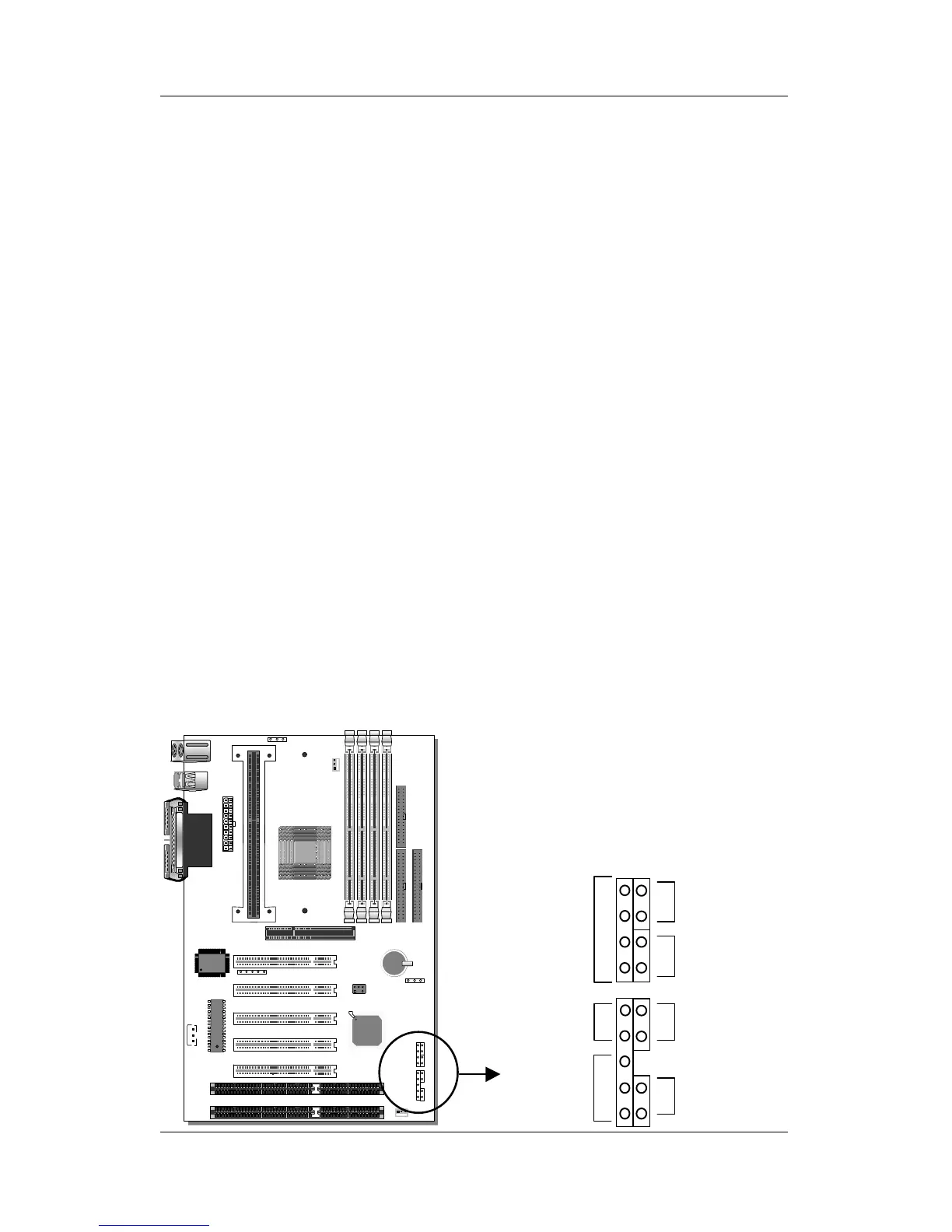

Step 6. Front Panel Connections
Speaker
Keylock
Power
LED
Reset
PWRBT
Turbo
LED
HDD LED
_
+
_
+
_
+
_
+
