SY-P4VGM V1.0 Quick Start Guide
8
Installation
Install the Motherboard
We will now begin the installation process. Please follow the following
procedure to lead you to a complete and correct installation.
Step 1
- Install the Central Processing Unit (CPU)
Step 2
- Install memory modules
Step 3
- Connect cables, case wires, power supply and install expansion cards
Step 4
- Install expansion cards
Step 1. Install the CPU

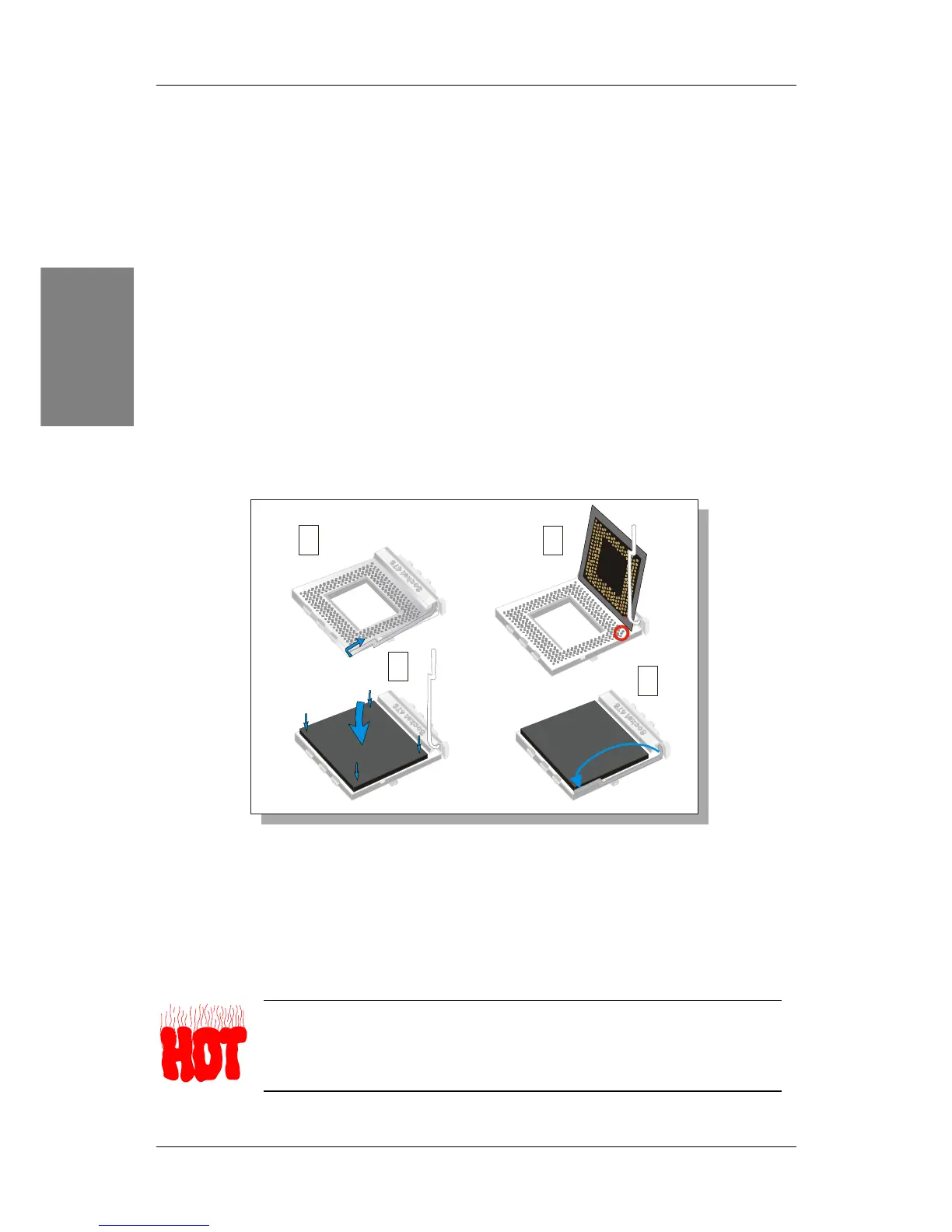

CPU Mount Procedure:
To mount the Pentium
®
4 Socket mPGA478
processor that you have purchased separately, follow these instructions.
1. Lift the socket handle up to a vertical position.
2. Align the blunt edge of the CPU with the matching pinhole edge on the socket.
3. Seat the processor in the socket completely and without forcing.
4. Then close the socket handle to secure the CPU in place.
Remember to connect the CPU Cooling Fan to the appropriate power
connector on the Motherboard. The fan is a key component that
stabilizes the system. It prevents the equipment from overheating and
prolongs the life of your CPU.
1
1
3
4
2
