Spa Electrics Atom - MULTI-PLUS MODEL COMPATIBILITY; CONTROLLER OPERATION

EASYTOUCH®, INTELLITOUCH® and SAm® are registered trademarks of Pentair Water Pool and Spa, Inc. and/or its affiliated
companies in the United States and/or other countries. AQUALINK® is a registered trademark of Zodiac Pool Care, Inc.
The ATOM ‘Multi-Plus’ lights integrate with the Pentair EasyTouch®, IntelliTouch® & Zodiac
Aqualink® RS OneTouch
TM
(Rev R - Current) Control systems. This allows the user to have direct
control over colours and light shows via the intelligent control unit.
To setup the controller to operate the ATOM Multi-Plus lights, simply follow the controller
setup procedure and select “INTELLIBRITE” as the desired operating mode.

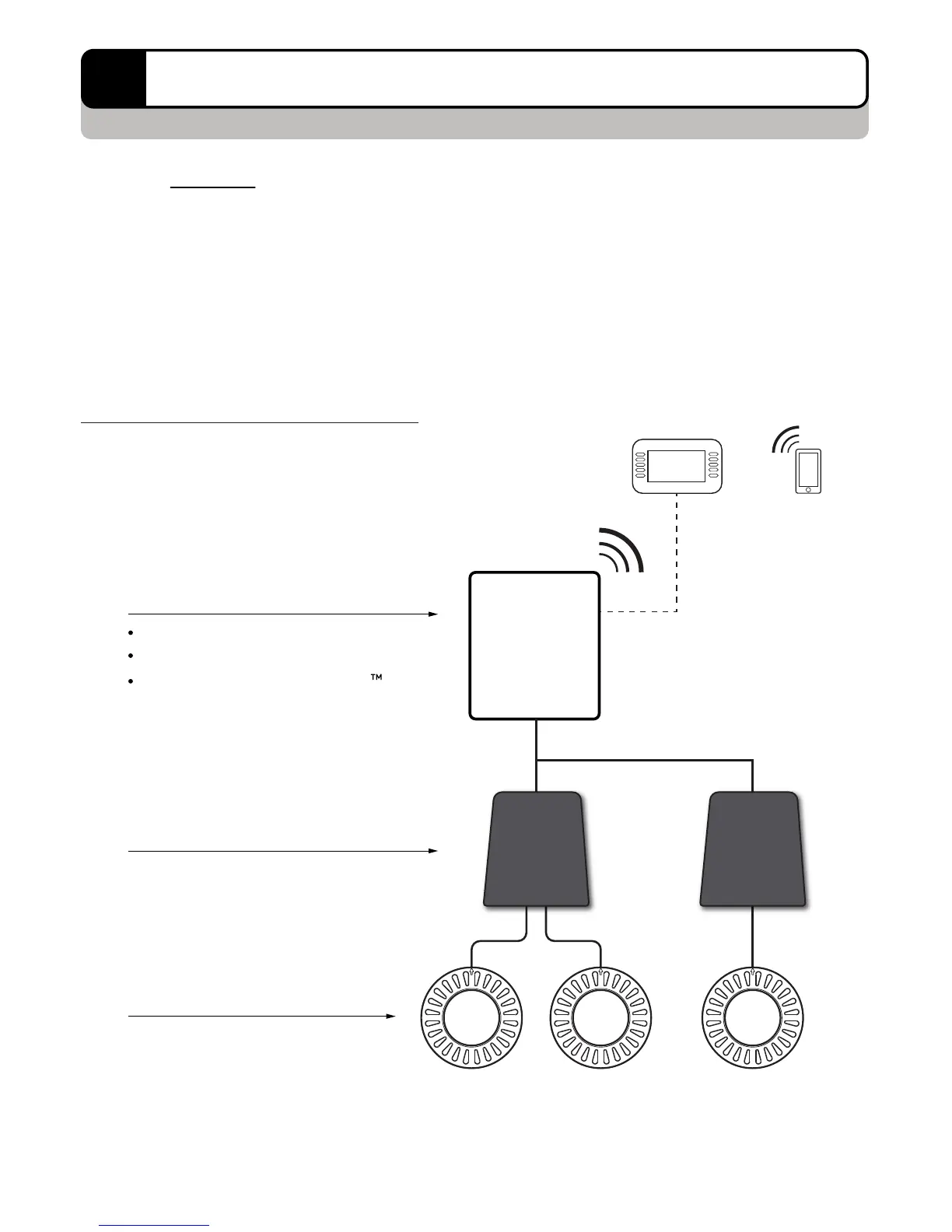

SUGGESTED WIRING DIAGRAM
TRANSFORMER(S)
ATOM MULTI-PLUS LIGHTS
CONTROLLER
PENTAIR INTELLITOUCH®
PENTAIR EASYTOUCH®
AQUALINK® RS ONETOUCH
(REV R - CURRENT)
LV50-12LV50-12 LV25-12
19
CONTROLLER OPERATION
2
MULTI-PLUS MODEL (PENTAIR / ZODIAC COMPATIBLE)
