VINYL LINER
STEEL WALL
All light conduits must be run in individual
lengths back to transformer location. An air-loop
or junction box must be installed as part of each
conduit run to prevent pool siphoning.
NOTE: Conduit should contain a draw-wire to
allow easy installation of power cable.
300mm (MIN)
CONDUIT ABOVE
WATER / GROUND
POWER SUPPLY
(TRANSFORMER)
400mm (MAX)
WATER
LINE
COPING
50mm (MIN)
RECOMMENDED
INSTALL DEPTH
AIR-LOOP OR
JUNCTION BOX
6

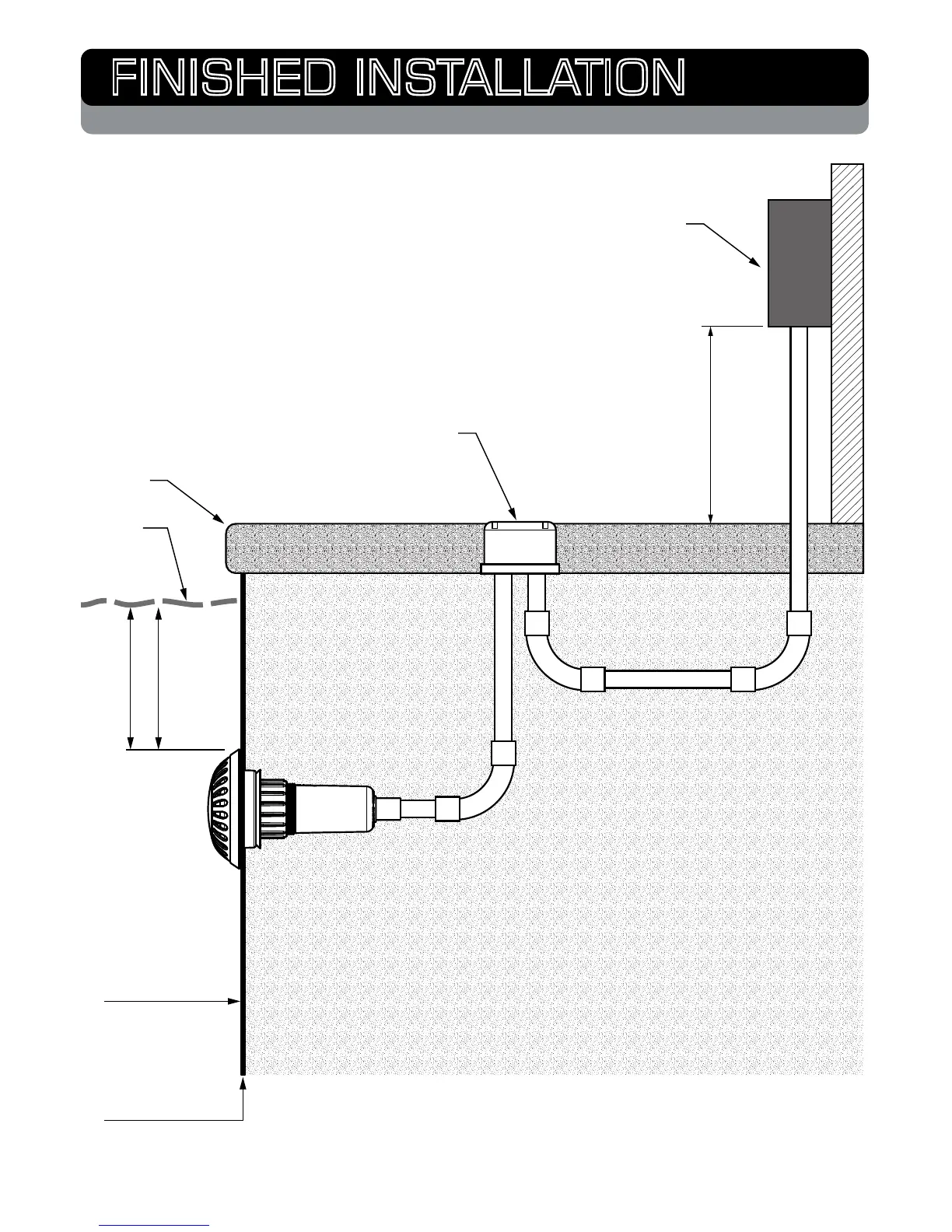

FINISHED INSTALLATION
STANDARD WALL MOUNTING
