CABLE REMOVAL
CABLE GROMMET
COMPRESSION PLATE
FASTENERS
700mm
(STANDARD)
A B
1000mm (MAX)
AFTER CABLE
ADJUSTMENT
CABLE GLAND
1
2
USING A NO. 2 PHILLIPS-HEAD
SCREW-DRIVER, PARTIALLY LOOSEN
FASTENERS 1 & 2 TO ALLOW CABLE TO
SLIP THROUGH NICHE.
DO NOT EXTEND CABLE LONGER THAN
1000mm (SEE ABOVE) - EXCESS CABLE
WITHIN NICHE WILL RESTRICT
CORRECT ASSEMBLY OF LIGHT HEAD.
USING A NO. 2 PHILLIPS-HEAD
SCREW-DRIVER, COMPLETELY REMOVE
CABLE GLAND COMPONENTS AND
STORE SAFELY FOR LATER-USE.
ENSURE CABLE-GLAND COMPONENTS
ARE RE-ASSEMBLED TO CABLE IN THE
ORIENTATION & ORDER SHOWN ABOVE
PRIOR TO FASTENING BACK INTO
NICHE.
ATOM lights (for vinyl pools) are supplied with 700mm of cable pre-installed within the
niche. In circumstances where additional cable-length is required, the cable can be
extended to a maximum of 1000mm and stored within the niche. (Applicable for cables up
to 1.0mm
2
)

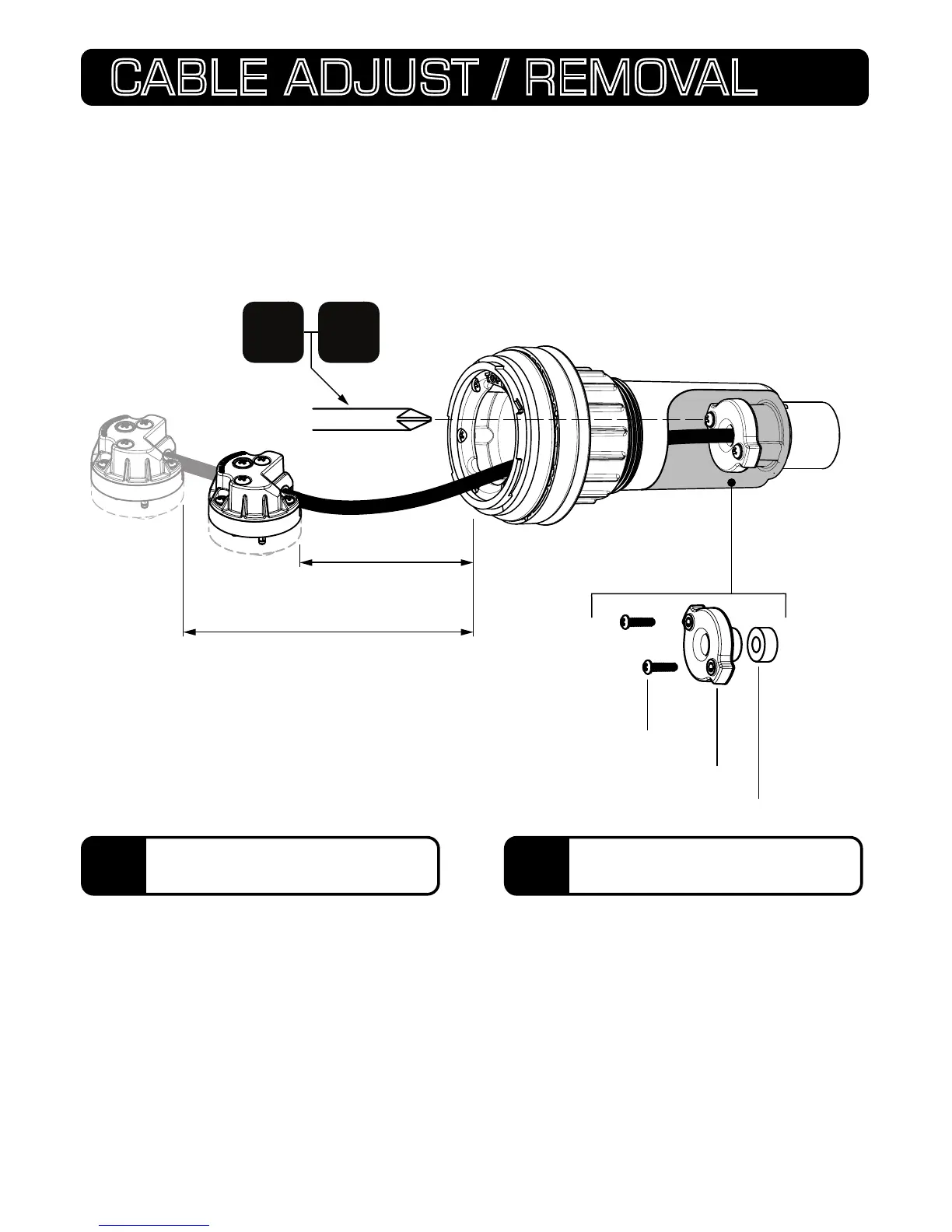

The following diagrams illustrate how the cable can be adjusted and/or removed:
16
CABLE ADJUST / REMOVAL
