Spaceman 6228AH - Page 14

DISASSEMBLE

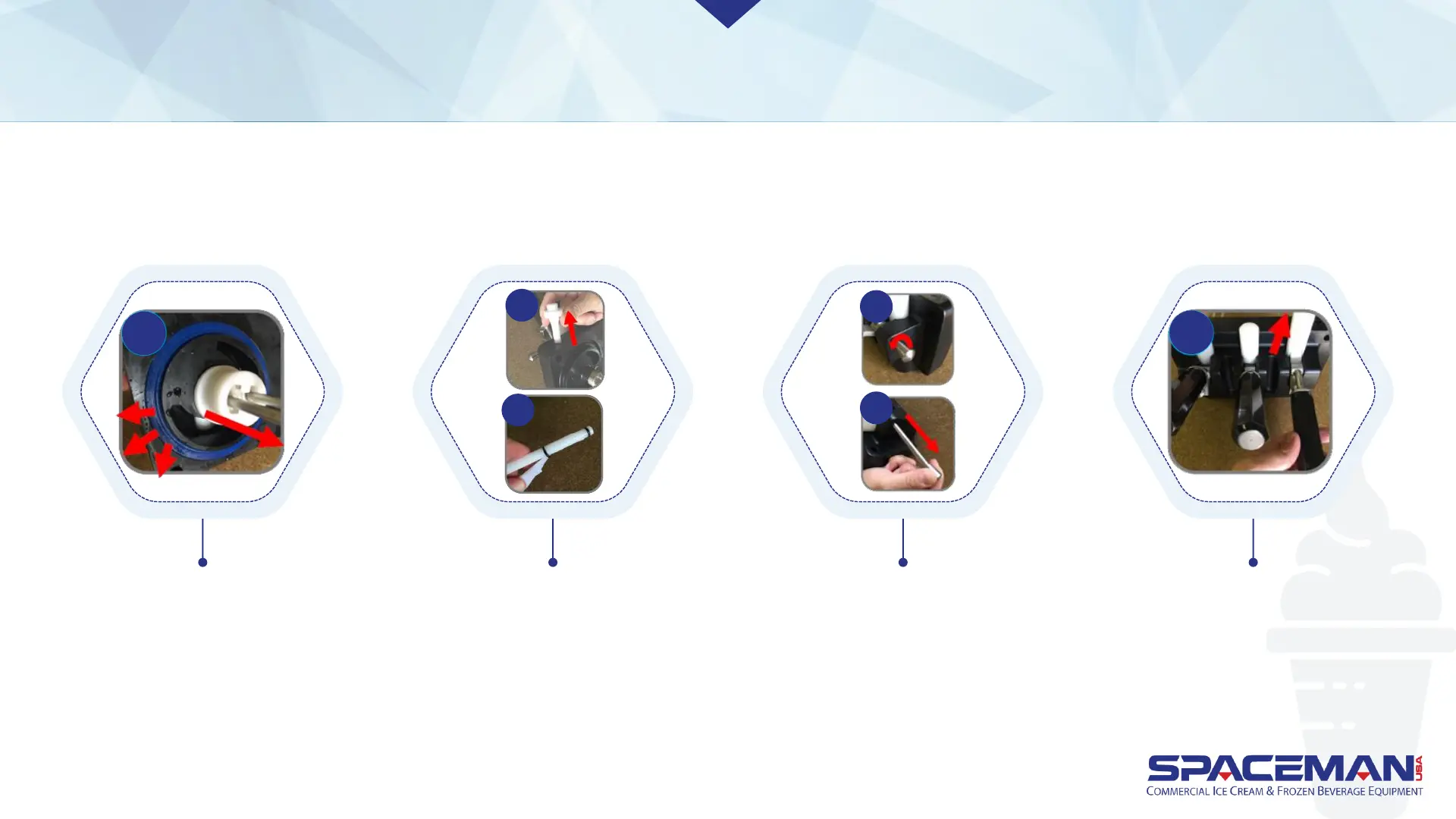

4. Disassemble dispensing door
4a
Remove beater guides (2)
from door assembly;
remove gaskets (2) from
door assembly using O-
ring removal tool
Remove prime plugs (2)
from door assembly;
remove O-rings (4) from
prime plugs using O-ring
removal tool
4b
4b
4c
4c
Unscrew and remove
retention nut; remove
retention pin
Remove draw handles
(3), pushing down first to
pop up draw valves, then
pulling out
4d
