SpacePak ESP-J - Figure 2.34: Single Stage Air Conditioning Only Wiring Diagram

SpacePak ESP-J
52 pages
Save Page as PDF
Print Icon
To Next Page IconTo Next Page
To Next Page IconTo Next Page
To Previous Page IconTo Previous Page
To Previous Page IconTo Previous Page
Loading...
21
ESP 120V/230V
SINGLE STAGE
REFRIGERANT
CONDENSER ONLY
LAT
COIL2
COIL1
TEMPERATURE

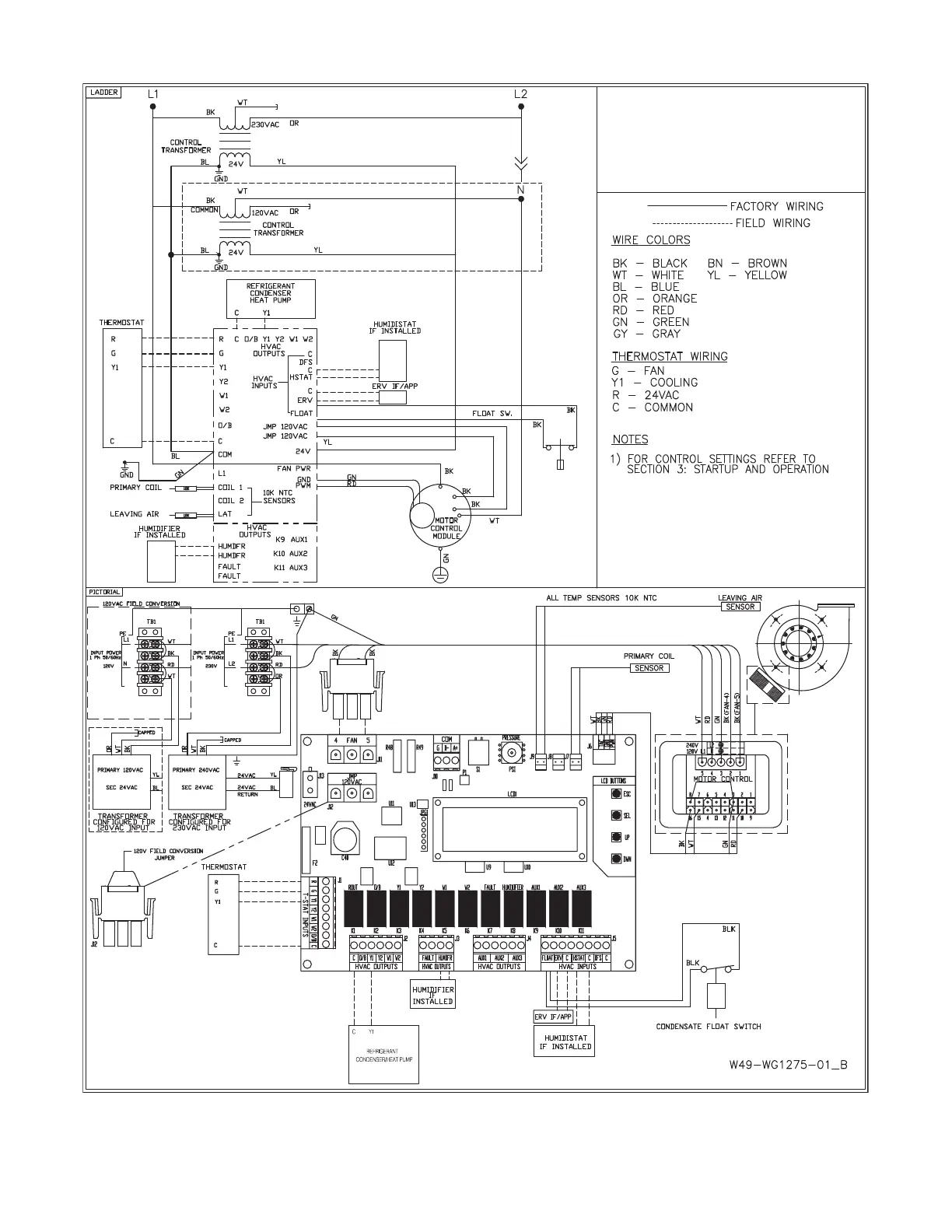

FIGURE 2.34: SINGLE STAGE AIR CONDITIONING ONLY WIRING DIAGRAM
