INSTALL RAIL EC

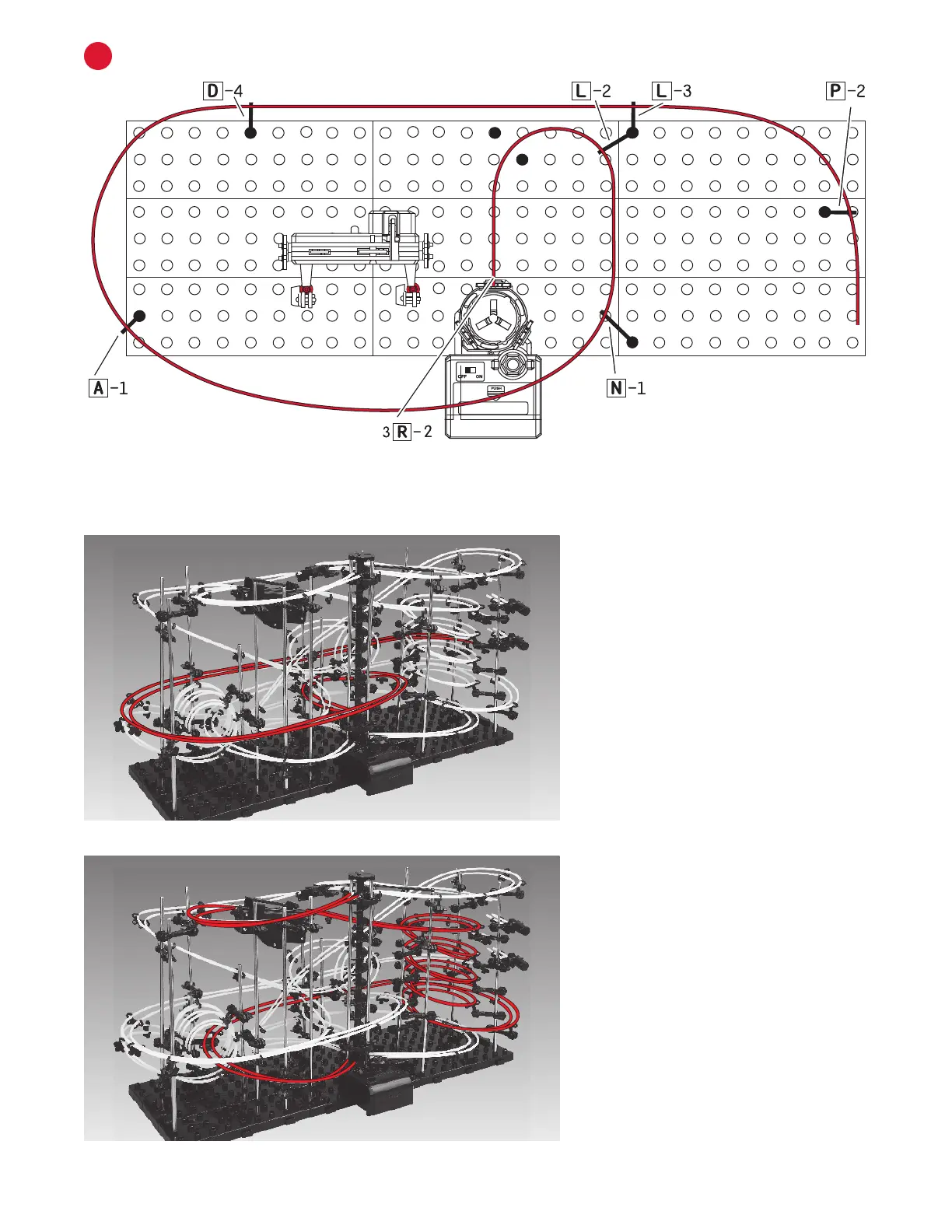

Step 1: Starting at the middle center Elevator Ring (3R-2) connect Rail E (200 cm) to Rail Clip. Continue rail
between Shaft I and J. Curve to connect to Arm L-2, then N-1. Line rail around the outside of the structure to
A-1 then D-4, L-3, and P-2. Rail ends above See-Saw Arm.
Rail E
Rail F and G
Elevator Entry
To Next Page
