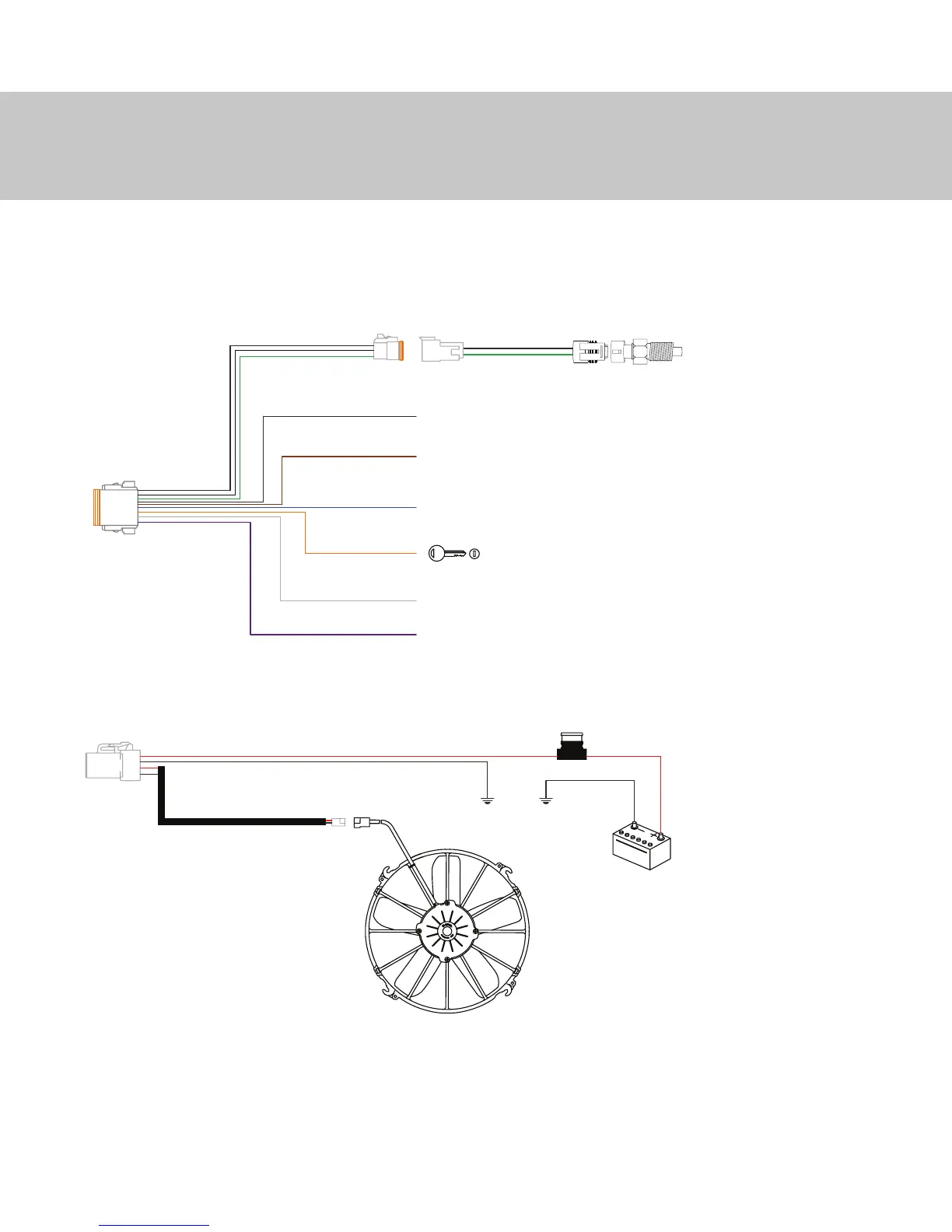

Wiring
(continued)
SINGLE
F
A
N SP
AL
SENSOR
Y
T
B
A
T
E
R
FUSE
GROUND
(BLACK)
+12VDC (RED)
MAX. 30
AMP
FUSE
F
A
N/PWR HARNESS
C
B
AIR CONDITIONING INPU
T
(BLUE) SEE P
AGE 9
ST
A
T
US OUTPU
T
(BROWN) SEE
P
A
GE 8
SWITCHED IGNITION (ORANGE)
(GRA
Y) NO
T
USED
MAIN HARNESS
(PURPLE) NO
T
USED
SP
AL
T
EMP SENSOR HARNESS
SP
AL
SENSOR
GROUND (BLACK)
Single Fan SP
AL Sensor
17
19
Table of Contents
Parts Included in Kit
2
Optional Equipment
2
Hardware Bag
2
Optional Items
2
Suggested Fuse Values
3
New Features
4
Introduction / Overview
5
Operation
6
Mounting
7
Temperature Sensor Connection
8
Connecting to a Factory OEM Temperature Sensor
8
SPAL Temperature Sensor (FAN-PWM-TS)
9
Optional Status Output
9
Air Conditioning Input
10
A/C Wiring Diagram
10
Programming
12
‘Stat’ LED (Green)
12
3 Color ‘Fan’ LED
12
Setting both the Low & High Temperature
13
Setting the Low Temperature Only
14
Setting the High Temperature Only
14
Selecting the Desired Preset
15
Wiring
16
Manual Fan Override Switch
21
Troubleshooting
22
