SPAL FAN-PWM-V3 - Dual Fan OEM Sensor

www.spalusa.com
18

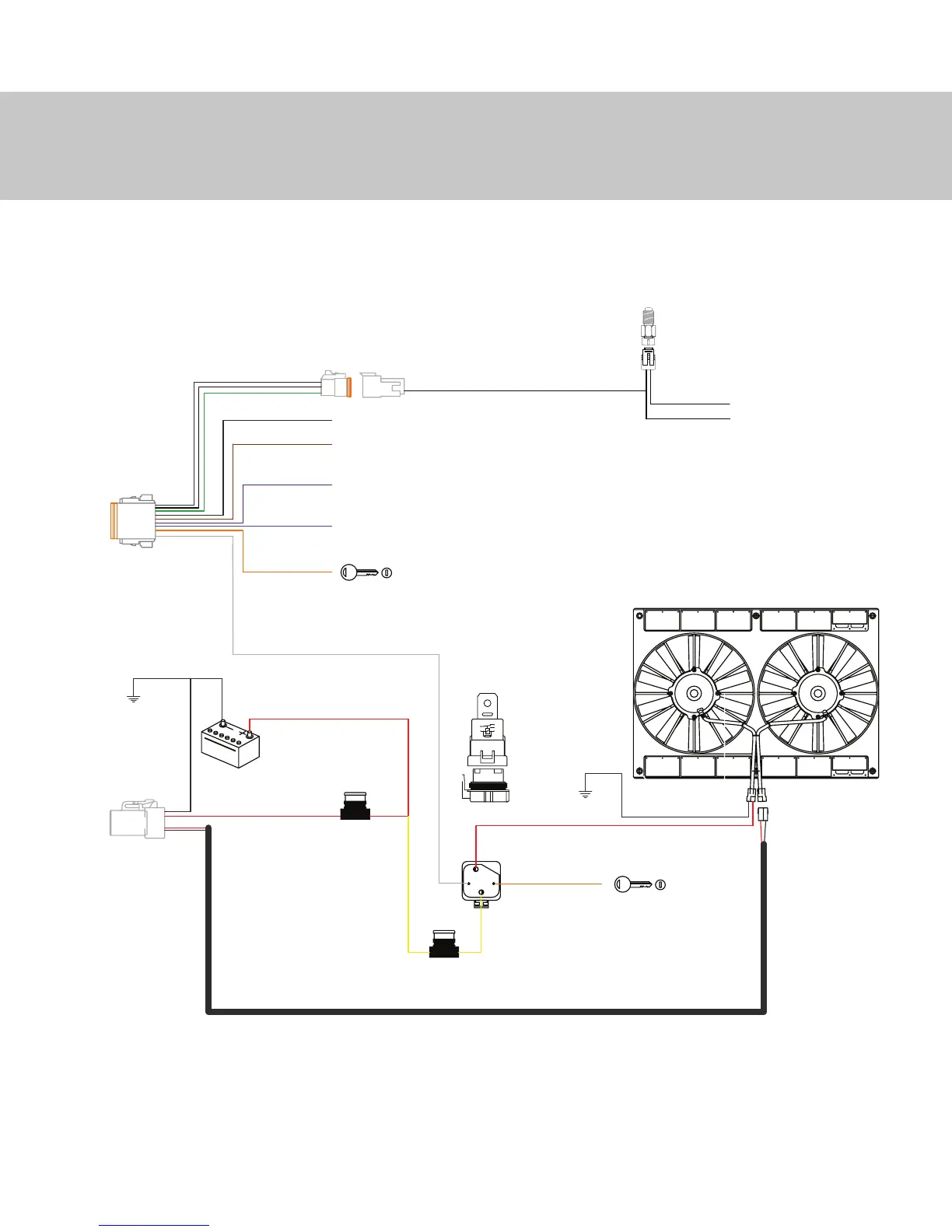

Wiring
(continued)
C B
FAN POSITIVE (RED)
86
87
87a
85
30
Y
T
B
A
T
E
R
FUSE
AIR CONDITIONING INPUT (BLUE) SEE PAGE 9
GROUND
GROUND
STAT US OUTPUT (BROWN) SEE PAGE 8
SWITCHED IGNITION (ORANGE)
(BLACK)
+12VDC (RED)
FAN HARNESS
SECONDARY FAN OUTPUT (GRAY)
SWITCHED IGNITION (ORANGE)
+12VDC (YELLOW)
2ND FAN RELAY
PA RT # (FRH)
MAX. 30 AMP
FUSE
MAX. 30 AMP
FUSE
NOT USED (PURPLE)
OEM TEMP SENSOR (WHITE)
VA RIABLE
VOLTAGE +
GROUND
DUAL FAN OEM SENSOR
MAIN HARNESS
FAN/PWR
HARNESS
FUSE
GROUND (BLACK)
Dual Fan OEM Sensor
