Assemble the Base
13
B

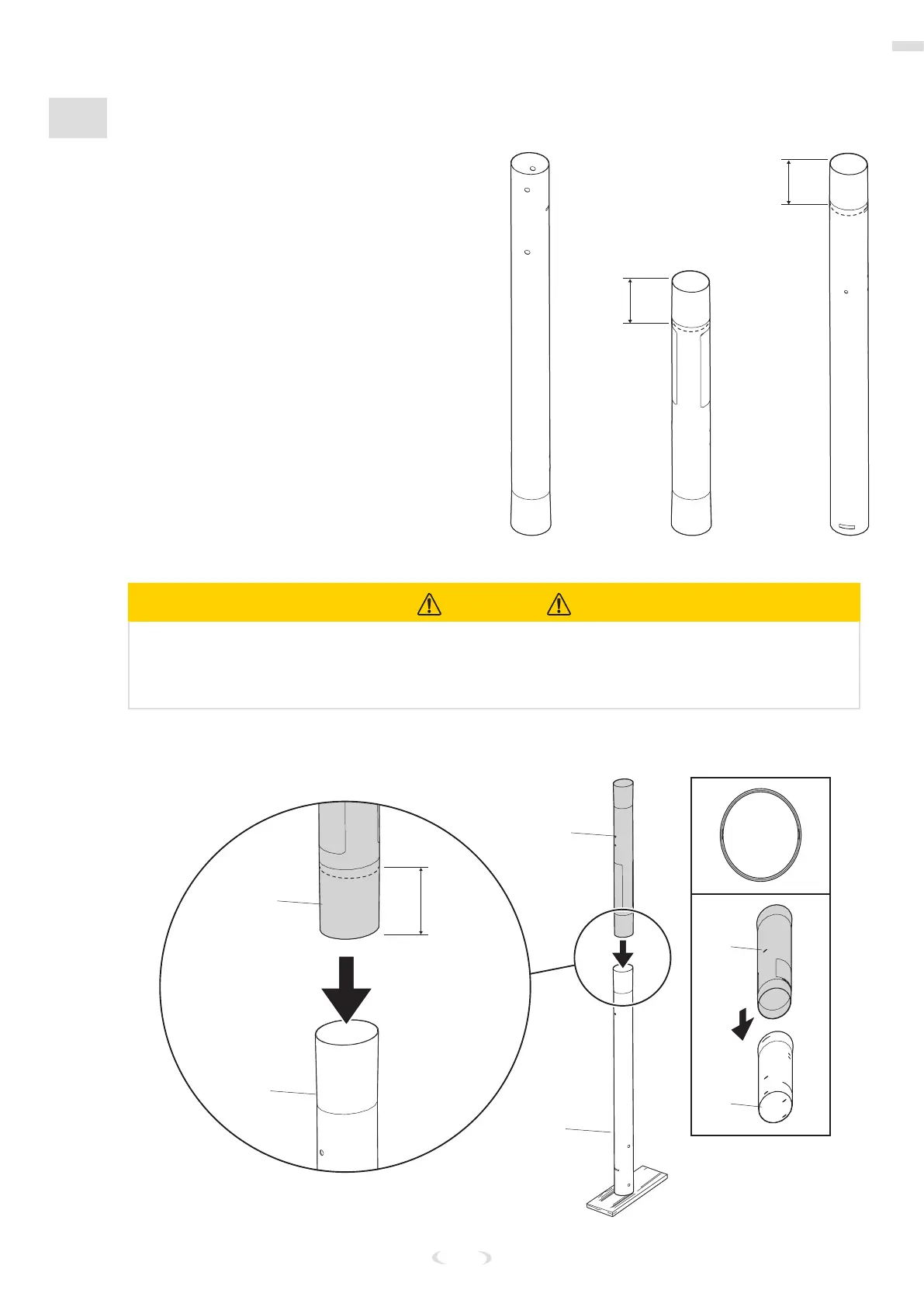

ASSEMBLE THE OVAL POLE
1. Identify the top (12), middle (11), and
bottom (10) oval pole sections.
2. Mark 3 1/2" (9 cm) from the top of both
the middle (11) and bottom (10) pole
sections.
#12 #11
3 1/2"
(9 cm)
3 1/2"
(9 cm)
#10
CAUTION
WHEN PROPERLY POUNDED TOGETHER, THE POLE SECTIONS SHOULD HAVE A 3 1/2" (9 CM) OVERLAP.
IF MINIMUM POLE ENGAGEMENT OVERLAP OF 3 1/2" (9 CM) CANNOT BE ACHIEVED !! STOP !! DO
NOT PROCEED TO THE NEXT STEP! - CALL SPALDING CUSTOMER SERVICE AT 1-800-558-5234 FOR
ASSISTANCE.
3. Align the top (12) pole section with the middle (11) pole section and slide together.
4. Bounce the assembled sections on a scrap wood board until the overlap reaches the marked line.
#11
#12
#12
#11
#11
#12
3 1/2"
(9 cm)
