Elevator Assembly
19
D

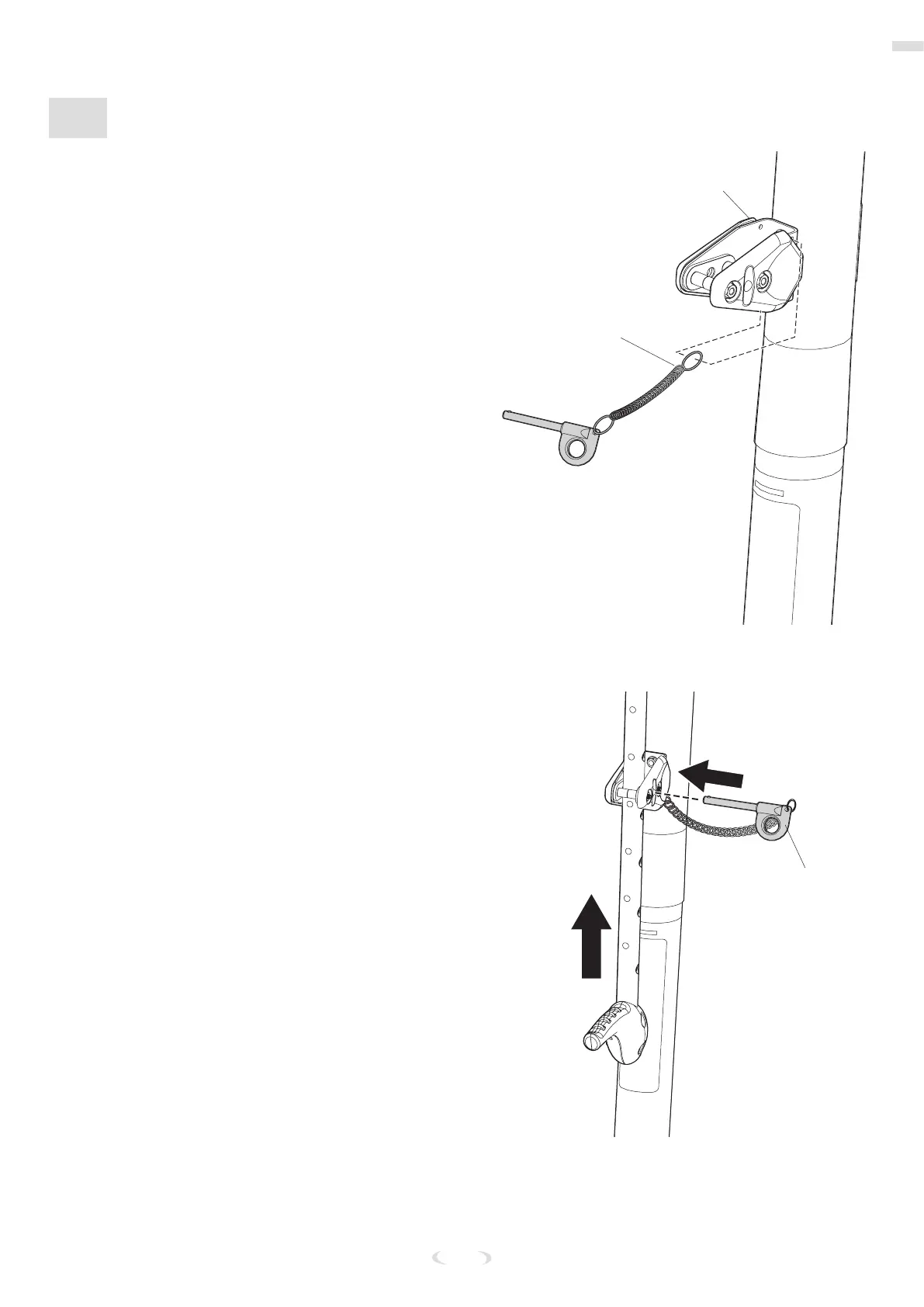

INSTALL THE ELEVATOR ASSEMBLY
4. Check the two bolts on the pre-assembled
lift bracket (22) for tightness.
5. Connect the end of the pin lanyard (25) to
the hole on the bracket (22).
#22
#25
6. Insert the handle assembly through the
pole mount assembly.
7. Lock the pole assembly in place at the 10'
(3.05 m) mark with the pin (24).
#24
