Assemble the Backboard
23
E

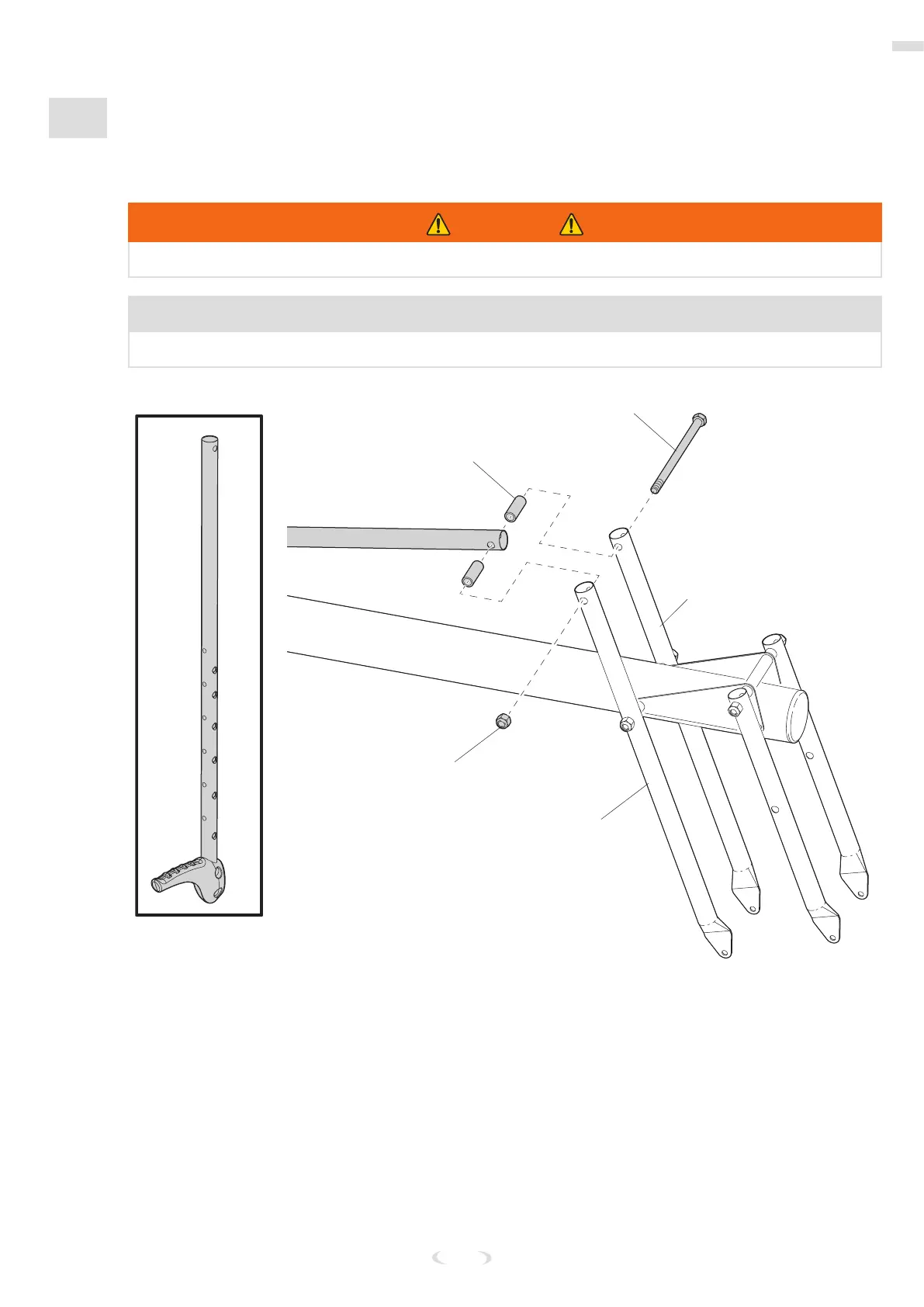

ATTACH THE ELEVATOR TUBE ASSEMBLY
5. Attach the handle assembly to the lower elevator tubes (32) using the bolt (37), spacers (41), and
nut (39).
WARNING
TIGHTEN THE BOLT (37) IN THE LOCK NUT (39) UNTIL FLUSH (EVEN) WITH THE LOCK NUT’S OUTER EDGE.
NOTE
Before moving on to the next step, make sure the adjustable system assembly is set to the 10' (3.05 m) setting.
#32
#39
#32
#41
#37
