Assemble the Backboard
26
F

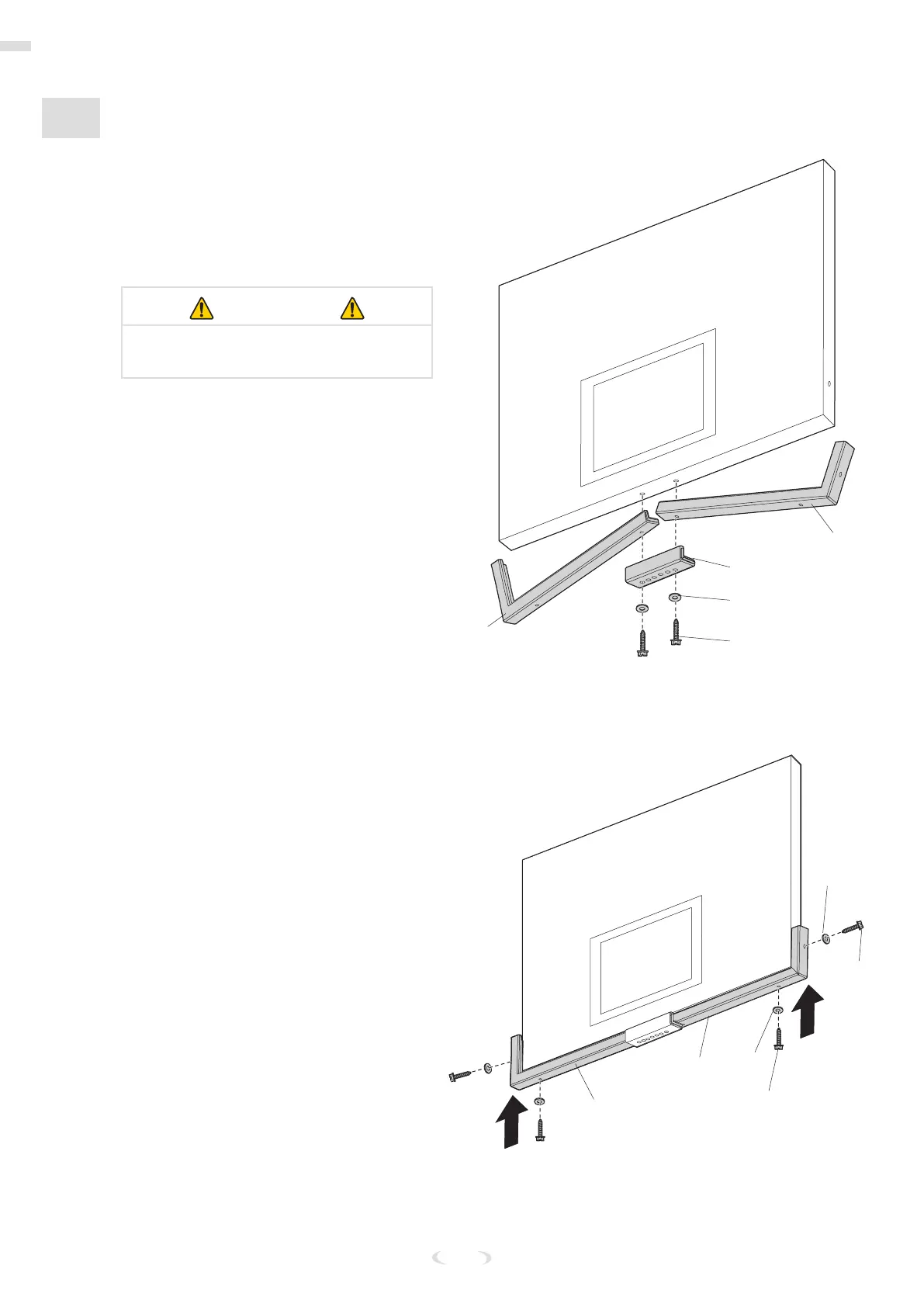

INSTALL THE BOARD PAD
1. Align the left (59), right (60), and
center (61) pad sections with the
holes in the board.
2. Secure the center (61) board pad
in place using the screws (62) and
washers (49).
IMPORTANT
Part #201580 (61) is not used on 44"
acrylic backboards.
#59
#60
#61
#62
#49
3. Attach the left (59) and right (60)
pad sections to the board using the
screws (63) and washers (49).
#59
#60
#63
#63
#49
#49
