Elevator Assembly
18
D
INSTALL THE ELEVATOR ASSEMBLY

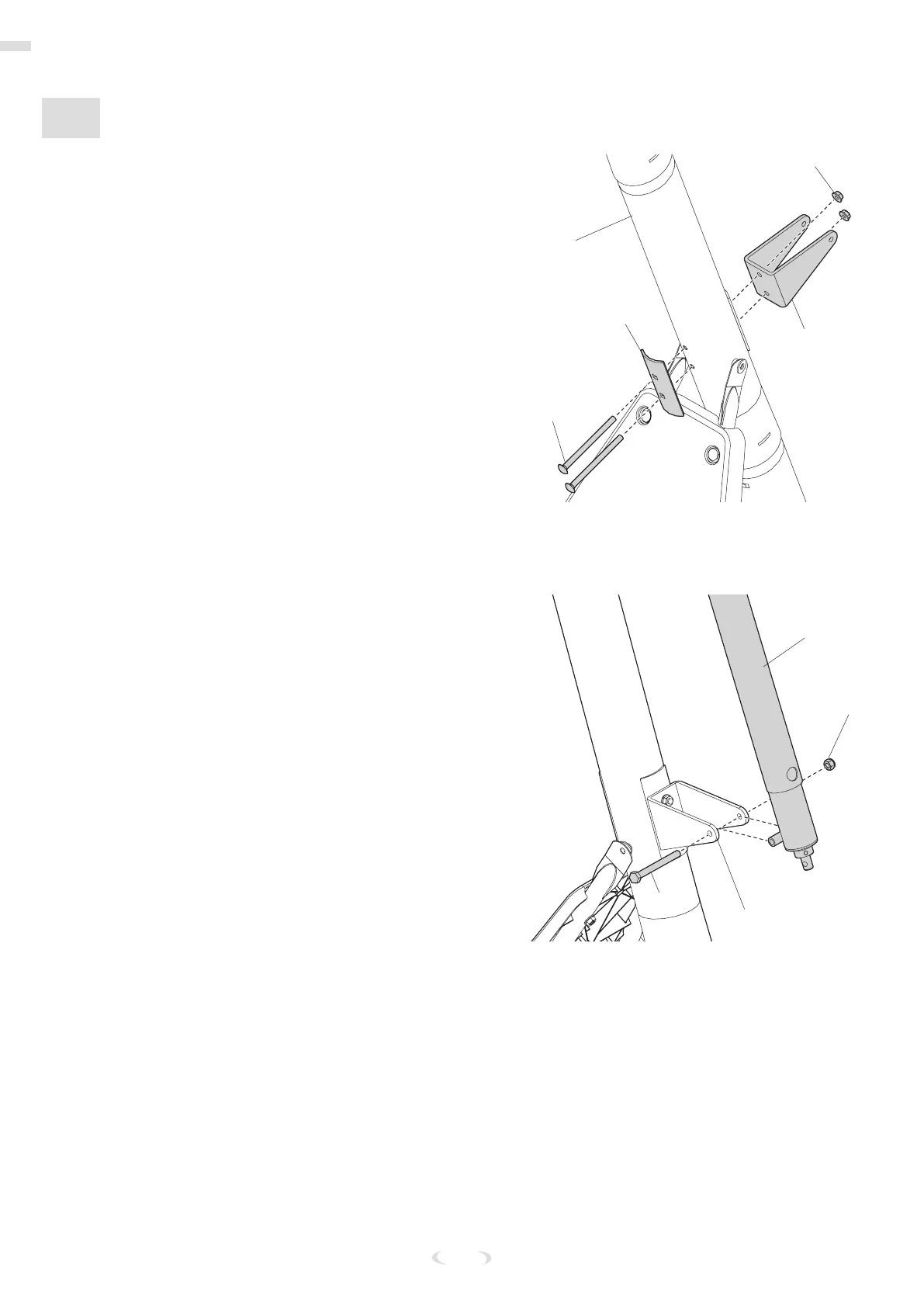

3. Install the pole mount bracket (15) and the
reinforcement bracket (42) to the middle pole
(5) using the carriage bolts (16) and ange
nuts (14).
4. Tighten the ange nuts (14) completely.
#5
#14
#16
#42
#15
5. Attach the screw-jack sleeve (17) to the pole
bracket (15) using bolt (20) and nut (10).
#15
#20
#17
#10
To Next Page
