Test-Fit Close Tolerance Bolts
4

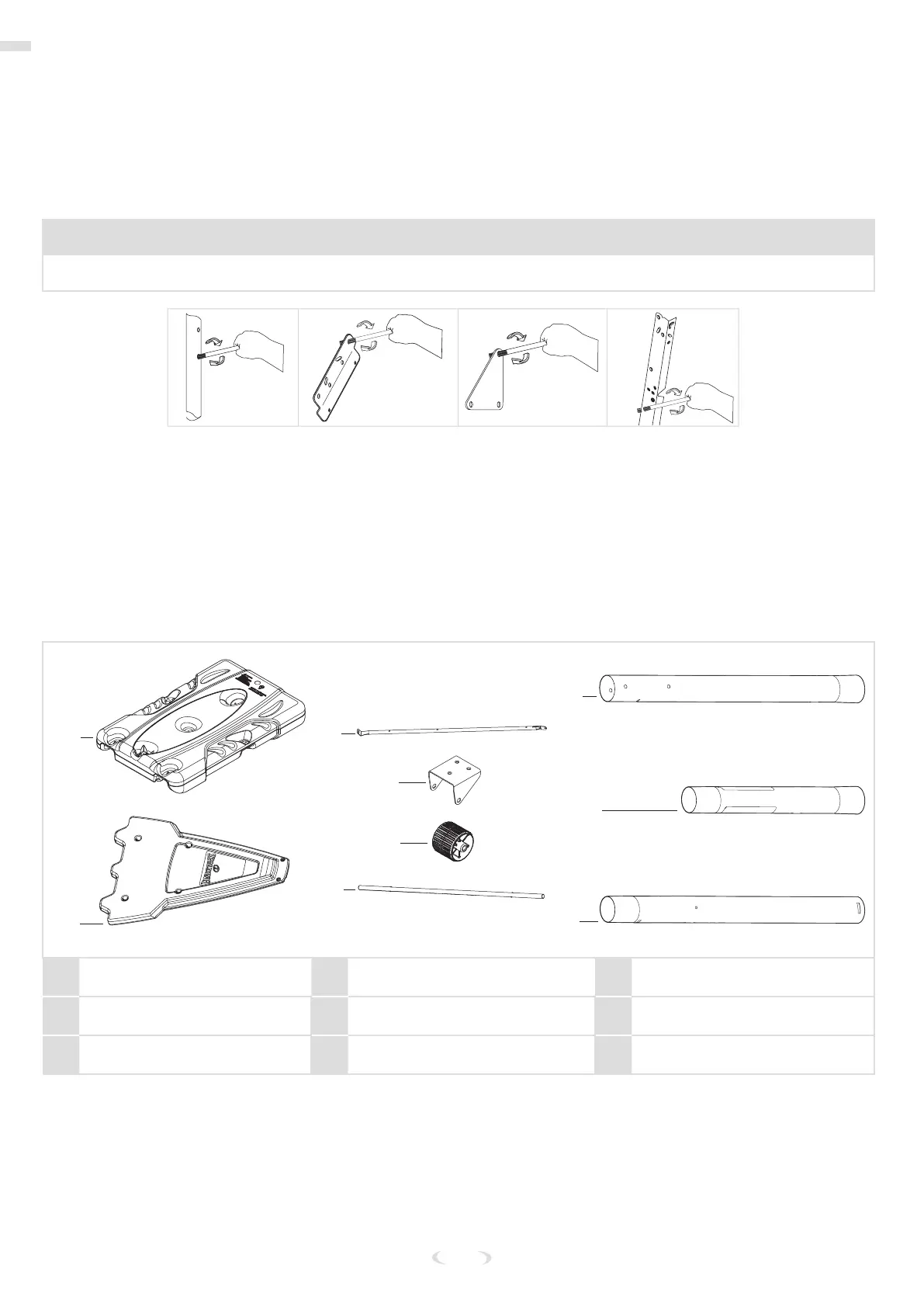

Test-Fit Close Tolerance Bolts
To ensure optimal playability of the backboard system, a close tolerance t between the elevator components and
hardware is required. Test-t large bolts into large holes of elevator tubes, backboard brackets, and triangle plates.
Carefully rock them in a circular motion to remove any excess paint from holes, if necessary.
NOTE
Not all items pictured are included with every model.
Package Contents
Check the contents of each kit and other parts to ensure that all components are present. Keep the kit hardware in
the labeled bag as they will be used in different assembly steps.
See "Parts List" on page 33 for a complete list of replacement part numbers.
BASE ASSEMBLY
#4
#6
#5
#1
#21
#7
#8
#9
#2
1 Base (x1) 2 Strut, Pole to Base (x2) 4 Top Pole, Black (x1)
5 Middle Pole, Black (x1) 6 Bottom Pole, Black (x1) 7 Wheel Bracket, Steel (x2)
8 Wheel, 3.5", Plastic, Black (x2) 9 Rod, Axle (x1) 21 Front Cover (x1)
