SPALDING BC0105 - Elevator Assembly

Elevator Assembly
17
Elevator Assembly
Required Parts: Completed Elevator Assembly:
• Kit 3
• Socket Wrench or Wrench
D
INSTALL THE ELEVATOR ASSEMBLY
1. Securely rest the assembly on a sawhorse.

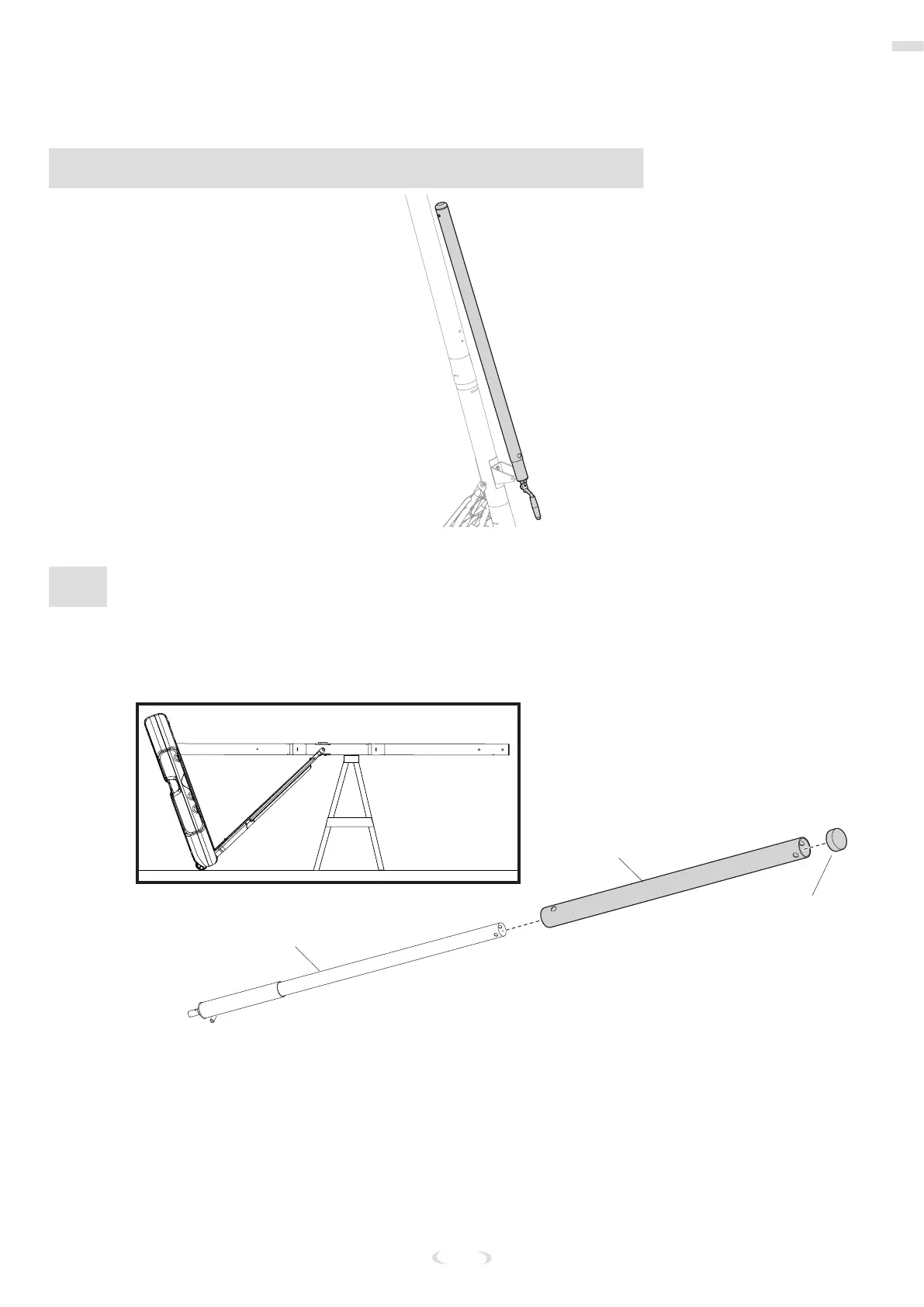

2. Slide the screw-jack sleeve (17) over the screw jack assembly (55) and attach the cap (51) to the
top end.
#51
#17
#55
