SPALDING BC0105 - Goal Assembly

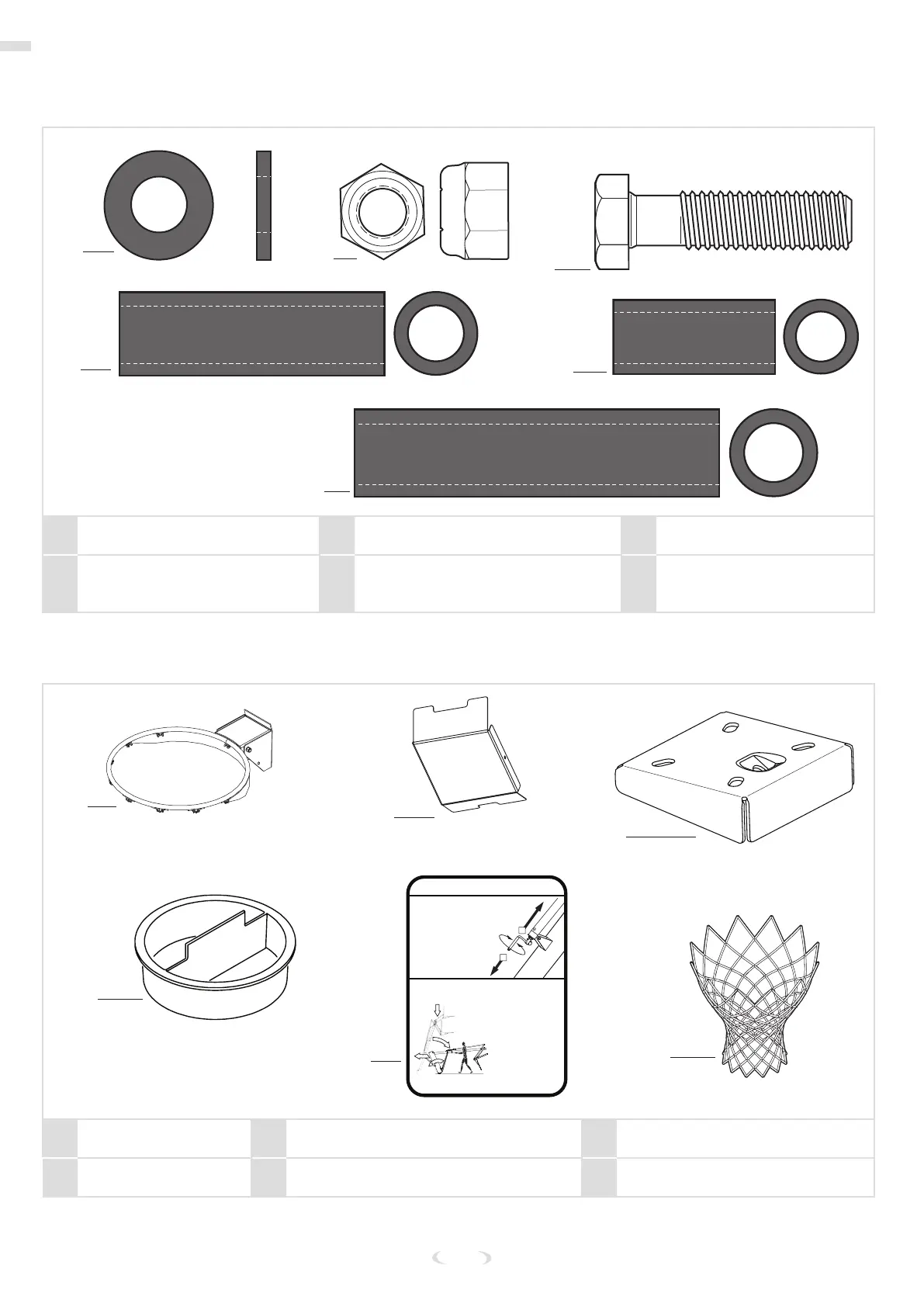

Package Contents
8
KIT 5 – BACKBOARD – 210504
#30
#50
#23
PN 205679 BOLT,HEX HD 1/2-13 X 2", 1.5”THREAD, ZINC PLTD
#49
#31
#36
23 Bolt, Hex Head, 1/2-13 x 2 Long (x4) 30 Spacer, Plastic, 0.50 I.D. x 0.13 Long (x4) 31 Lock Nut, Hex 1/2-13 (x8)
36 Spacer, Plastic, 0.53 ID x 2.38 L (x2) 49 Spacer, 0.53 ID x 0.75 OD x 3.25 L (x1) 50
Spacer, 0.5 ID x 0.98 OD x 1.64
L (x4)
GOAL ASSEMBLY
568091 11/07
HEIGHT ADJUSTMENT
4" Wide
5-1/2" Tall
MOVING SYSTEM
Adjust basketball backboard
height to lowest position.
While holding pole, rotate
basketball system forward
until wheels engage with
ground.
Move basketball system to
desired location.
Carefully rotate basketball
system upright.
1.
2.
3.
4.
5.
Check system for stability.
4
2
1
3
Rotate crank handle to raise and
lower backboard.
Do not over crank handle beyond the
manufactured height indicator range
of 7-1/2 - 10 feet.
Damage may be caused to the
screw jack’s internal adjustment
mechanism if adjusted over 10 or
under 7-1/2 feet.
A
B
#33
#28
#44
#34
#43
203617
#41
34 Rim (x1) 28 Cover Plate, Rim (x1) 44 Bracket, Slam Jam, Square, Black (x1)
41 Cap, for Base (x1) 33 Label, Height Adjustment and Moving (x1) 43 Net (x1)
