ASSEMBLE THE GOAL

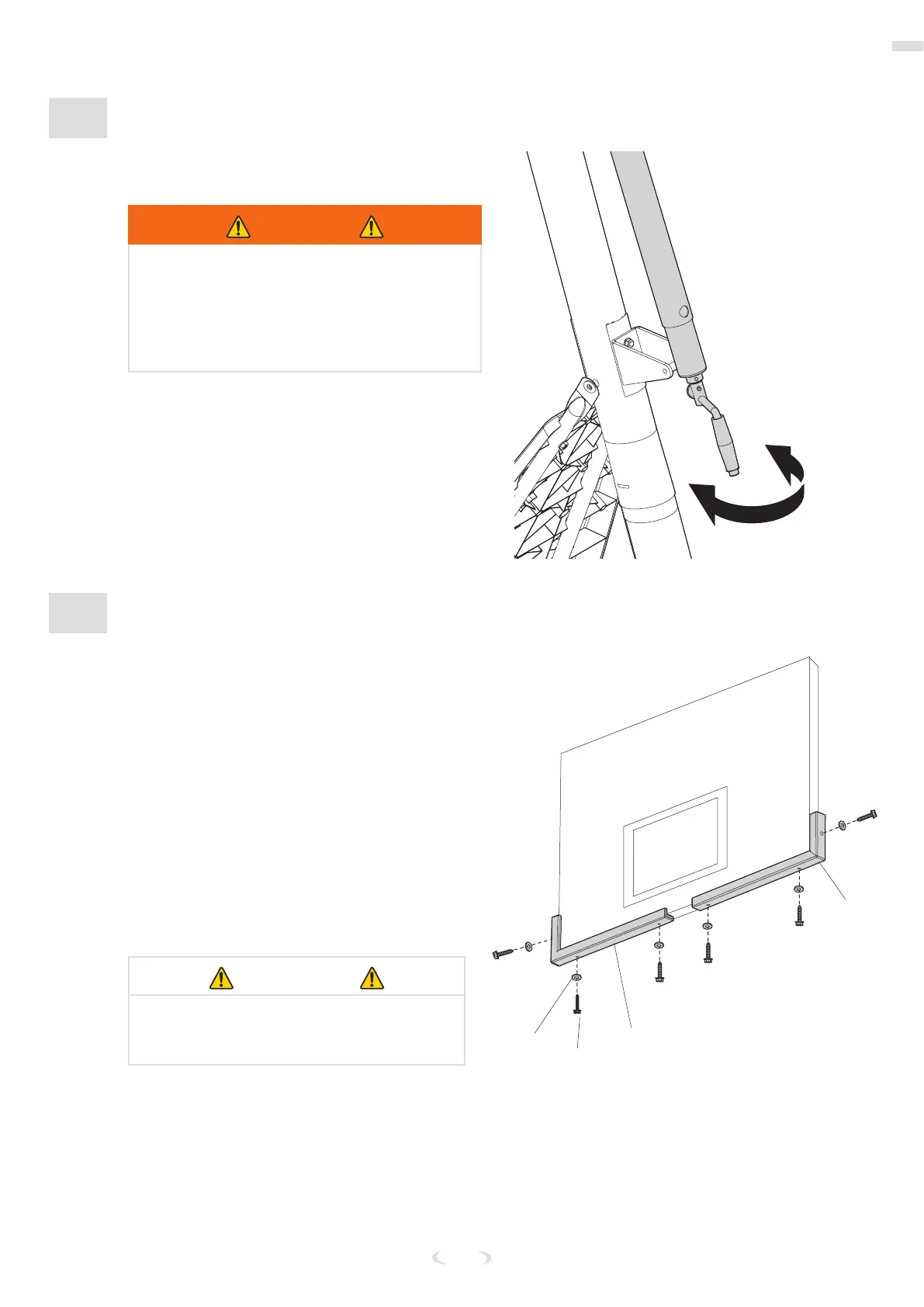

13. Rotate the crank handle to move the
backboard up or down to the desired height.
WARNING
DO NOT ALLOW CHILDREN TO ADJUST THE
HEIGHT.
DO NOT OVER CRANK THE HANDLE BEYOND
THE HEIGHT INDICATOR RANGE OF 7-1/2 TO 10
FEET OR THE ADJUSTMENT MECHANISM MAY BE
DAMAGED.
I
ATTACH THE BOARD PADS
1. Check the t of the edge guards and
reposition slightly if necessary. It may be
necessary to trim away some material to
achieve a proper t around the goal and
supports.
2. Using a 5/16" socket wrench or portable
drill with a 5/16" socket attachment
with the torque adjustment at the lowest
setting, fasten the edge guards in place
with the provided self-drilling, self-
tapping screws (59).
3. If the ends of the screws are exposed
after installation, place the screw
protectors (60) over the ends to prevent
injury.
IMPORTANT
COLLECT ANY METAL SHAVINGS THAT MAY
HAVE FALLEN ONTO THE FLOOR OR DRIVEWAY
TO PREVENT INJURY.
#56
#58
#59
#57
