15
4.

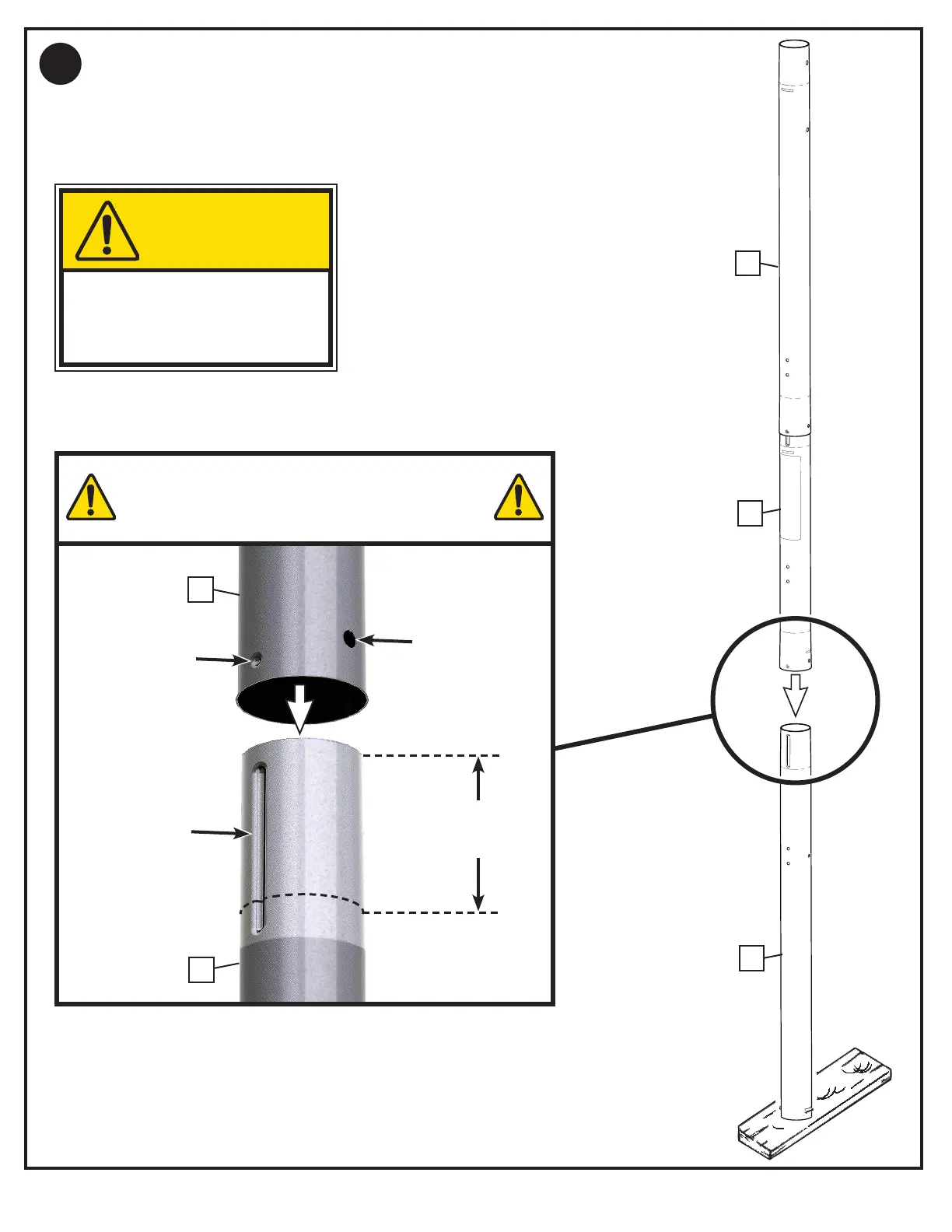

While maintaining alignment of dimple and trough, bounce top and middle pole
assembly (4 and 5) onto bottom pole section (6) using a wood scrap as shown.
Bounce until the top and middle pole assembly (4 and 5) is aligned with the
marked line on the bottom pole (6).
You should have a 3 1/2” (8,9 cm) of overlap when properly assembled.
5
4
6
MARKED LINE
6
MIDDLE POLE
5
HOLE
(NOT USED
IN ASSEMBLY)
IMPORTANT!
Align dimple of middle pole section (5) into
trough of bottom pole section (6) as shown.
MIDDLE POLE
TOP POLE
BOTTOM POLE
BOTTOM POLE
MARK LINE
3 1/2”
(8,9 cm)
CAUTION!
WHEN PROPERLY POUNDED
TOGETHER, THE POLE SECTIONS
SHOULD HAVE A 3-1/2” (8,9 CM)
OVERLAP.
Wood Scrap
(not supplied)
DIMPLE
TROUGH
To Next Page
