5.

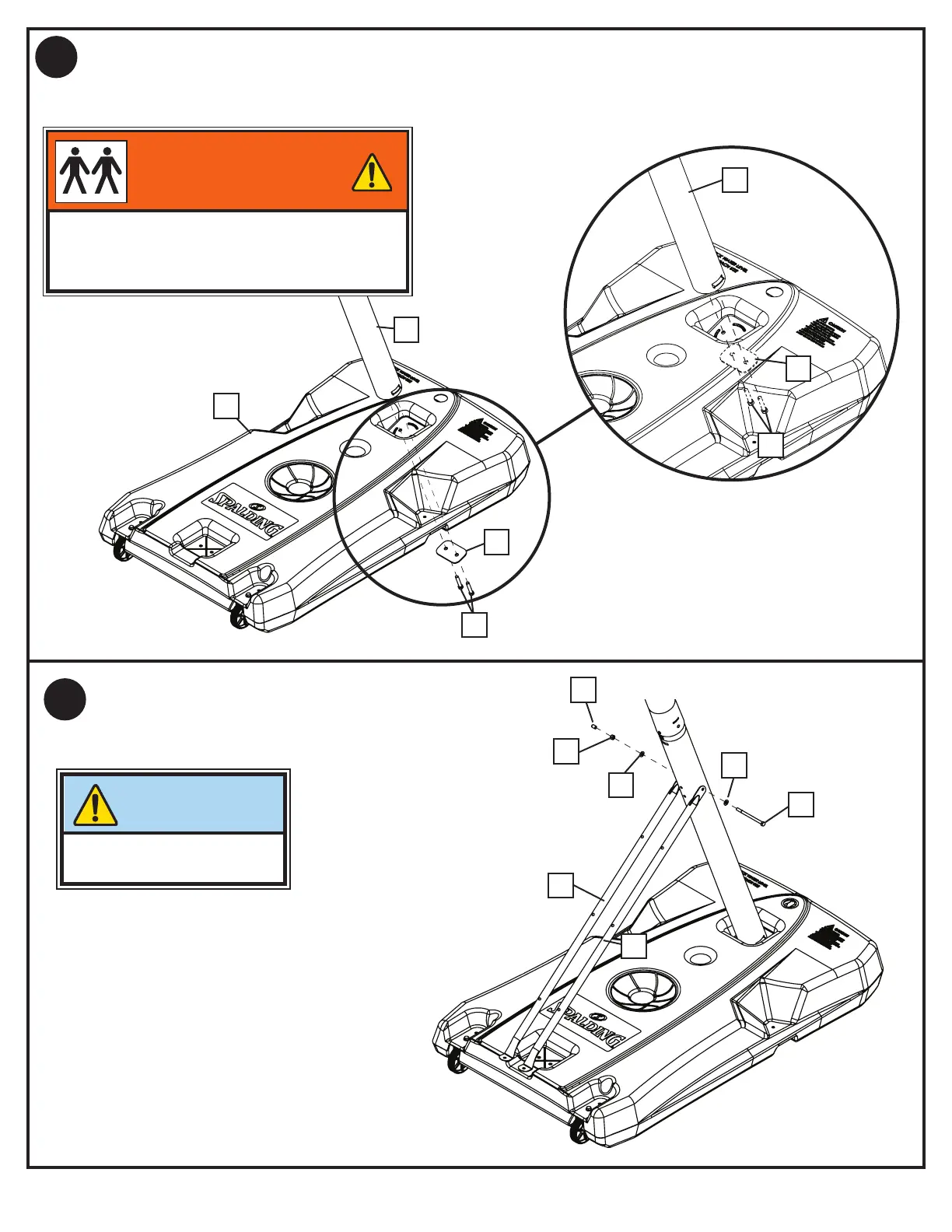

Attach pole assembly to base (1) as shown.
Secure pole assembly to base using bolts (50) and pole mounting bracket (49) as shown.
6
49
6
1
50
50
WARNING!
TWO PEOPLE REQUIRED FOR THIS
PROCEDURE. FAILURE TO FOLLOW THIS
WARNING COULD RESULT IN SERIOUS INJURY
AND/OR PROPERTY DAMAGE.
6.
Secure base struts (2) to pole as shown.
Place cover (52) over exposed end of bolt as shown.
12
52
10
51
51
2
2
IMPORTANT!
DO NOT TIGHTEN
COMPLETELY
49
To Next Page
