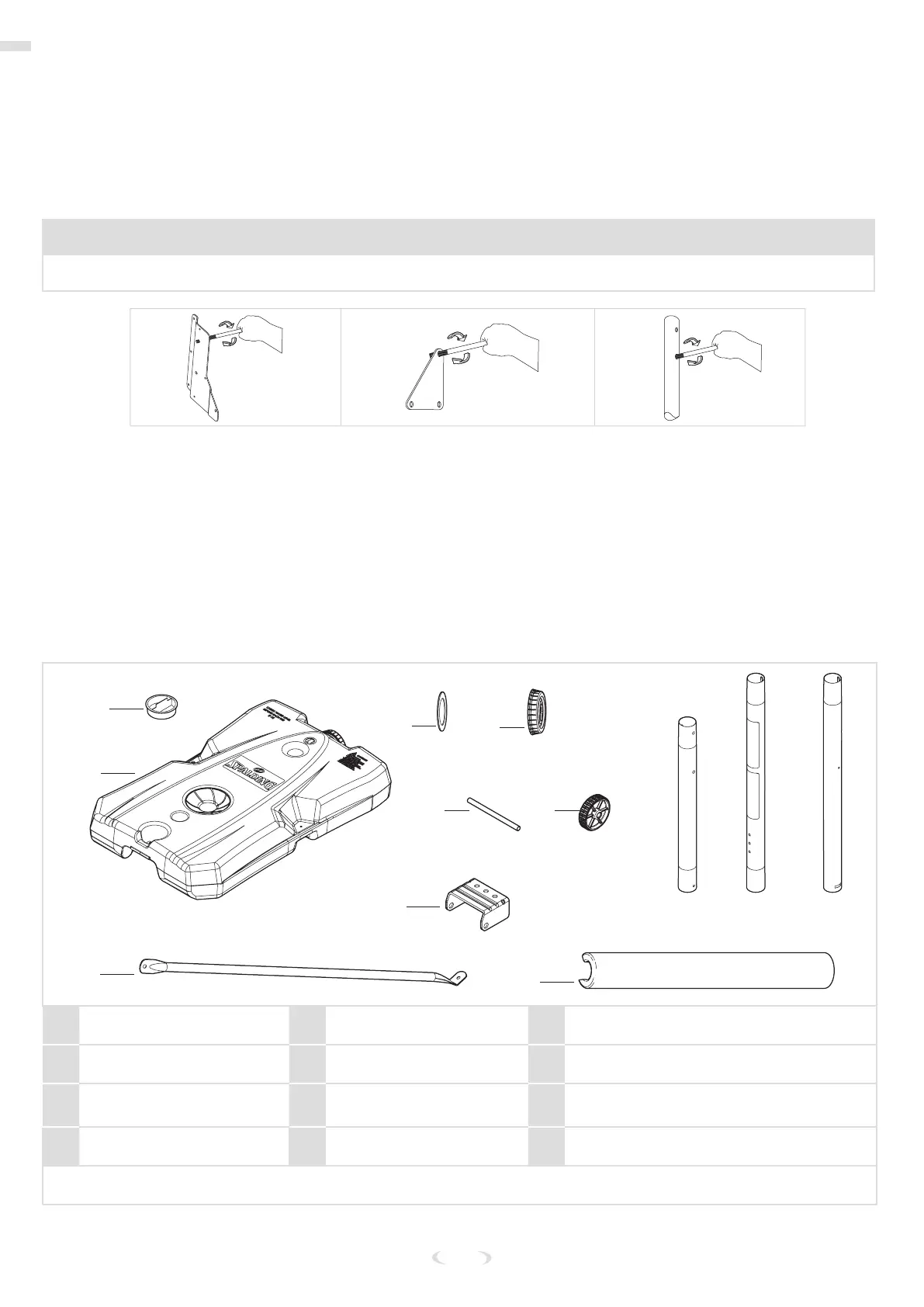

Test-Fit Close Tolerance Bolts
4
Test-Fit Close Tolerance Bolts
To ensure optimal playability of the backboard system, a close tolerance t between the elevator components and
hardware is required. Test-t large bolts into large holes of elevator tubes, backboard brackets, and triangle plates.
Carefully rock them in a circular motion to remove any excess paint from holes if necessary.
NOTE
Not all items pictured are included with every model.
Package Contents
Check the contents of each kit and other parts to ensure all components are present. Keep the kit hardware in the
labeled bag as they will be used in different steps of assembly.
See "Parts List" on page 29 for a complete list of replacement part numbers.
BASE ASSEMBLY
#1
#24
#10
#19
#48
#45
#2
#23
#3
#4 #5 #6
1 Base (x1) 2 Wheel, Axle (x1) 3 Wheel, 4" (x2)
4 Top Pole (x1) 5 Middle Pole (x1) 6 Bottom Pole (x1)
10 Tank Strut (x2) 19 Wheel Bracket (x1) 23 Cap, Base, Screw Cap, Large, 5.5” Dia. (x1)
24 Cap, Base (x1) 45 Gasket, Screw Cap (x1) 48 Pole Pad (x1)*
* Parts may not be included with all models
