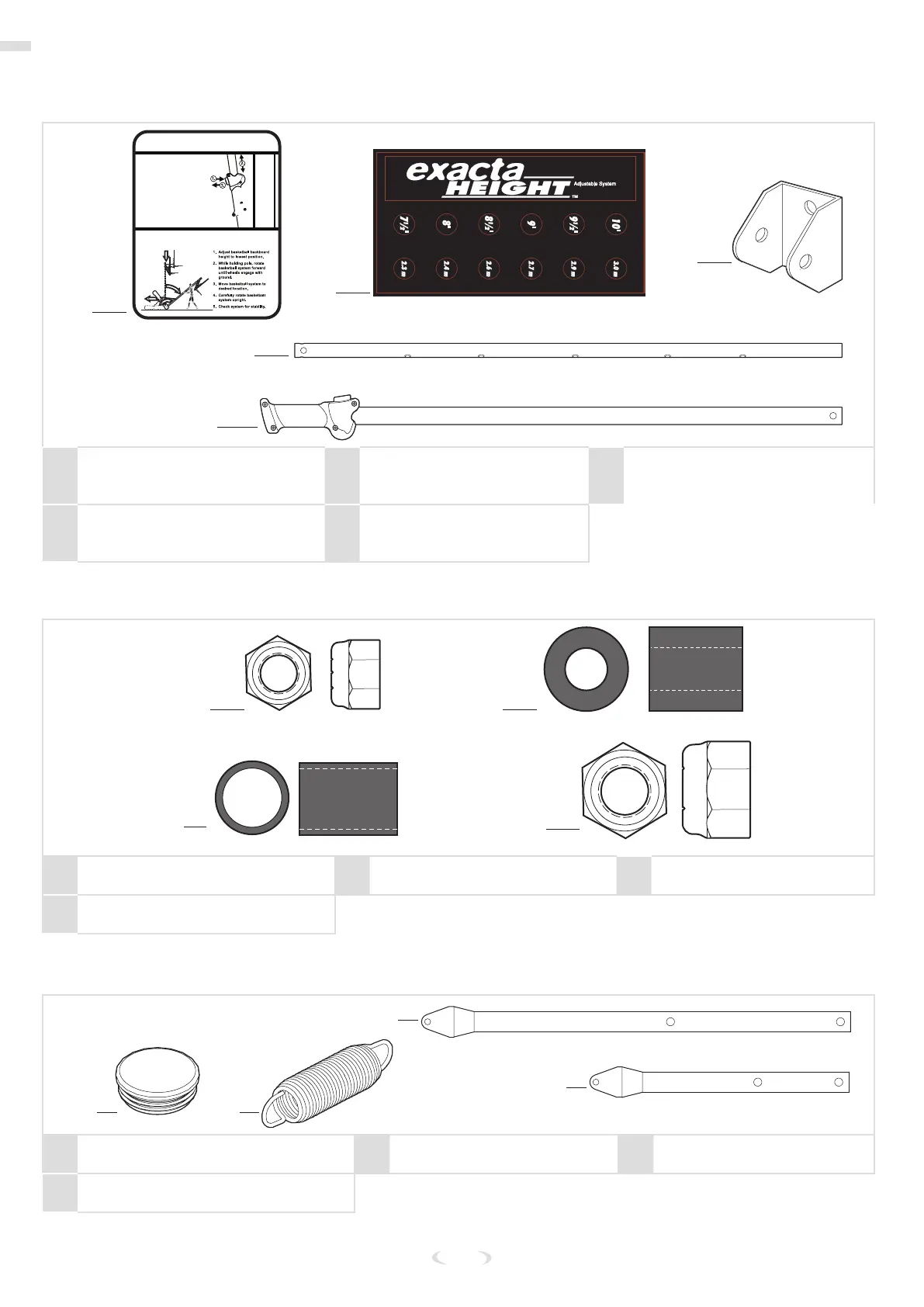

Package Contents
6
ELEVATOR ADJUSTMENT ASSEMBLY
MOVING SYSTEM
HEIGHT ADJUSTMENT
TO ADJUST BACKBOARD:
1. Grasp handle and press button.
2. Raise or lower to desired height.
3. Release button.
P/N 204872
#21
#37
#39
#38
#27
21
Label, Height Adjustment and
Moving (x1)
27 Pole Mount Bracket (x1) 37 Label, Height Indicator (x1)
38
Tube Assembly w/Handle,
Adjustment, Outer (x1)
39 Tube, Adjustment, Inner (x1)
KIT 3 – 209159
#9
#29
#40
#20
9 Nut, Nylock, 3/8-16 (x2) 20 Spacer, .38 ID x .83" Long (x4) 29 Spacer, .530 ID x .88" Long (x2)
40 Nut, Nylock 1/2-13 (x4)
BACKBOARD ASSEMBLY
#22 #44
#41
#42
22 Cap, Pole Top 3.0" (x1) 41 Elevator Tube, Lower (x2) 42 Elevator Tube, Upper (x2)
44 Spring, Elevator (x1)
