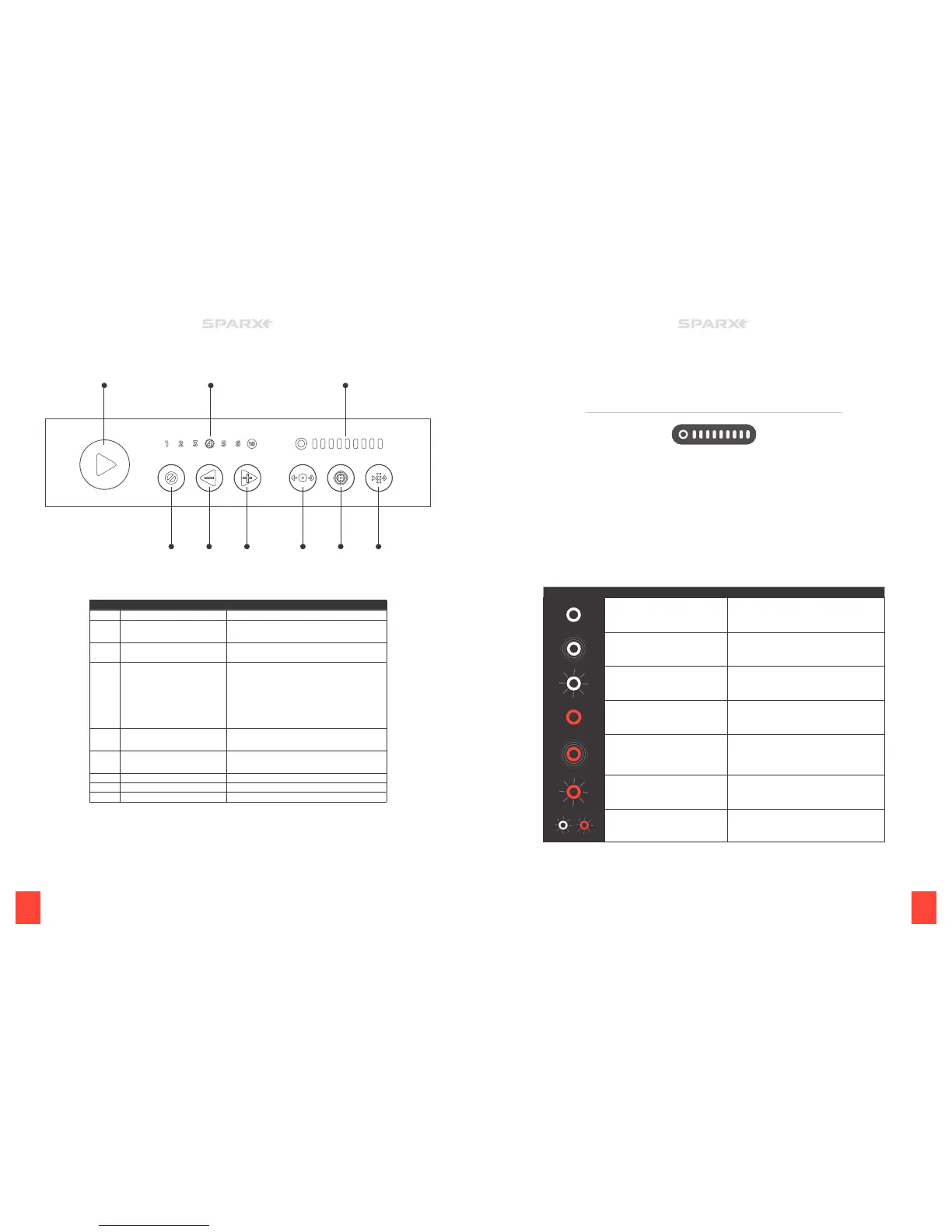

PART BUTTON DESCRIPTION
A Play
Initiates the sharpening.
B Cycle Counter
• Shows the current number of cycles selected.
• Shows error codes.
C Grinding Ring Life Indicator
Indicates Grinding Ring life status. See Grinding Ring
Life Indicator Behavior table on page 13.
D Cancel / Error
• Push 1 time to stop the Carriage at the conclusion of
the current pass.
• Push 2 times for emergency stop, motor stops
immediately.
• When illuminated red, the sharpener is in an error
state, see Troubleshooting section of manual.
E Minus Cycles / Move Left
• Subtracts cycles from the Cycle Counter.
• If in Move Mode, moves Carriage to the left.
F Add Cycles / Move Right
• Adds cycles from the Cycle Counter.
• If in Move Mode, moves Carriage to the right.
G Move
Initiates Move Mode.
H Alignment
Initiates Alignment Mode.
J Air Filter
Indicates replacement needed.
A
Jf HE GD
B C
ICON ACTION DESCRIPTION
Circle is white and steady.
The Grinding Ring has more than 10% of life
remaining.
Circle is white and pulsing.
Grinding Ring has less than 10% of life remaining.
We Recommend that the user order a replacement
Grinding Ring by visiting www.sparxhockey.com.
Circle is white and blinking.
User has attempted to start Alignment Mode while a
Grinding Ring is installed.
Circle is red and steady. No Grinding Ring installed.
Circle is red and pulsing.
During sharpening, the Grinding Ring has less than
10% of life remaining. We Recommend that the user
order a replacement Grinding Ring by visiting www.
sparxhockey.com.
Circle is red and blinking. Grinding Ring is Empty.
Circle half red/half white - alternate
blinking.
User has attempted to sharpen with a cycle count
greater than the number of cycles remaining on the
Grinding Ring.
GRINDING RING LIfE
INDICATOR BEHAVIOR
In normal operation, each part of the Grinding Ring Life Indicator corresponds to 10% of the
Grinding Ring’s life. These parts are the one circle and the nine bars to the right (10 parts
total or 100%). The circle represents the final 10% of Grinding Ring life and each bar to the
right is an additional 10% . When a part is illuminated, that corresponding 10% life is present
on the Grinding Ring. When the part is no longer illuminated that amount of the wheel life
has been consumed.
The circle of the Grinding Ring Life Indicator can also behave in other ways to indicate
dierent operating conditions to the user. Refer to the table below for more information.
