SETUPSETUP 1312
11 INSTALL THE GRINDING RING
While holding the Grinding Ring Shaft (C), slide the Grinding
Ring (B) on the Grinding Ring Shaft (C), label facing out, and
replace and tighten the Thumb Nut (A) until hand-tight. Close
the Glass Door.
A
B
C
3 INITIATE ALIGNMENT MODE
Press the
c
Alignment Button to send the Carriage to its
alignment position. When the Carriage is in place, a tone will
sound and the case will illuminate blue.
4 LOCATE THE TAB AND GROOVE
Look through the eyepiece of the Optical Alignment Tool and
locate the indicator tab (A) of the Optical Alignment Tool and
the groove (B) on the Alignment Ring.
5 INSPECT THE ALIGNMENT
If the indicator tab of the Alignment Tool is not aligned with the
groove on the Alignment Ring (as shown below), move to step 6.
If the indicator tab of the Alignment Tool is aligned with the
groove on the Alignment Ring (as shown below) skip to step 8.
A
B

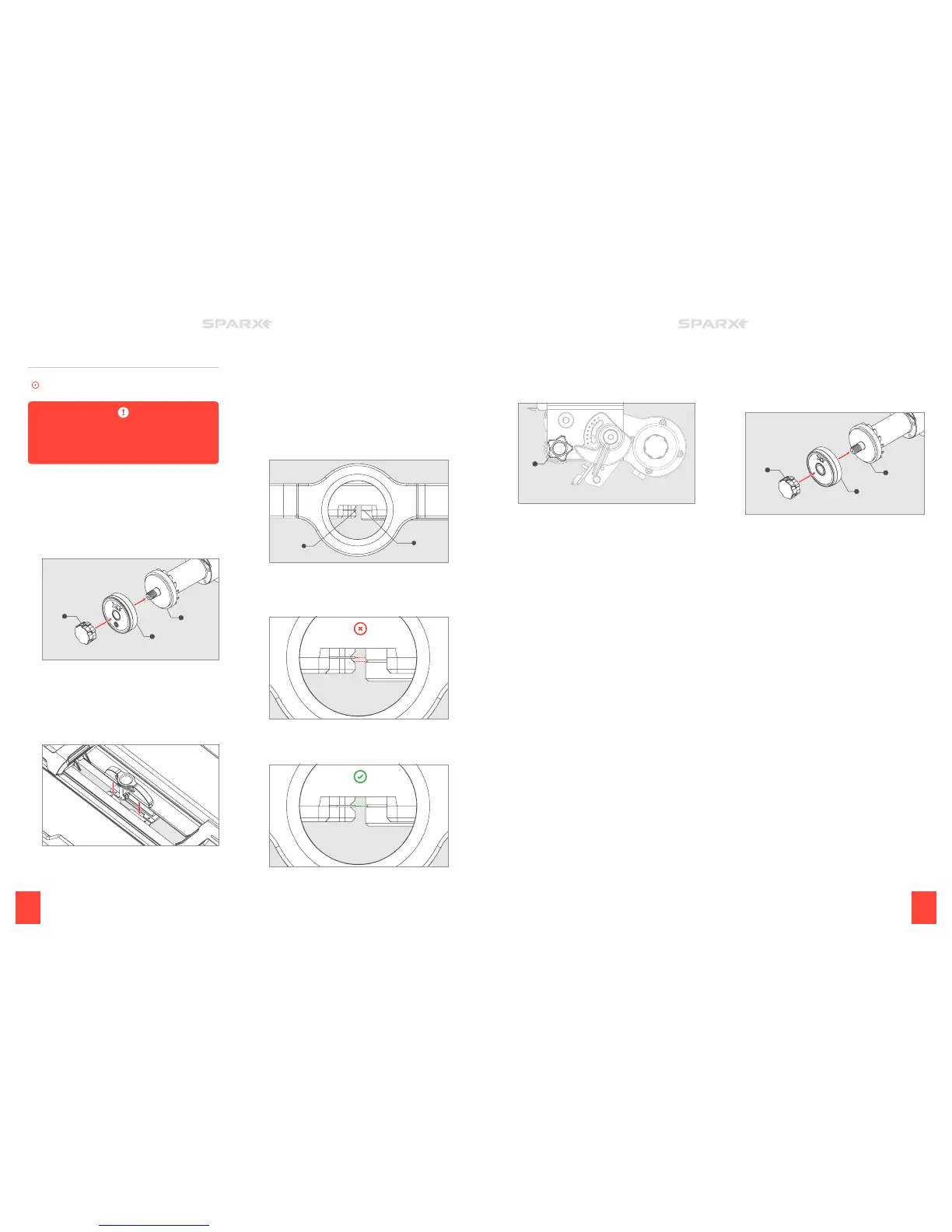

ALIGNMENT
To watch the How-To video, visit sparxhockey.com/alignment.
The Alignment process is required when you first receive
your Sparx™ Sharpener and also after every time the
sharpener is moved and/or travels.
1 INSTALL THE ALIGNMENT RING
Open the Glass Door. The Carriage will automatically move into
the install position, and the sharpener will play a “ready” tone.
While holding the Grinding Ring Shaft (C), unscrew the Thumb
Nut (A). Slide the Alignment Ring (B) onto the Grinding Ring
Shaft (C), with the label facing out. Replace and tighten the
Thumb Nut until hand-tight. Close the Glass Door.
2 INSTALL THE OPTICAL ALIGNMENT TOOL
Press down on the Clamp Lever to open the Skate Clamp.
Place the Optical Alignment Tool (with Sparx™ logo facing
towards the user) into the Skate Clamp. Place the Optical
Alignment Tool into the slot and let it fall into place. Release
the Clamp Lever.
A
B
C
6 LOCATE THE ALIGNMENT
ADJUSTMENT KNOB
Open the Glass Door and locate the gray
y
Alignment
Adjustment Knob (A) inside of the sharpener.
7 ADJUST THE ALIGNMENT
While looking through the Optical Alignment Tool, turn the
Alignment Adjustment Knob until the groove on the
Alignment Ring (right) lines up with the indicator tab of the
Alignment Tool (left), as shown in step 5. Close the Glass Door
when aligned.
8 END ALIGNMENT MODE
End Alignment Mode by pressing the
c
Alignment Button.
9 REMOVE THE OPTICAL ALIGNMENT TOOL
Press down on the Clamp Lever to open the Skate Clamp.
Remove the Optical Alignment Tool.
10 REMOVE THE ALIGNMENT RING
Open the Glass Door. The Carriage will automatically move into
the install position and the sharpener will play a “ready” tone.
While holding the Grinding Ring Shaft, unscrew the Thumb Nut
and remove the Alignment Ring.
A
