16 CHANNEL, FULLY CONFIGURABLE POWER AMPLIFIERS
CONFIGURATION AND SETUP TOOL
AMPLIFIER CONFIGURATION MAIN SELECTION – CHANNEL
POWER SUB SELECTION
Choose the Channel Power sub selection and the Channel Power page is
displayed. All odd numbered amplier channels are congurable to output
either 50 watts or 100 watts. Odd channels are listed along with two checkbox
columns. The rst checkbox column is named 100 watts and the second is
named 50 watts.
Note: If an odd numbered channel is set to 100 watts, that channels adjacent
even number channel is listed inactive (e.g. when channel 15 is set to 100 watts,
channel 16 is listed as inactive).
1. Select either 100 watts or 50 watts for each of the odd numbered channels.
2. Select Save to save the Channel Power settings to the amplier’s memory.
Default Setting: 50W (All channels on)

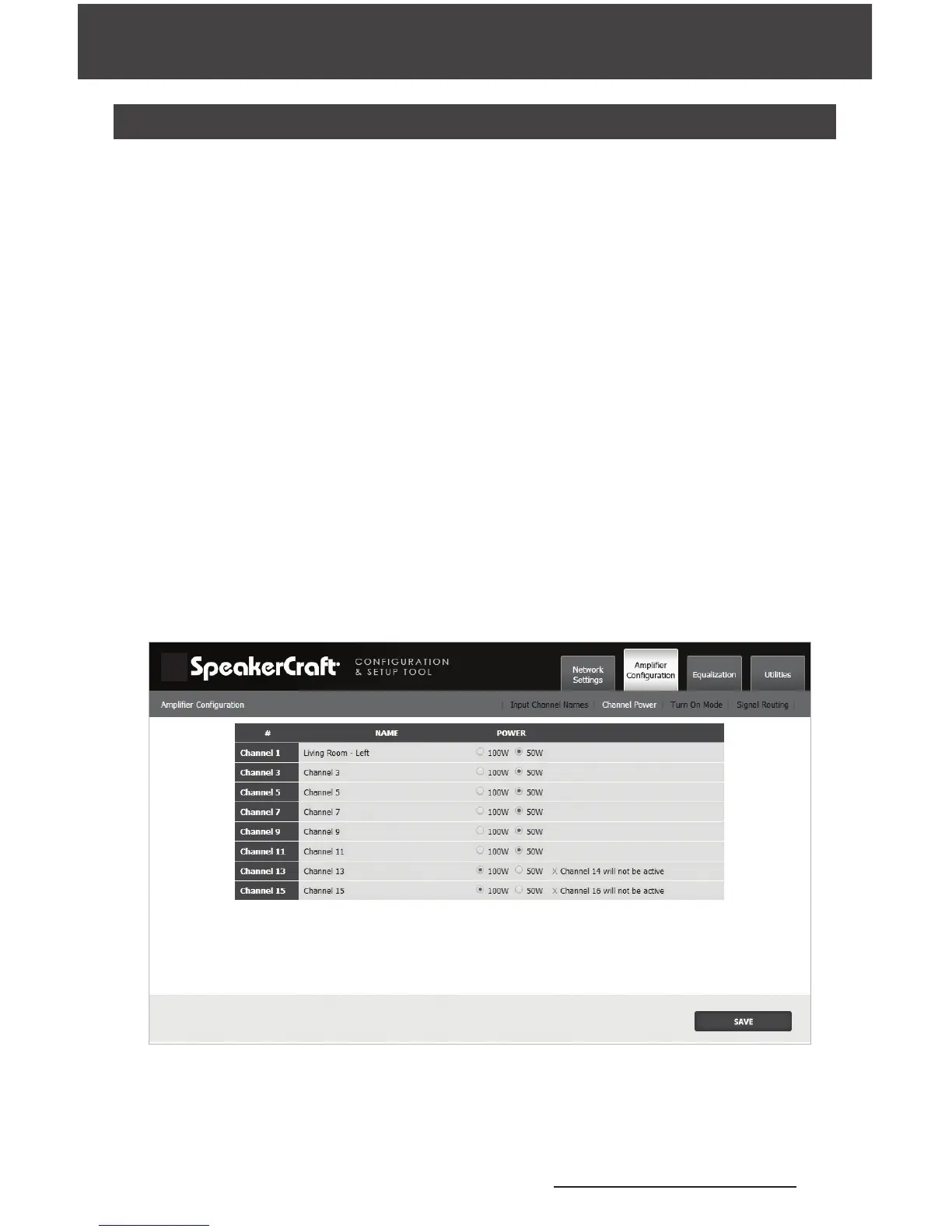

FIGURE 10
To Next Page
