16 CHANNEL, FULLY CONFIGURABLE POWER AMPLIFIERS
CONFIGURATION AND SETUP TOOL
AMPLIFIER CONFIGURATION MAIN SELECTION –
SIGNAL ROUTING SUB SELECTION
Choose the Signal Routing sub selection and the Signal Routing page is
displayed. All 16 amplier channels are listed on the left with their names and
currently selected input shown to the right.
Note: Even numbered channels are listed inactive if their adjacent odd
numbered channel is set to 100 watts (e.g. when channel 15 is set to 100 watts,
channel 16 is listed as inactive).
1. Use the pull down list of available inputs to assign a different input signal
to any channel. All available inputs and possible input combinations are
included in the pull down list along with their names (e.g. inputs 1 through 16,
inputs 1+2, inputs 3+4, inputs 5+6, etc.).
2. Select Save to save Signal Routing to the amplier’s memory.

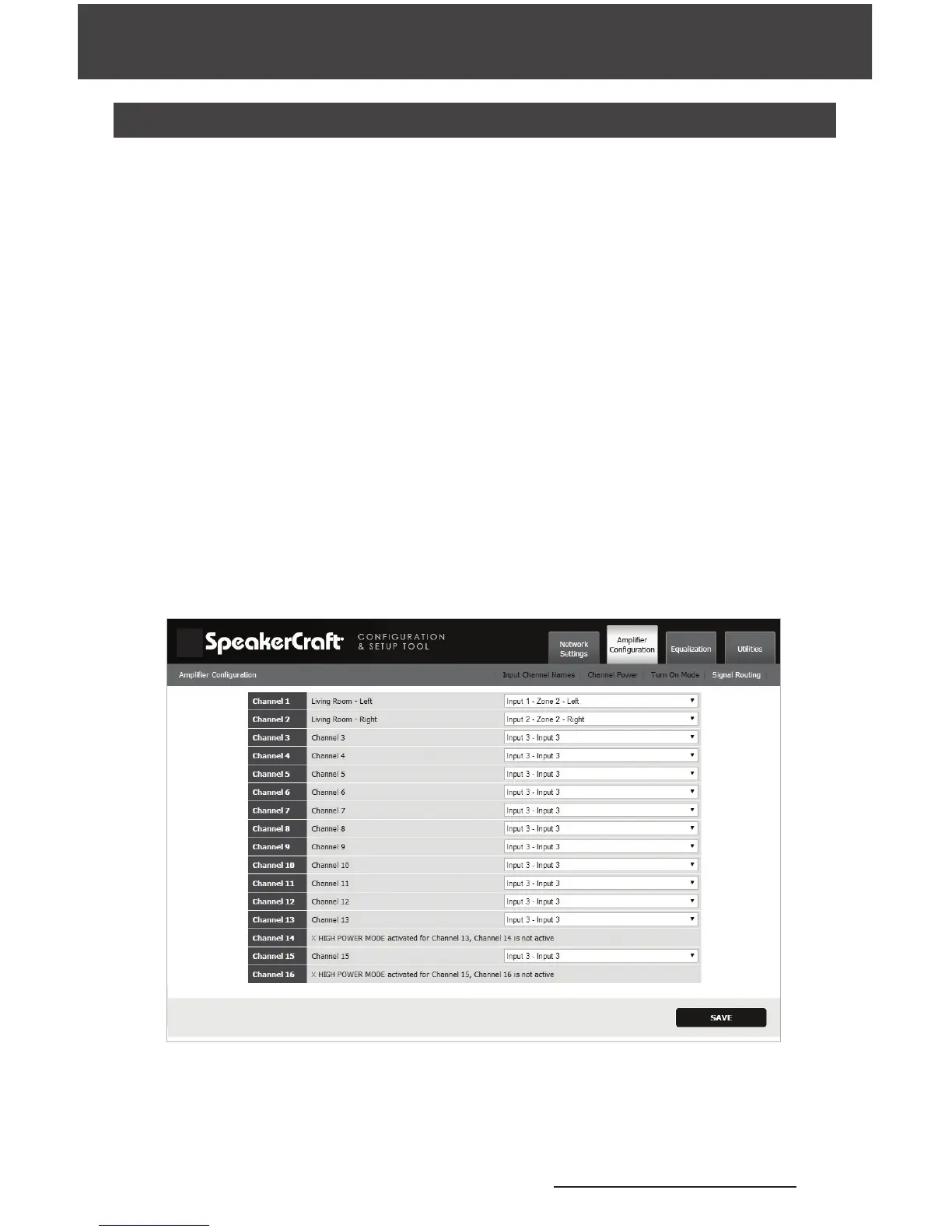

FIGURE 12
