7

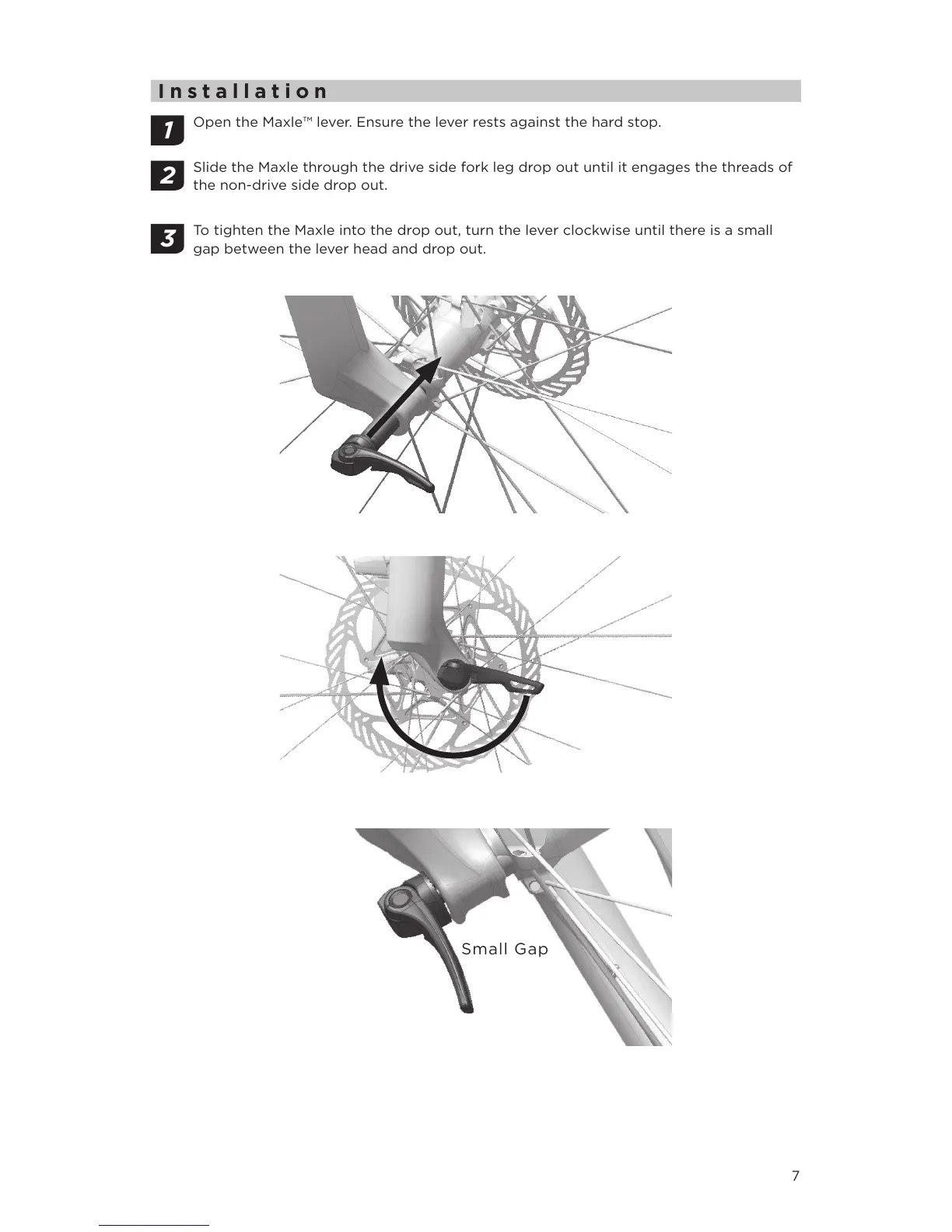

I nstallation
1
Open the Maxle™ lever. Ensure the lever rests against the hard stop.
2
Slide the Maxle through the drive side fork leg drop out until it engages the threads of
the non-drive side drop out.
3
To tighten the Maxle into the drop out, turn the lever clockwise until there is a small
gap between the lever head and drop out.
Small Gap
