11. FORWARD SHOCK EYE
OO: FORWARD SHOCK EYE BOLT
M10 x 15 L

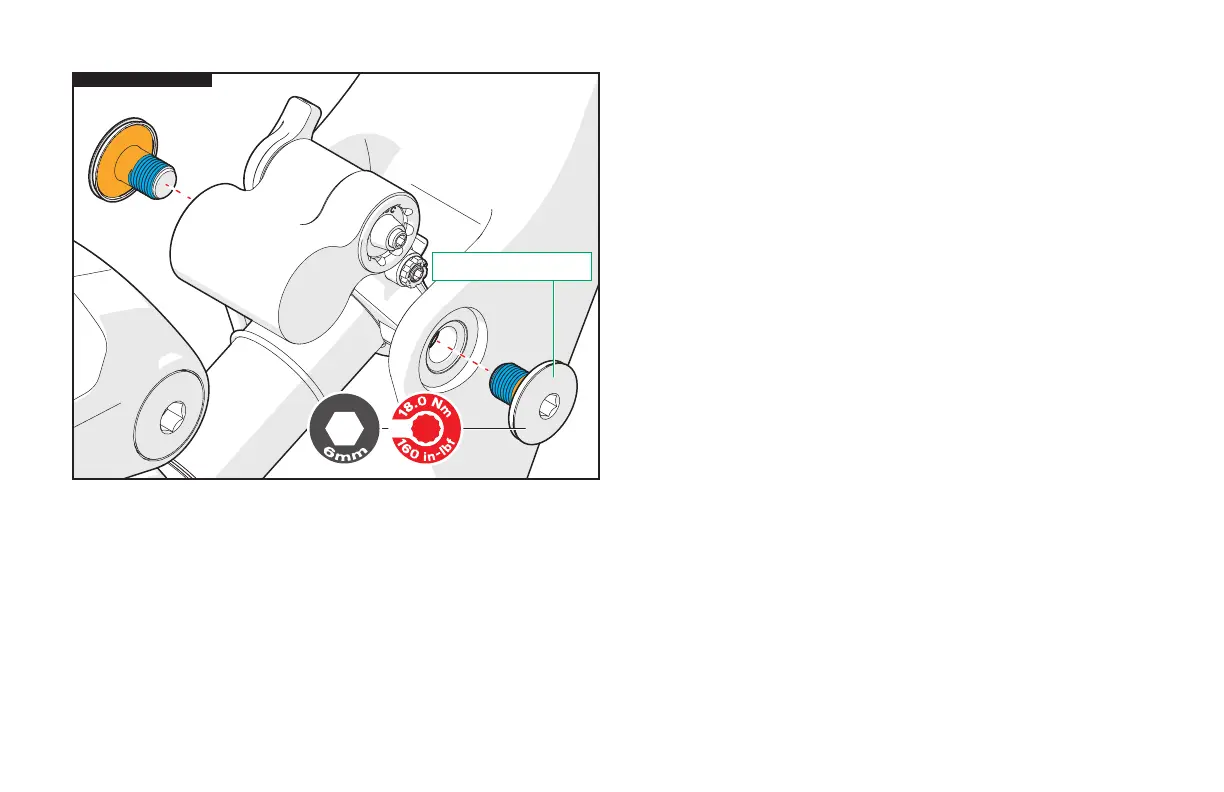

 Grease, then install the forward shock eye bolts (x2) OO into the forward shock eye.
 Torque the pivot bolts to the specs listed below and on P.6, in the following order:
• Z/AA: Main pivot axle/bolt (160 in-lbf / 18 Nm. Already torqued at time of installation)
• BB: Main pivot wedge bolt (62 in-lbf / 7 Nm. Already torqued at time of installation)
• CC: Upper link @ seat tube (177 in-lbf / 20 Nm)
• DD/EE: Mid link @ lower link (160 in-lbf / 18 Nm)
• GG/HH: Mid link @ upper link (106 in-lbf / 12 Nm)
• I I: Dropout (160 in-lbf / 18 Nm)
• JJ/KK: Upper link @ Seatstay (106 in-lbf / 12 Nm)
• OO: Forward shock eye (160 in-lbf / 18 Nm)
• NN: Rear shock eye (160 in-lbf / 18 Nm)
