6. INTERNAL ROUTING
All housings are routed internally through integrated frame and chainstay tubes.
Rear brake and shifter housings should be routed starting at the rearward chainstay housing
ports until they exit the chainstay ports near the main pivot. The housings then go directly
into the corresponding housing ports on the down tube until the exit at the head tube.
Dropper post housing routing is easiest when starting at the head tube. The integrated
housing tube will guide the housing up into the seat tube until it exits the top of the seat tube.
There are no cable guides needed on the Enduro frames.
7. SWAT BIKE EQUIPMENT
Enduro FSR frames are compatible with certain SWAT (Storage, Water, Air, Tools)
components. SWAT components are listed below:
7.1. SWAT CC
The SWAT CC (Conceal Carry) tool includes the top cap, chain tool and custom EMT
mini tool that fits inside the steerer tube. Refer to the SWAT CC User Manual for assembly
instructions.
7.2. SWAT DOWN TUBE STORAGE
The SWAT Down Tube Storage is a pair of soft wraps designed to contain a tube, pump
and two CO2 cartridges. The wraps fit inside the down tube, through an access port at the
base of the down tube to store essentials (Carbon models only).
The down tube SWAT cavity has a “bulkhead” device to block off the lower part of the
down tube. The bulkhead can be positioned in the down tube by slightly loosening the
down tube protector upper bolt, sliding the bulkhead forward or backward, then tightening
the down tube protector bolt to 7 in-lbf / 0.8 Nm.

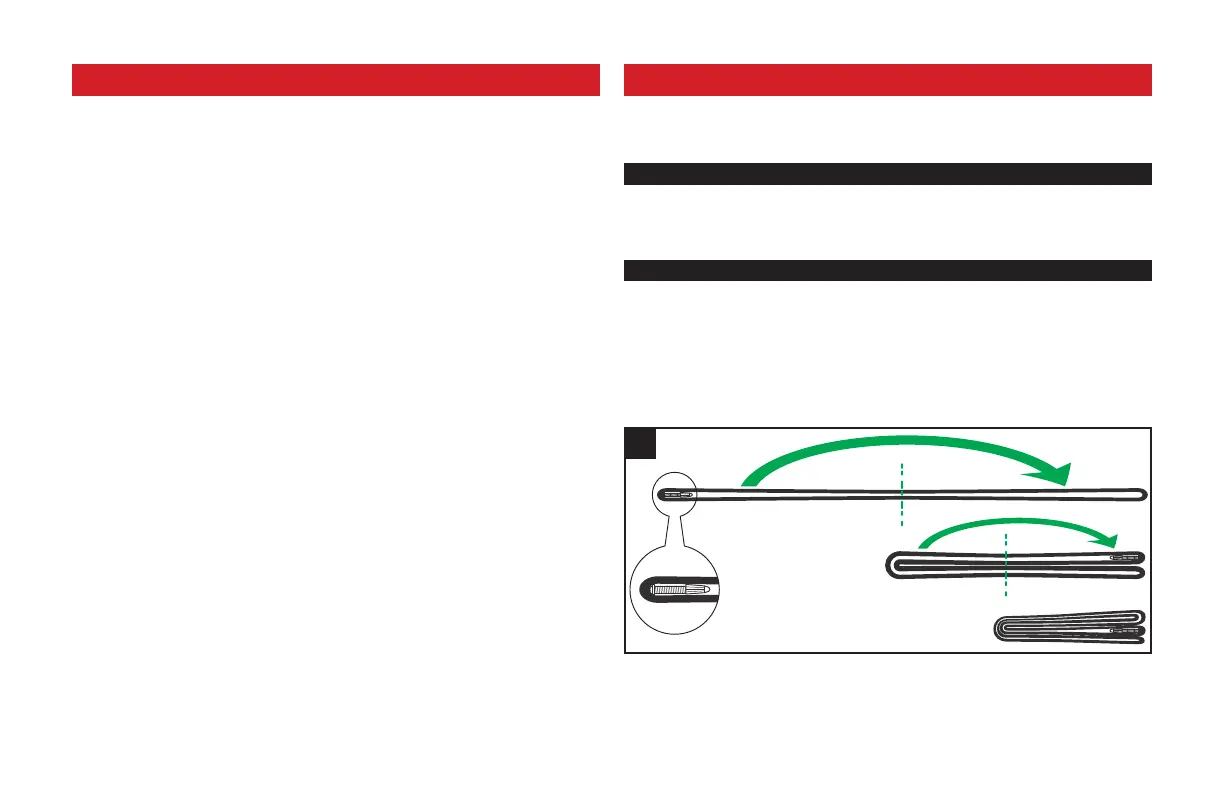

Fold tube over twice
1
