Specialized Levo - 9. LEVO FSR FRAME LINKAGE ASSEMBLY

15
9. LEVO FSR
FRAME LINKAGE ASSEMBLY

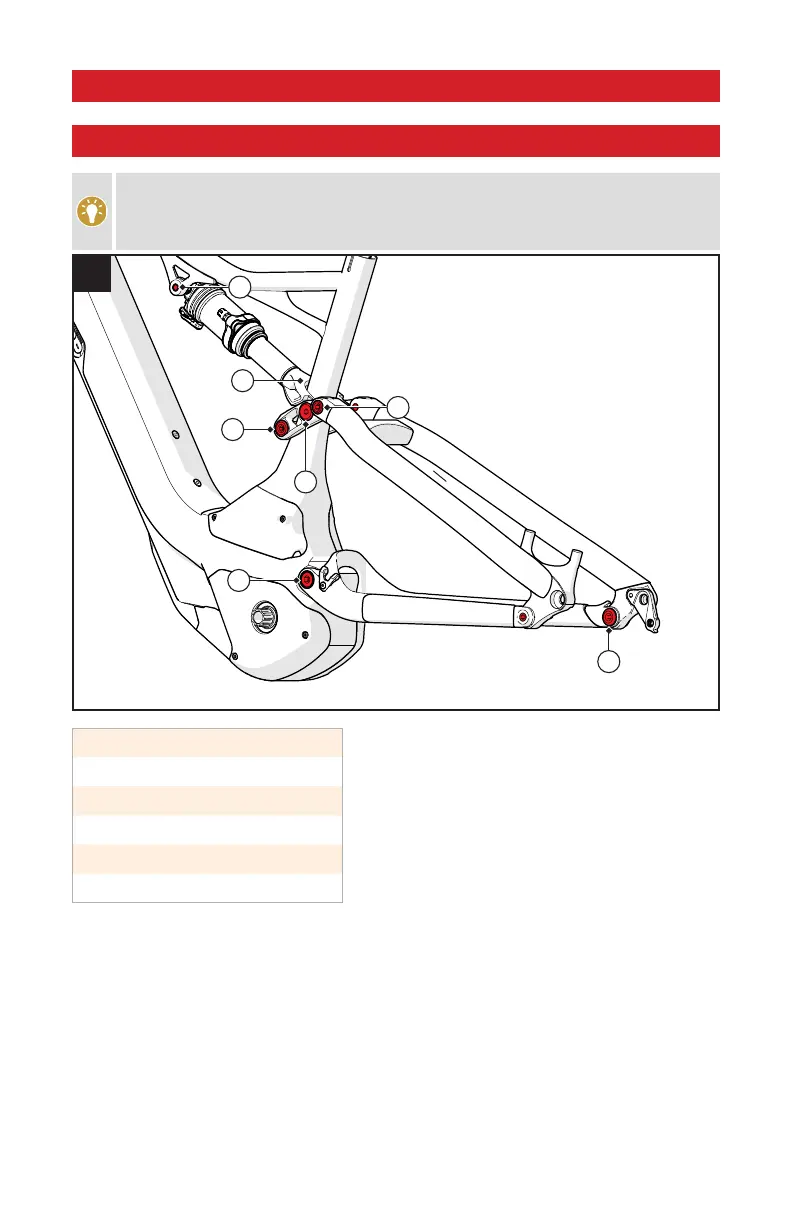

Specialized recommends following a specific order when assembling the rear triangle pivot
locations of FSR suspension bicycle models (fig.1). Assembling the upper or lower pivots of the
seatstay as a last step before installingt he rear shock makes it easier to align the parts and hold
the washers in place.
1
A
B
C
C
D
E
F
A. Main (BB) Pivot
B. S-Link @ Frame
C. Horst link or S-Link @ seatstay pivot
D. Lower shock @ shock extension
E. Shock extension pivot
F. Upper shock eye
